Toyota Liteace
1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe
Discontinued model
Data version 1980-01

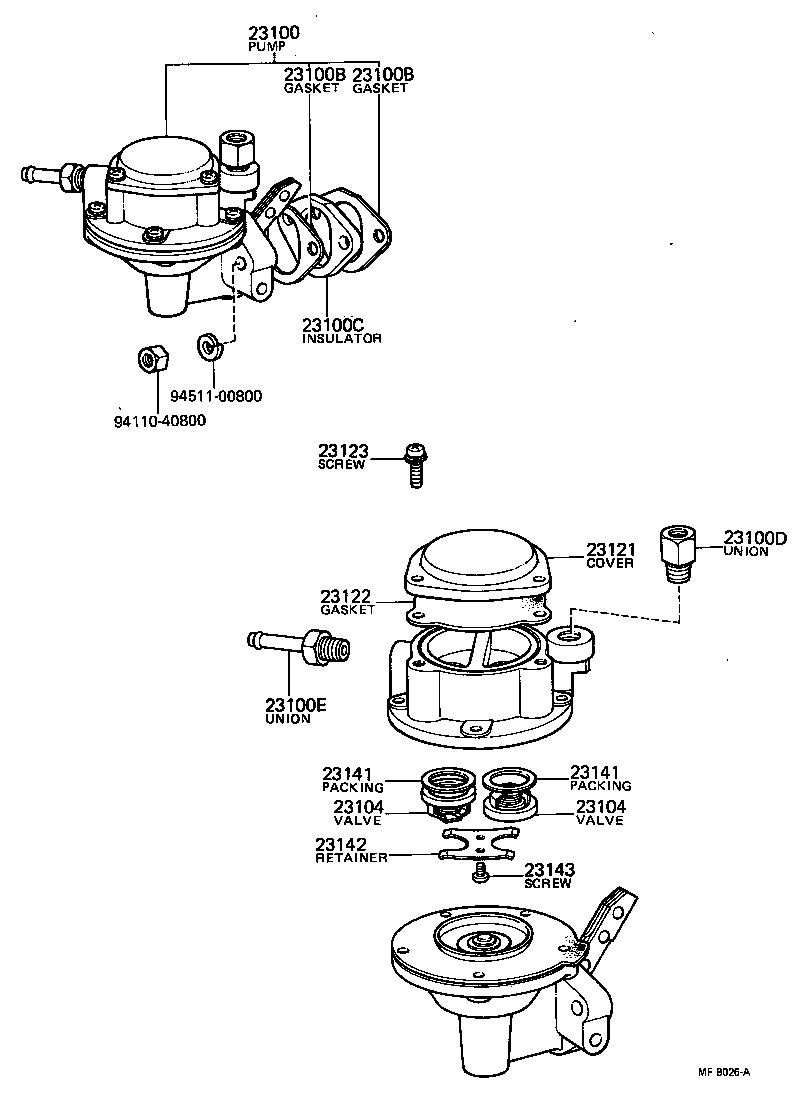

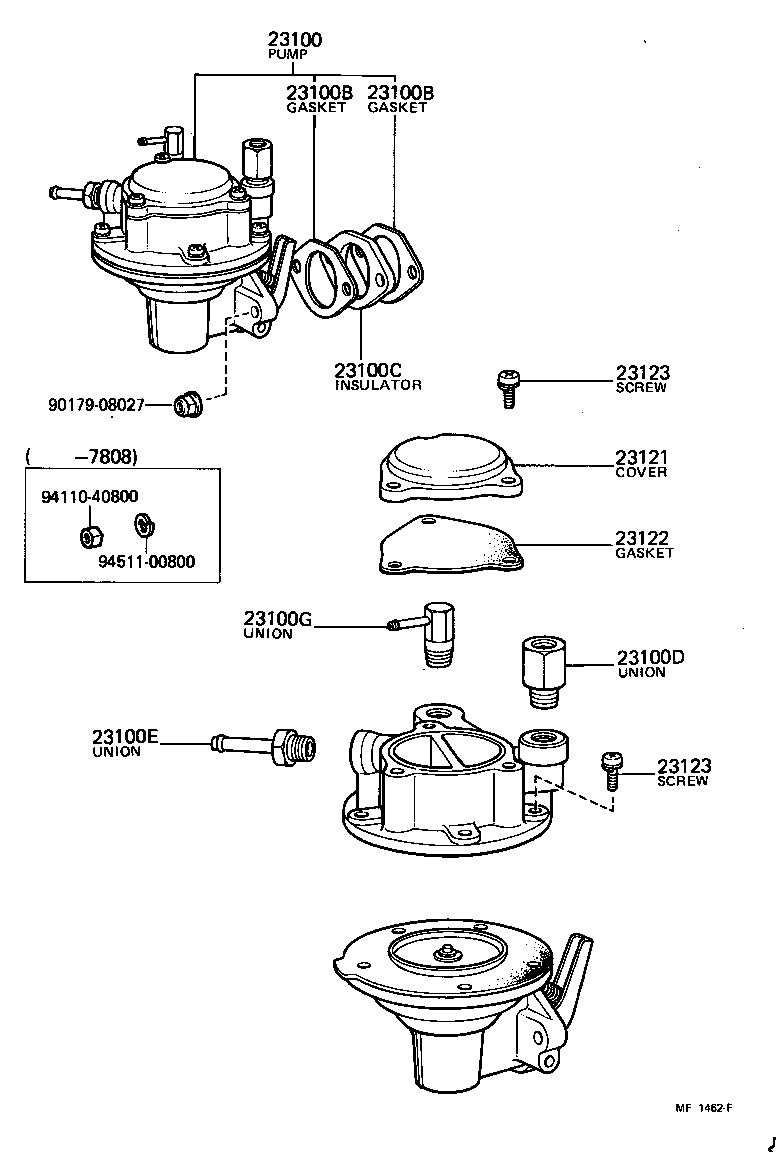

Fuel Pump & Pipe
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23100 | Pump Assy, Fuel |
| 23100B | Gasket, Fuel Pump |
| 23100C | Insulator, Fuel Pump |
| 23100D | Union, Nipple(FOR FUEL OUTLET) |
| 23100E | Union, Nipple(FOR FUEL INLET) |
| 23100G | Union, Nipple(FOR FUEL RETURN HOSE) |
| 23100K | Pump Kit, Fuel |
| 23103 | Diaphragm Sub-assy |
| 23104 | Valve Sub-assy |
| 23105 | Arm Sub-assy, Rocker |
| 23121 | Cover, Fuel Pump |
| 23122 | Gasket, Fuel Pump Cover |
| 23123 | Screw, Cover Set, NO.1 |
| 23131 | Spring, Diaphragm(FOR FUEL PUMP) |
| 23133 | Packing, Oil Seal(FOR FUEL PUMP) |
| 23134 | Retainer, Oil Seal Packing(FOR FUEL PUMP) |
| 23141 | Packing, Valve |
| 23142 | Retainer, Valve |
| 23143 | Screw, Valve Retainer Set |
| 23151 | Link, Rocker Arm |
| 23152 | Spring, Rocker Arm |
| 23153 | Pin, Rocker Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
