Toyota Liteace
1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe
Discontinued model
Data version 1980-01

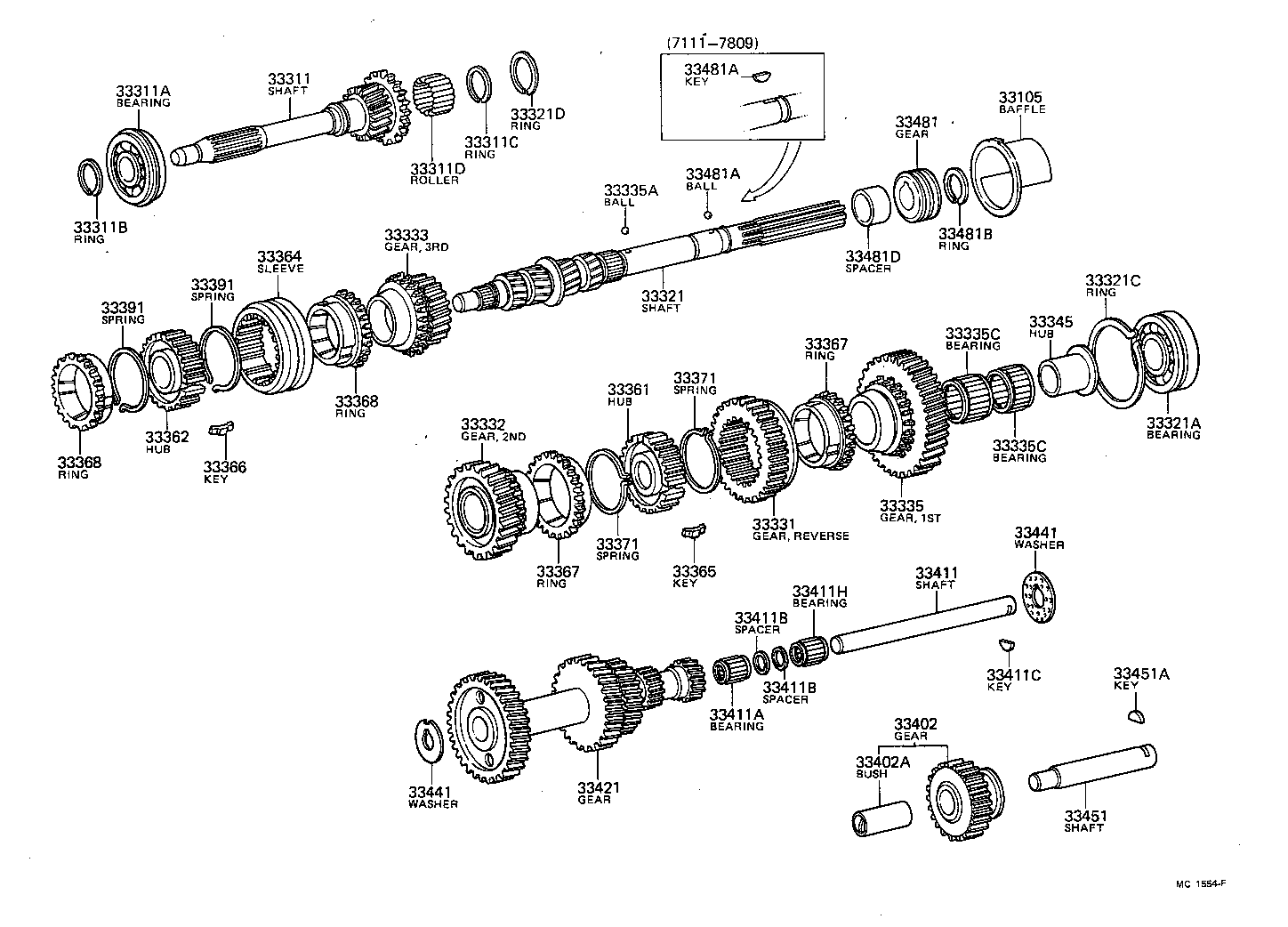

Transmission Gear (MTM)
50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33105 | Baffle Sub-assy, Extension Housing Oil |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311B | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311C | Ring, Hole Snap (FOR NEEDLE ROLLER) |
| 33311D | Bearing, Input Shaft |
| 33321 | Shaft, Output |
| 33321A | Bearing (FOR OUTPUT SHAFT REAR) |
| 33321B | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321C | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321D | Ring, Shaft Snap (FOR CLUTCH HUB SET) |
| 33321E | Spacer (FOR 1ST GEAR TO BEARING) |
| 33321F | Ring, Shaft Snap (FOR CLUTCH HUB TO 1ST GEAR) |
| 33321J | Pin, Straight (FOR OUTPUT SHAFT) |
| 33331 | Gear, Reverse |
| 33332 | Gear, 2ND |
| 33333 | Gear, 3RD |
| 33335 | Gear, 1ST |
| 33335A | Ball, 1ST Shift Restrict |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33341 | Washer, 2ND & 3RD Gear Thrust |
| 33343 | Bush, 3RD & 2ND Gear |
| 33345 | Bush, 1ST Gear |
| 33346 | Bush, 2ND Gear |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33368 | Ring, Synchronizer, NO.2 |
| 33371 | Spring, Synchromesh Shifting Key, NO.1 |
| 33391 | Spring, Synchromesh Shifting Key, NO.2 |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33402A | Bush OR Bearing (FOR REVERSE IDLER GEAR) |
| 33411 | Countershaft |
| 33411A | Bearing OR Roller(FOR COUNTER GEAR FRONT) |
| 33411B | Spacer(FOR COUNTER GEAR BEARING) |
| 33411C | Key, Woodruff(FOR COUNTER GEAR SHAFT) |
| 33411H | Bearing OR Roller(FOR COUNTER GEAR REAR) |
| 33421 | Gear, Counter |
| 33421A | Tube(FOR COUNTER GEAR) |
| 33435 | Washer, Counter Gear Case Side Thrust |
| 33441 | Washer, Counter Gear Side Thrust, NO.1 |
| 33451 | Shaft, Reverse Idler Gear |
| 33451A | Key, Woodruff (FOR REVERSE IDLER GEAR SHAFT) |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481A | Key OR Ball, Speedometer Drive Gear (MTM) |
| 33481B | Ring OR Spacer (FOR MTM SPEEDOMETER DRIVE GEAR) |
| 33481D | Spacer (FOR SPEEDOMETER DRIVE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
