Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

35 part groups · 2 illustrations

Illustrations

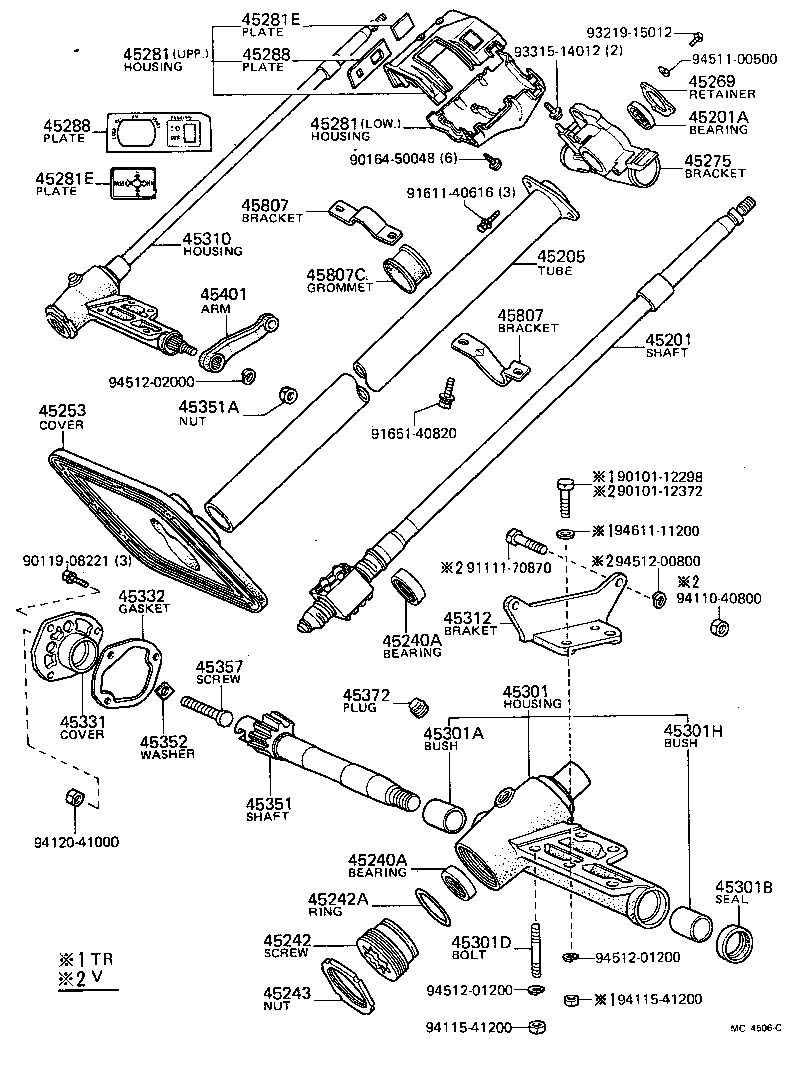

Figure MC1026H MC1026H 1971-05 → 1976-10 Figure MC4506C MC4506C 1976-10 → 1979-09

Part groups

PNCDescription
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45215 Collar, Main Shaft Bearing Thrust
45240A Bearing(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45242A Ring, O(FOR WORM BEARING ADJUSTING SCREW)
45243 Nut, Worm Bearing Adjusting Screw Lock
45253 Cover, Steering Column Hole
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45275C Bearing(FOR STEERING COLUMN UPPER BRACKET)
45281 Housing, Steering Column
45281E Plate, Safety Caution
45288 Plate, Steering Column Cover
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45301D Bolt, Stud(FOR STEERING GEAR HOUSING)
45301H Bush OR Bearing, Sector Shaft, NO.2
45310 Housing Assy, Steering Gear
45312 Bracket, Steering Gear Housing
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45392 Cover, Steering Gear Housing
45401 Arm Sub-assy, Pitman
45807 Bracket Sub-assy, Steering Column Upper Support
45807C Grommet(FOR STEERING COLUMN CLAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
