Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

29 part groups · 2 illustrations

Illustrations

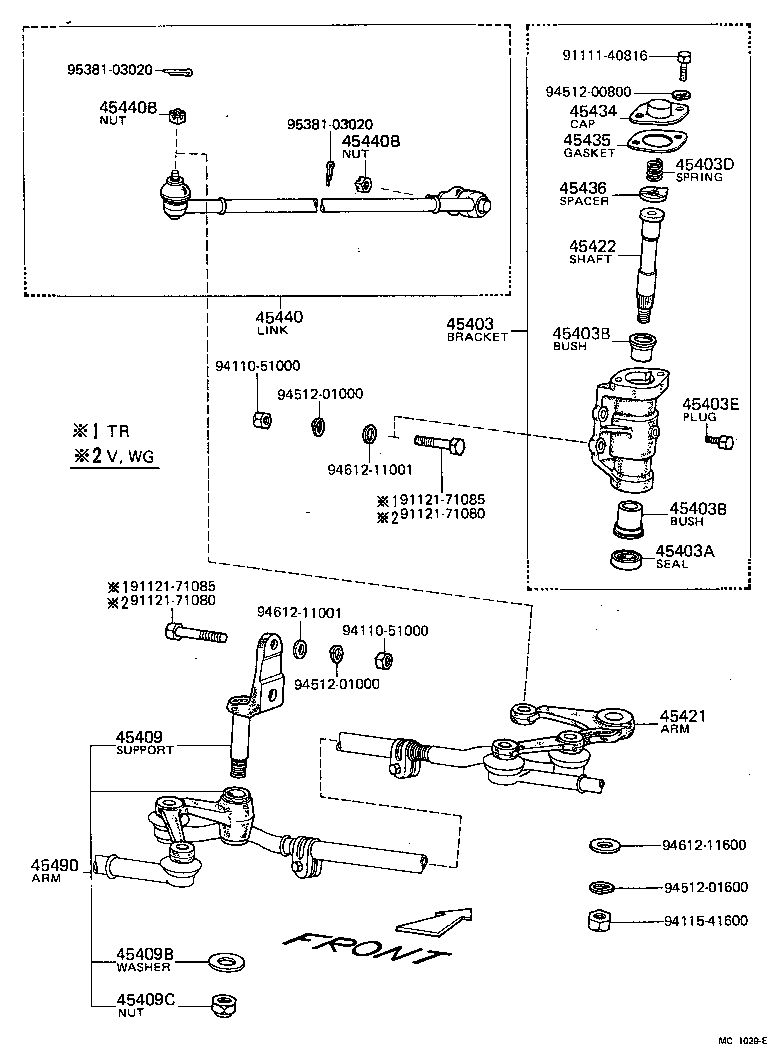

Figure MC1028D MC1028D 1971-05 → 1979-09 Figure MC1029E MC1029E 1971-05 → 1979-09

Part groups

PNCDescription
45044 End Sub-assy, Steering Relay Rod, RH
45045 End Sub-assy, Steering Relay Rod, LH
45046A Nut, Castle(FOR TIE ROD END)
45403 Bracket Sub-assy, Center Arm
45403A Seal, Oil(FOR CENTER ARM BRACKET)
45403B Bush(FOR CENTER ARM BRACKET)
45403D Spring, Compression(FOR CENTER ARM SHAFT SET)
45403E Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT)
45406A Nut, Castle(FOR TIE ROD)
45409 Support Sub-assy, Idler Arm
45409B Washer, Plate(FOR IDLER ARM RUBBER BUSH)
45409C Nut(FOR IDLER ARM SUPPORT)
45421 Arm, Steering Center
45422 Shaft, Center Arm
45434 Cap, Center Arm Bracket
45435 Gasket, Center Arm Bracket Cap
45436 Seat, Center Arm Shaft
45440 Link Assy, Steering Drag
45440B Nut, Castle(FOR STEERING DRAG LINK)
45450 Rod Assy, Steering Relay
45450A Nut, Castle(FOR RELAY ROD)
45450D Clamp, Steering Relay Rod End
45451 Rod, Steering Relay
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45490 Arm Assy, Steering Idler
45611 Arm, Steering Knuckle, RH
45611A Bolt, Knuckle Stopper
45612 Arm, Steering Knuckle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
