Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

11 part groups · 3 illustrations

Illustrations

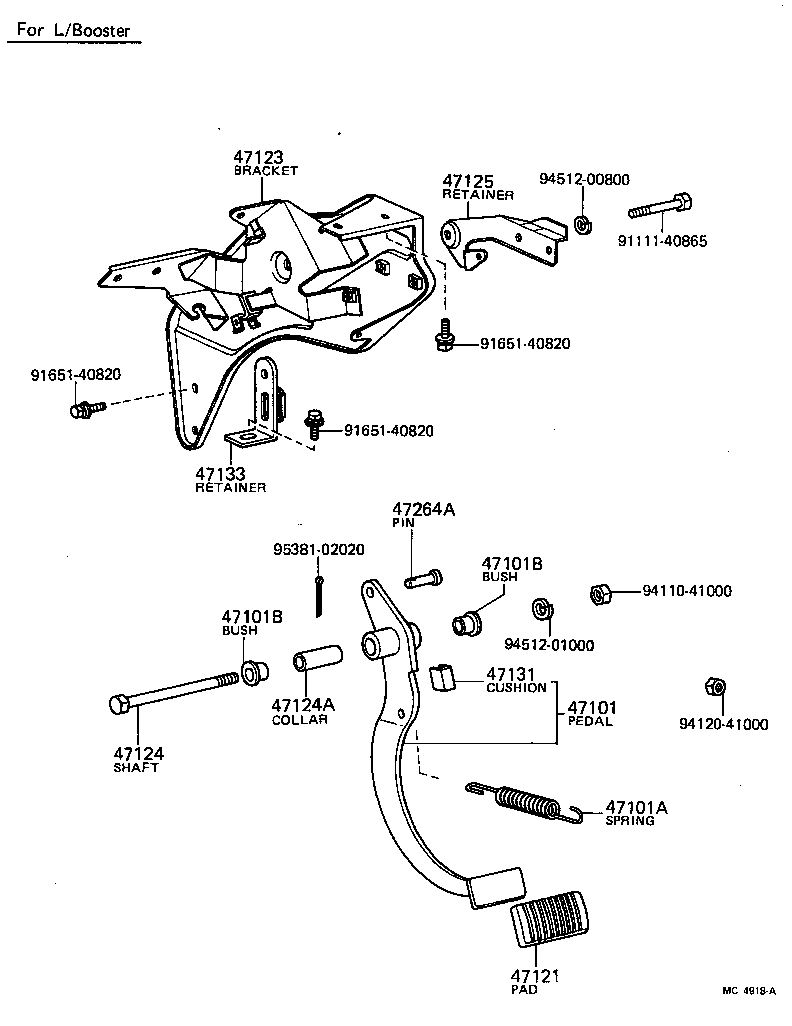

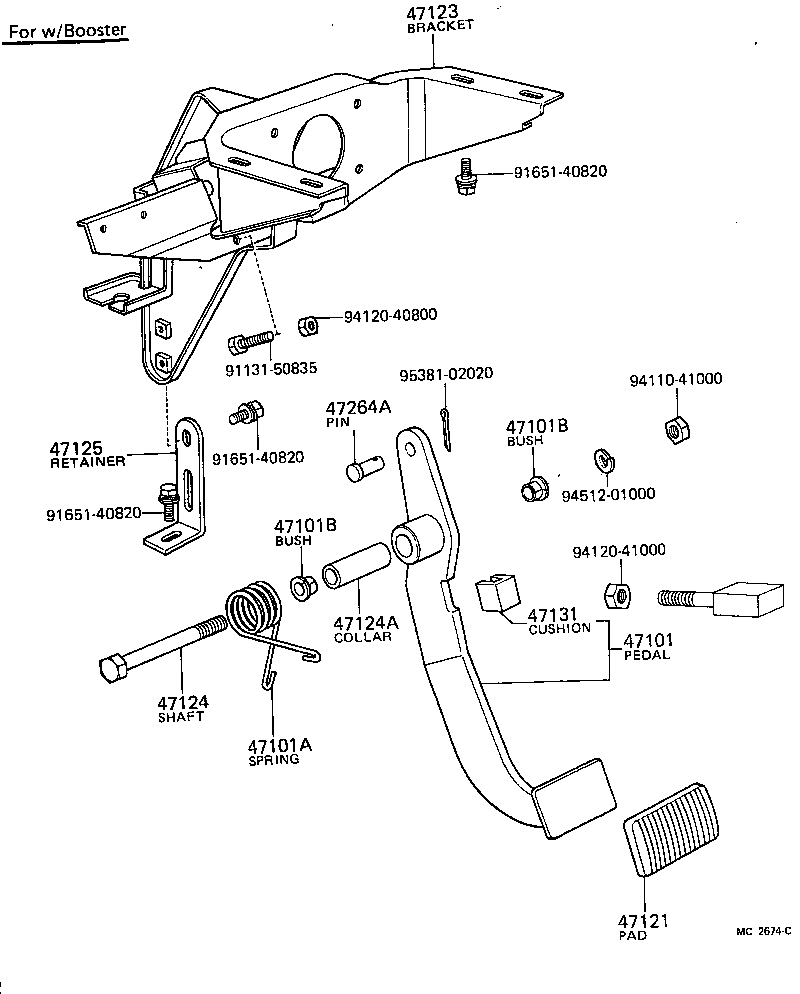

Figure MC1031C MC1031C 1971-05 → 1973-09 Figure MC4918A MC4918A 1973-09 → 1979-09 Figure MC2674C MC2674C 1973-09 → 1975-11

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101A Spring(FOR BRAKE PEDAL RETURN)
47101B Bush(FOR BRAKE PEDAL)
47121 Pad, Brake Pedal
47123 Bracket, Brake Pedal
47124 Shaft, Brake Pedal
47124A Collar(FOR BRAKE PEDAL SHAFT)
47125 Retainer, Brake Pedal Bracket
47131 Cushion(FOR STOP LAMP SWITCH)
47133 Retainer, Pedal Bracket, Lower
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
