Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 2 illustrations

Illustrations

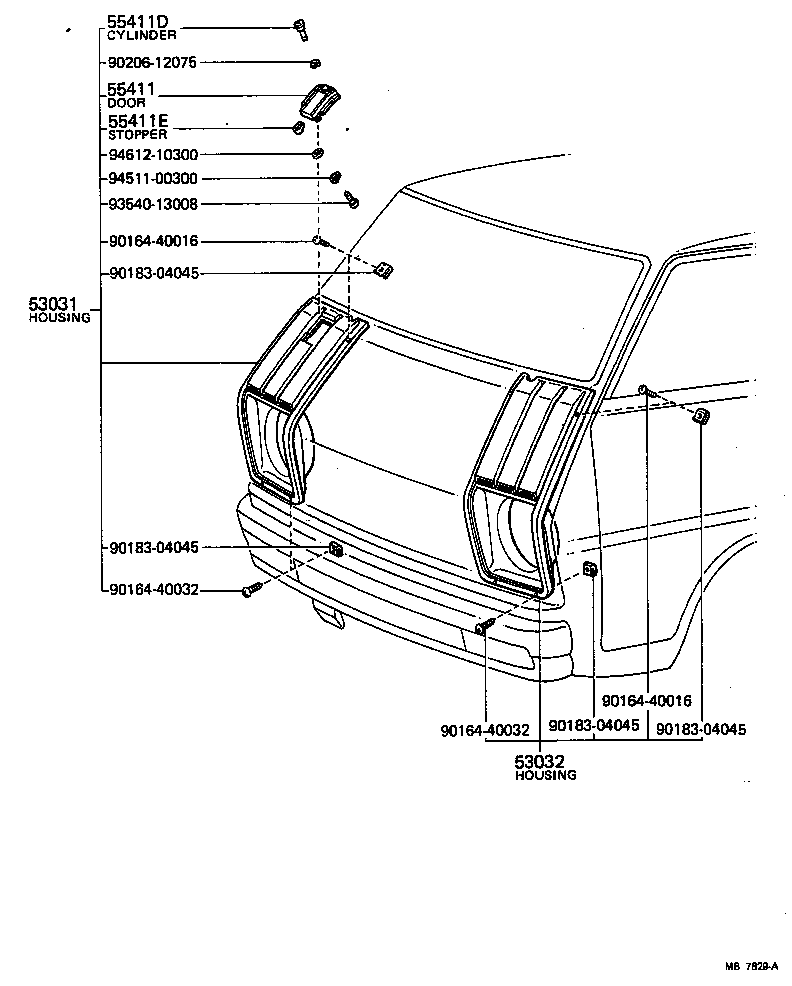

Figure MB1831E MB1831E 1971-05 → 1978-02 Figure MB7829A MB7829A 1978-02 → 1979-09

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53131B Weatherstrip, Headlamp Ornament
53131D Weatherstrip, Headlamp Ornament
55411 Door, Reservoir Service Hole, RH
55411B Pin, Reservoir Service Hole Cover Hinge
55411C Weatherstrip, Reservoir Service Hole Cover
55411D Cylinder, Reservoir Service Hole Cover Lock
55411E Stopper, Reservoir Service Hole Cover Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
