Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

12 part groups · 3 illustrations

Illustrations

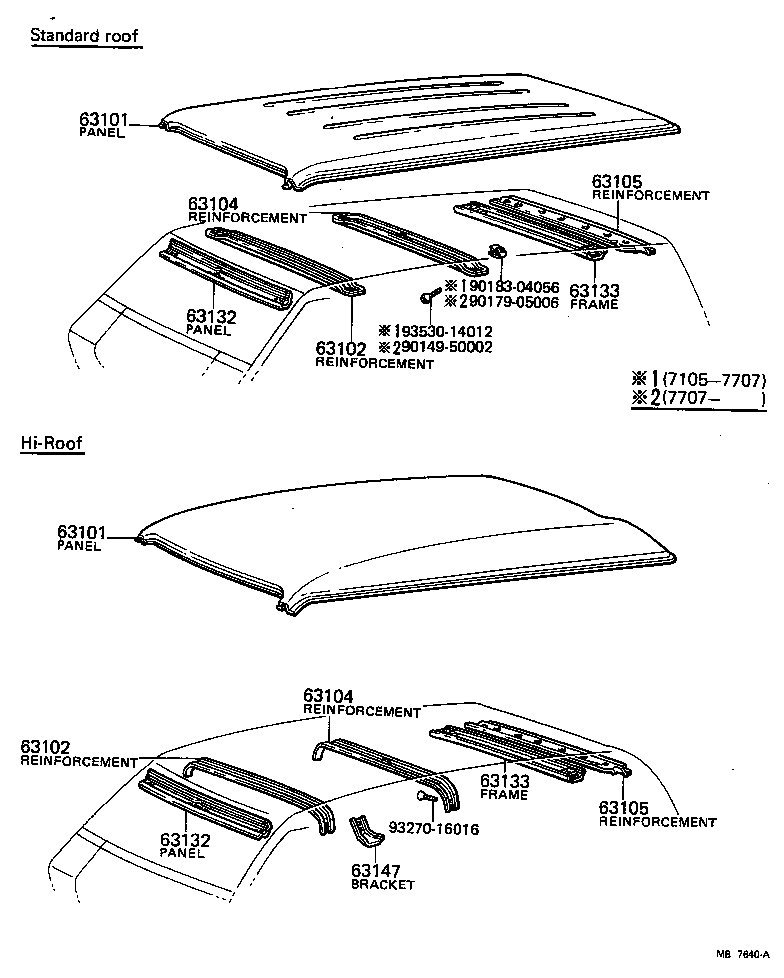

Figure MB1399H MB1399H 1971-05 → 1974-08 Figure MB1399H MB1399H 1976-07 → 1979-09 Figure MB7640A MB7640A 1971-05 → 1979-09

Part groups

PNCDescription
63101 Panel Sub-assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63132 Panel, Windshield Header, Inner
63133 Frame, Back Window Opening, Upper
63147 Bracket, Roof Panel Reinforcement
64100 Panel Assy, Back, Outer
64122A Baffle, Dust Rear Body
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
