Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

15 part groups · 3 illustrations

Illustrations

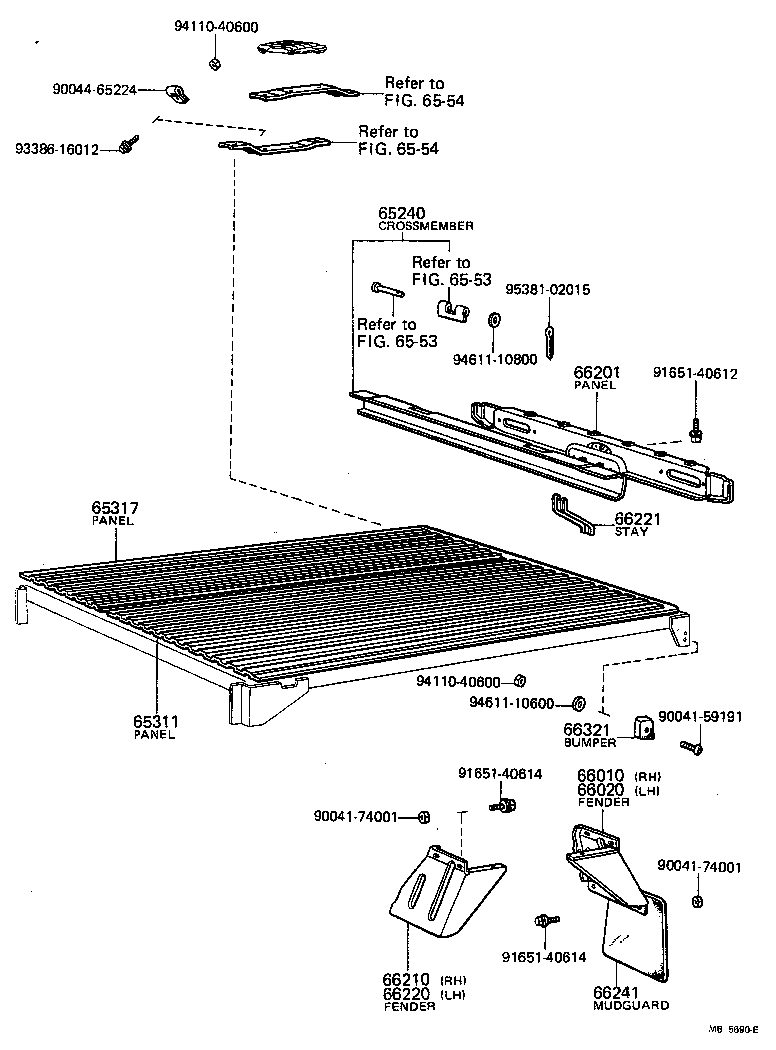

Figure MB5689 MB5689 1971-05 → 1974-08 Figure MB5690E MB5690E 1971-05 → 1974-08 Figure MB5690E MB5690E 1976-07 → 1979-09

Part groups

PNCDescription
65203 Bracket Sub-assy, Gate Bumper, RH
65204 Bracket Sub-assy, Gate Bumper, LH
65240 Crossmember, Rear Body Floor, Tail
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66201 Panel Sub-assy, Skirt, Rear
66210 Fender Assy, Rear Body, Front RH
66220 Fender Assy, Rear Body, Front LH
66221 Stay, Panel Skirt, Rear
66225 Support, Rear Mudguard, RH
66226 Support, Rear Mudguard, LH
66241 Mudguard, Rear
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
