Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

17 part groups · 3 illustrations

Illustrations

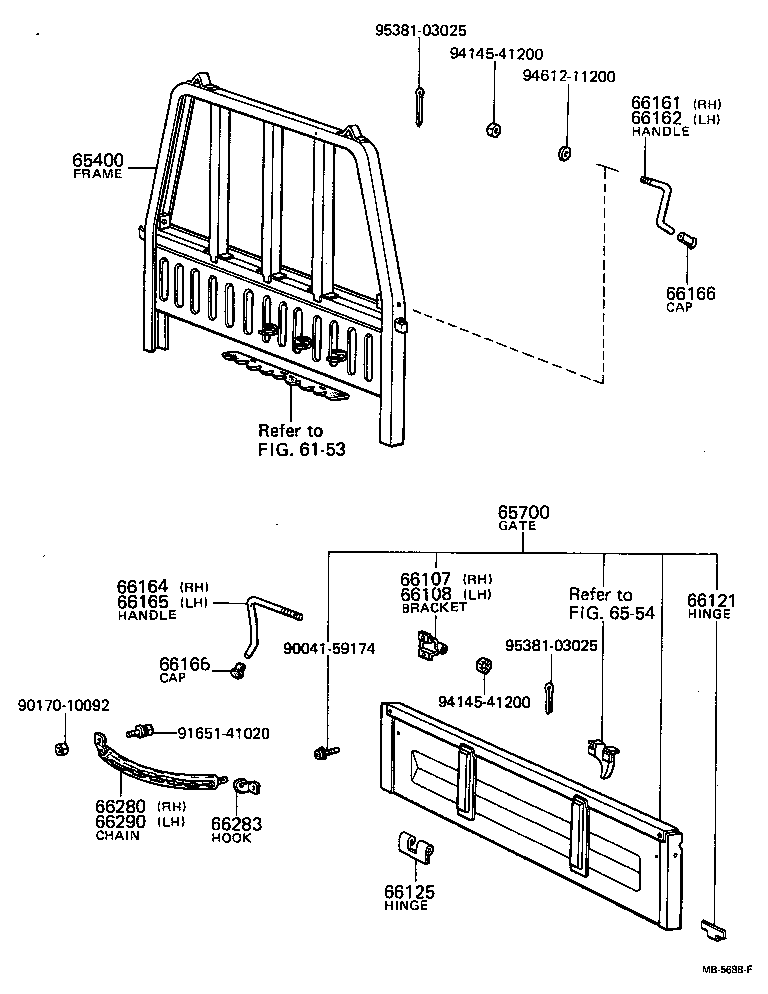

Figure MB5687F MB5687F 1971-05 → 1974-08 Figure MB5688F MB5688F 1971-05 → 1974-08 Figure MB5688F MB5688F 1976-07 → 1979-09

Part groups

PNCDescription
65400 Frame Assy, Rear Body Guard
65700 Gate Assy, Rear Body Tail
65737 Stop, Tail Gate
66107 Bracket Sub-assy, Tail Gate, RH
66108 Bracket Sub-assy, Tail Gate, LH
66110 Hinge Assy, Tail Gate
66121 Hinge, Tail Gate, Male
66125 Hinge, Tail Gate, Female
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66283 Hook, Tail Gate Chain Side
66290 Chain Assy, Tail Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
