Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separation Door Panel & Glass

12 part groups · 3 illustrations

Illustrations

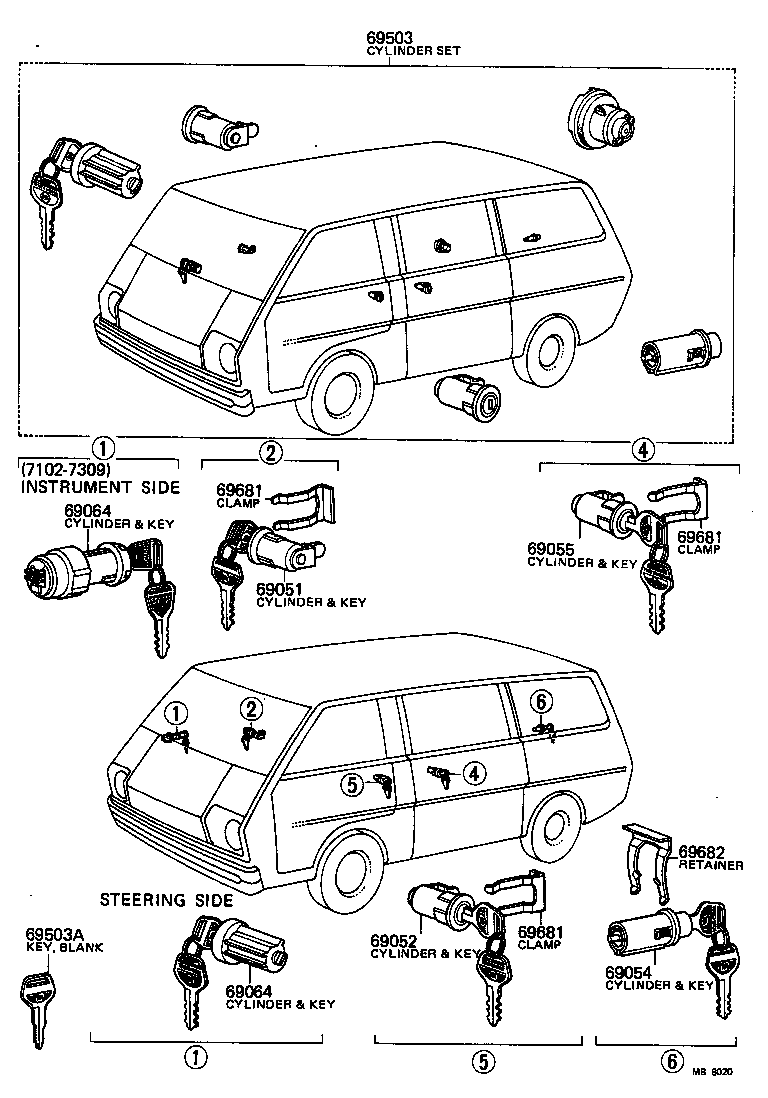

Figure MB3518B MB3518B 1971-05 → 1974-08 Figure MB3518B MB3518B 1976-07 → 1979-09 Figure MB8020 MB8020 1971-05 → 1979-09

Part groups

PNCDescription
66480 Cylinder Assy, Fuel Door
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053 Cylinder & Key Set, Fuel Inlet Lock
69054 Cylinder & Key Set, Back Door Lock
69055 Cylinder & Key Set, Rear Door Lock, LH
69064 Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69683 Clamp, Fuel Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
