Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

9 part groups · 2 illustrations

Illustrations

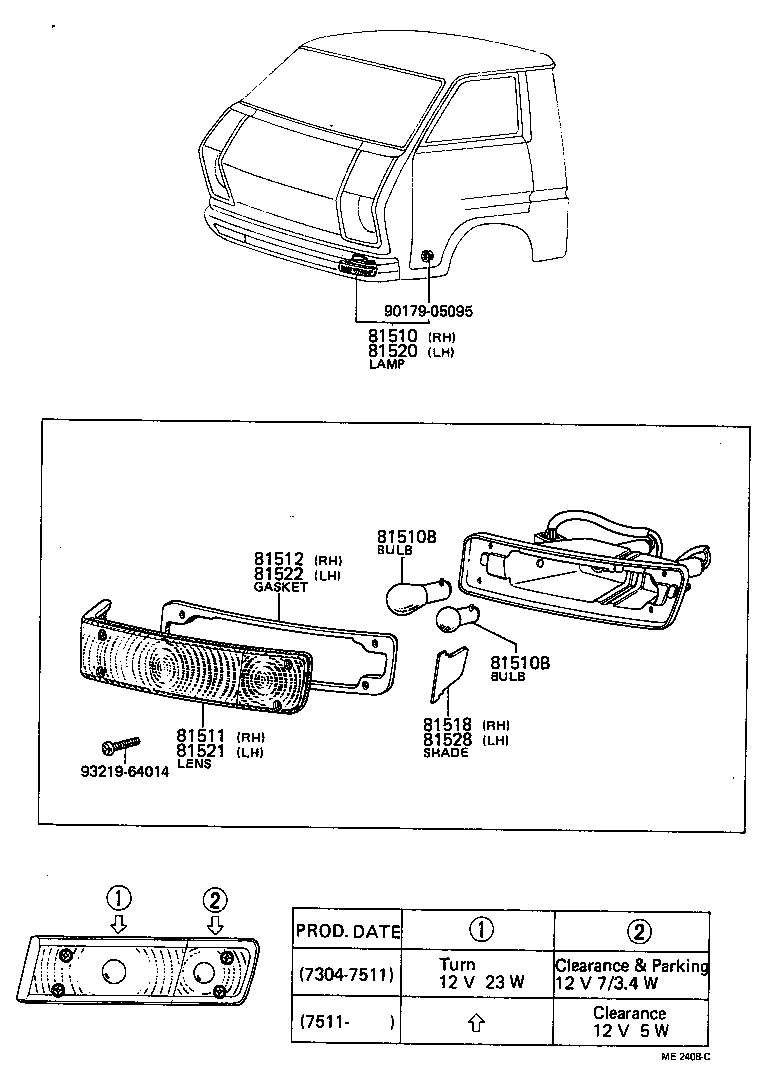

Figure ME0773D ME0773D 1971-05 → 1973-04 Figure ME2408C ME2408C 1973-04 → 1979-09

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81518 Shade, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81528 Shade, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
