Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 3 illustrations

Illustrations

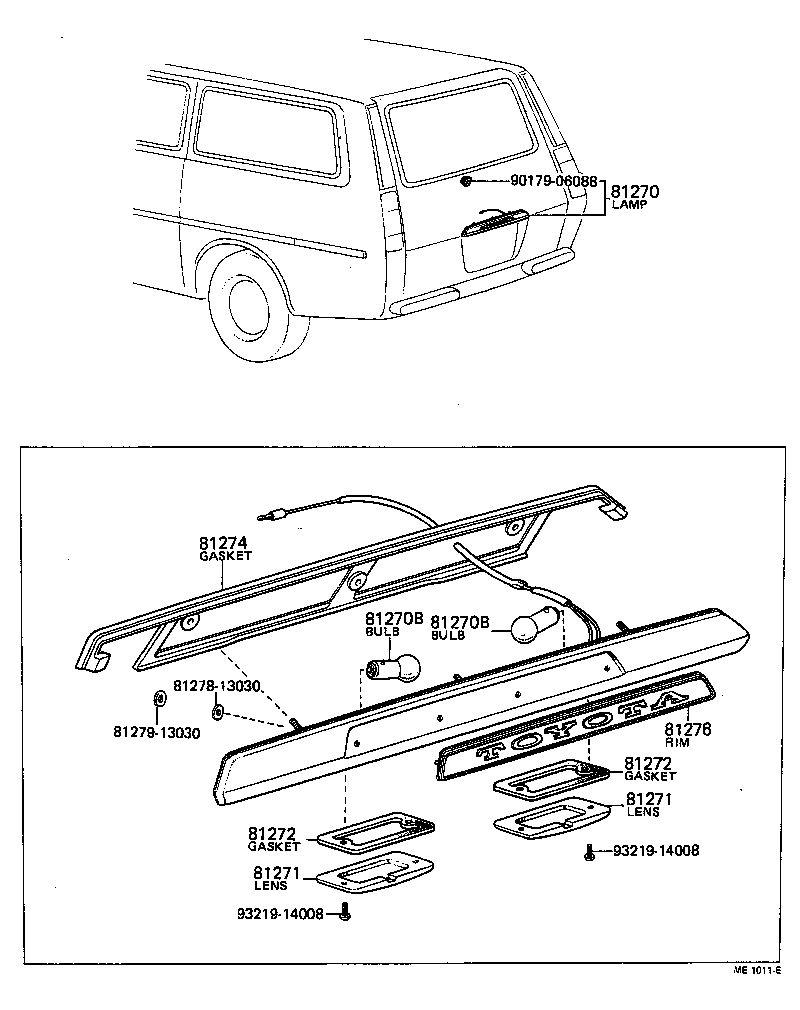

Figure ME6869 ME6869 1971-05 → 1974-08 Figure ME6869 ME6869 1976-07 → 1979-09 Figure ME1011E ME1011E 1971-05 → 1979-09

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81276 Rim, License Plate Lamp
81278 Cover, License Plate Lamp
81483 Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
