Toyota Liteace
1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe
Discontinued model
Data version 1980-01

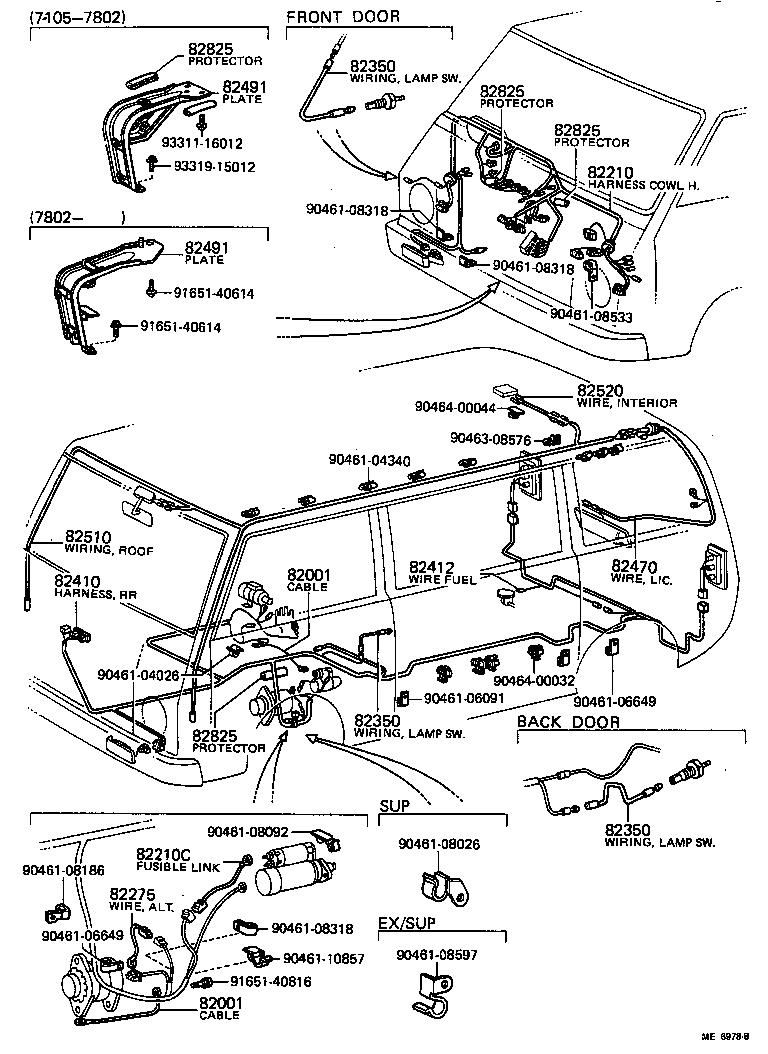

Wiring & Clamp
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82021 | Wiring Assy, Starter |
| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210C | Fusible Link |
| 82219 | Wire, Thermo Sensor |
| 82275 | Wire, Alternator |
| 82320 | Wire Assy, TO Horn |
| 82350 | Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82412 | Wire, Fuel Gage |
| 82470 | Wire Assy, License Lamp Feed |
| 82472 | Wire, License Lamp |
| 82491 | Plate, Wiring Harness Protector, NO.1 |
| 82510 | Wiring Assy, Roof |
| 82520 | Wire Assy, Interior Lamp Feed |
| 82825 | Protector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
