Toyota Liteace
1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe
Discontinued model
Data version 1980-01
Switch & Relay & Computer
40 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

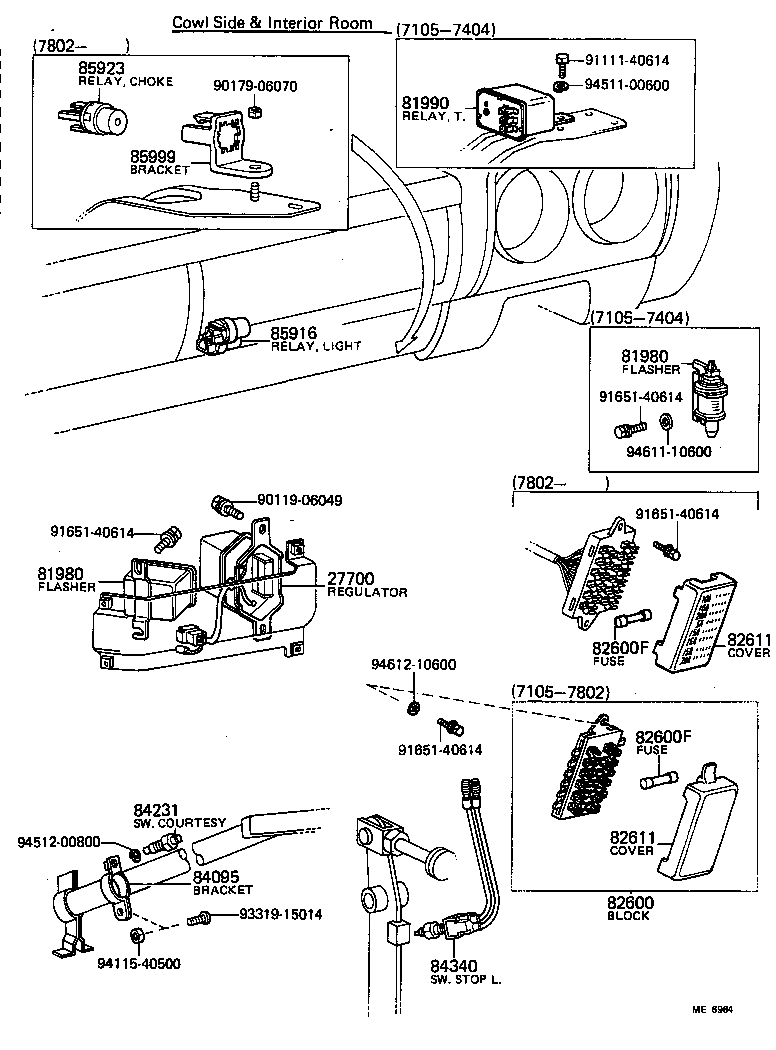

| 27700 | Regulator Assy, Generator |
| 81980 | Flasher Assy, Turn Signal |
| 81990 | Relay Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |

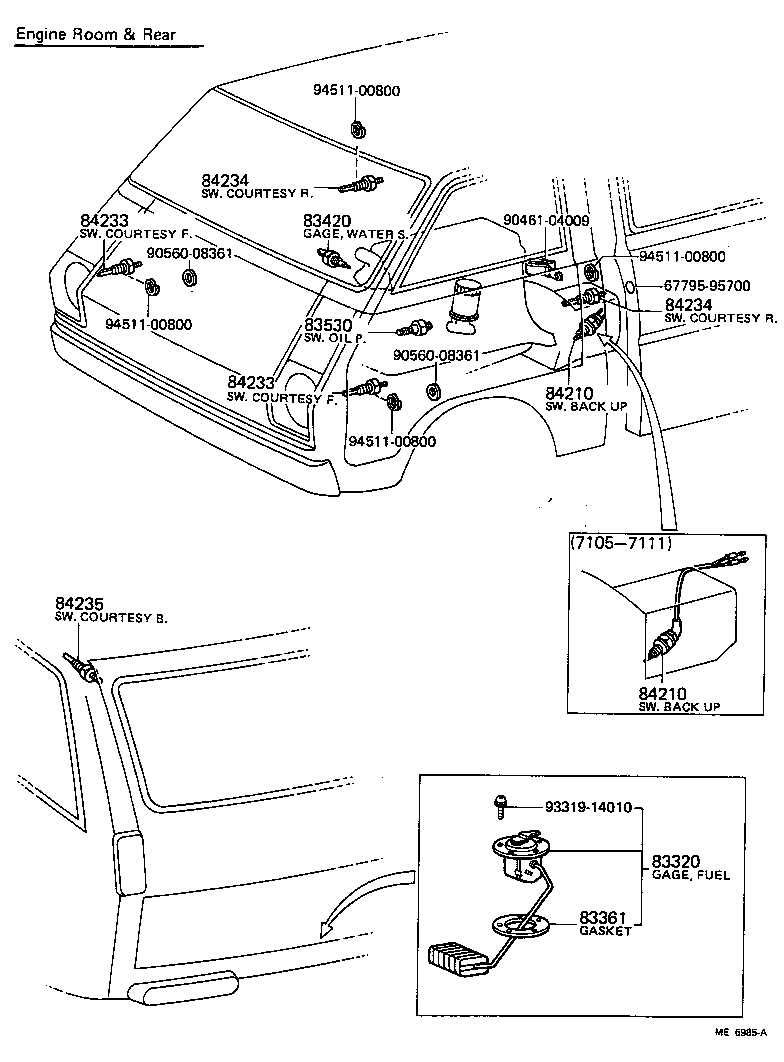

| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84095 | Bracket Sub-assy, Hand Brake Signal Switch |

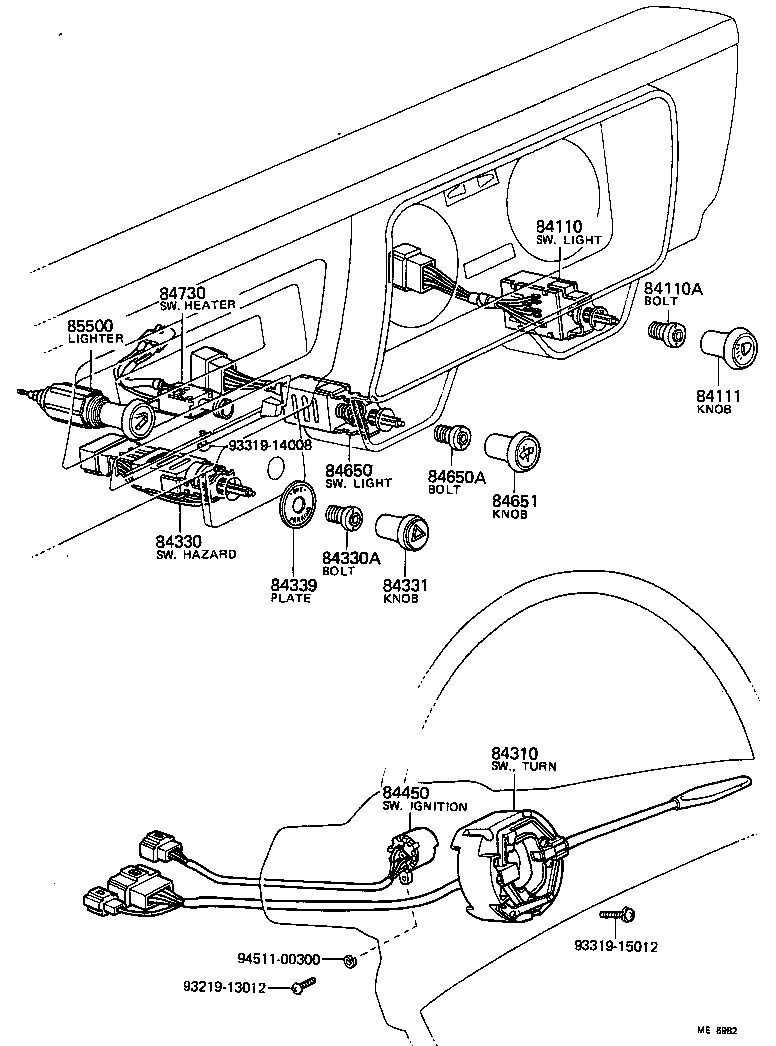

| 84110 | Switch Assy, Light Control, NO.1 |
| 84110A | Bolt OR Nut, Light Control Switch Set |
| 84111 | Knob, Light Control Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84231 | Switch Assy, Courtesy Lamp (FOR PARKING BRAKE) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330A | Bolt OR Nut, Hazard Warning Signal Switch Set |
| 84331 | Knob, Hazard Warning Signal Switch |
| 84335 | Switch Assy, Parking Lamp |
| 84339 | Plate, Parking Lamp Switch Caution |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84650 | Switch Assy, Windshield Wiper |
| 84650A | Bolt OR Nut, Windshield Wiper Switch Set |
| 84651 | Knob, Windshield Wiper Switch |

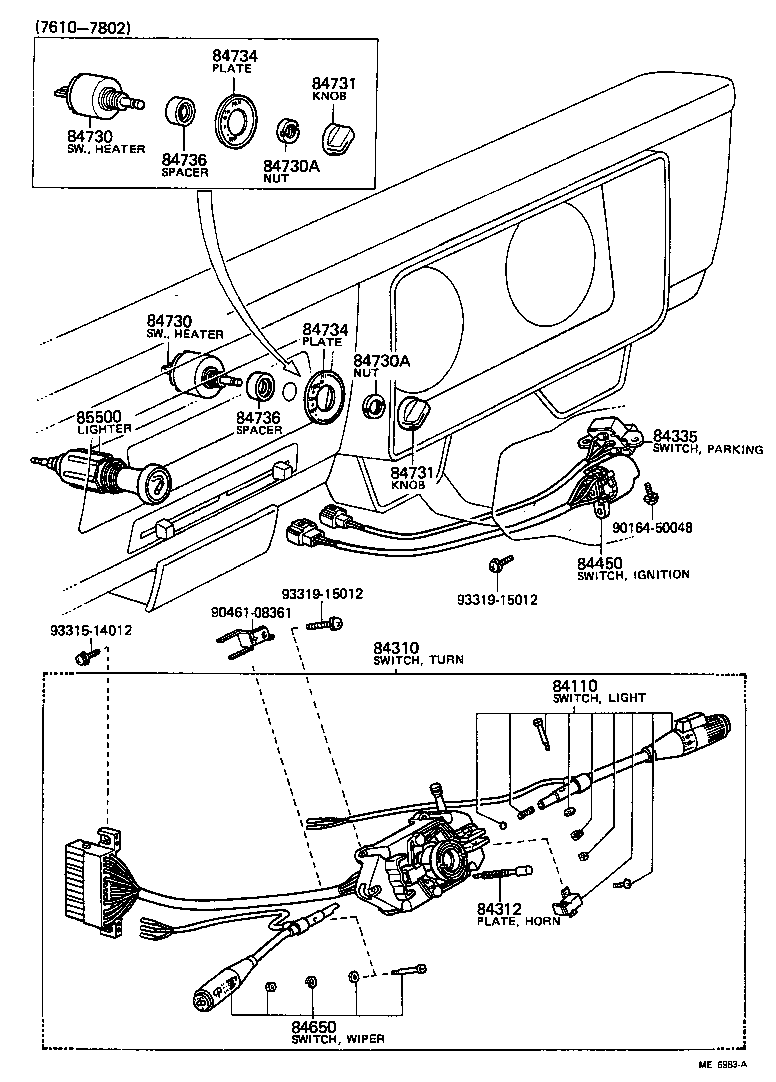

| 84730 | Switch Assy, Heater Blower |
| 84730A | Nut, Heater Blower Switch |
| 84731 | Knob, Heater Blower Switch |
| 84734 | Plate, Heater Blower Switch Caution |
| 84736 | Spacer, Heater Blower Switch |
| 85500 | Lighter Assy, Cigarette |
| 85916 | Relay, Light Control |
| 85923 | Relay, Choke Control |
| 85999 | Bracket, Combination Relay |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
