Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

19 part groups · 3 illustrations

Illustrations

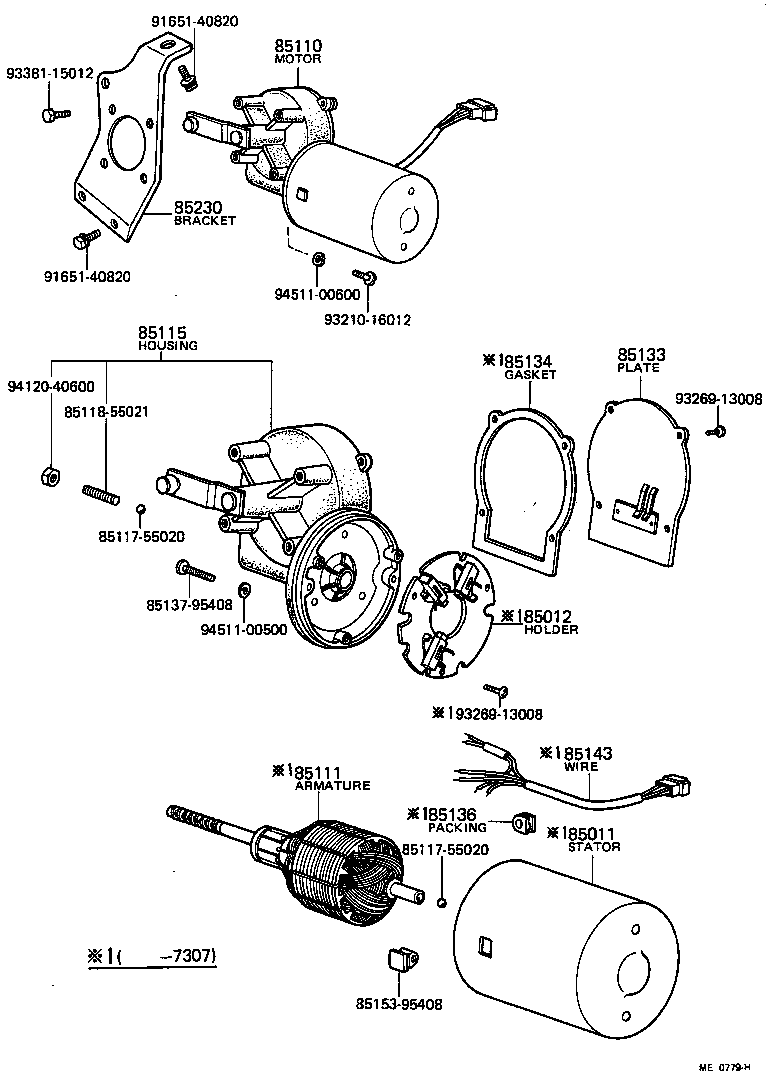

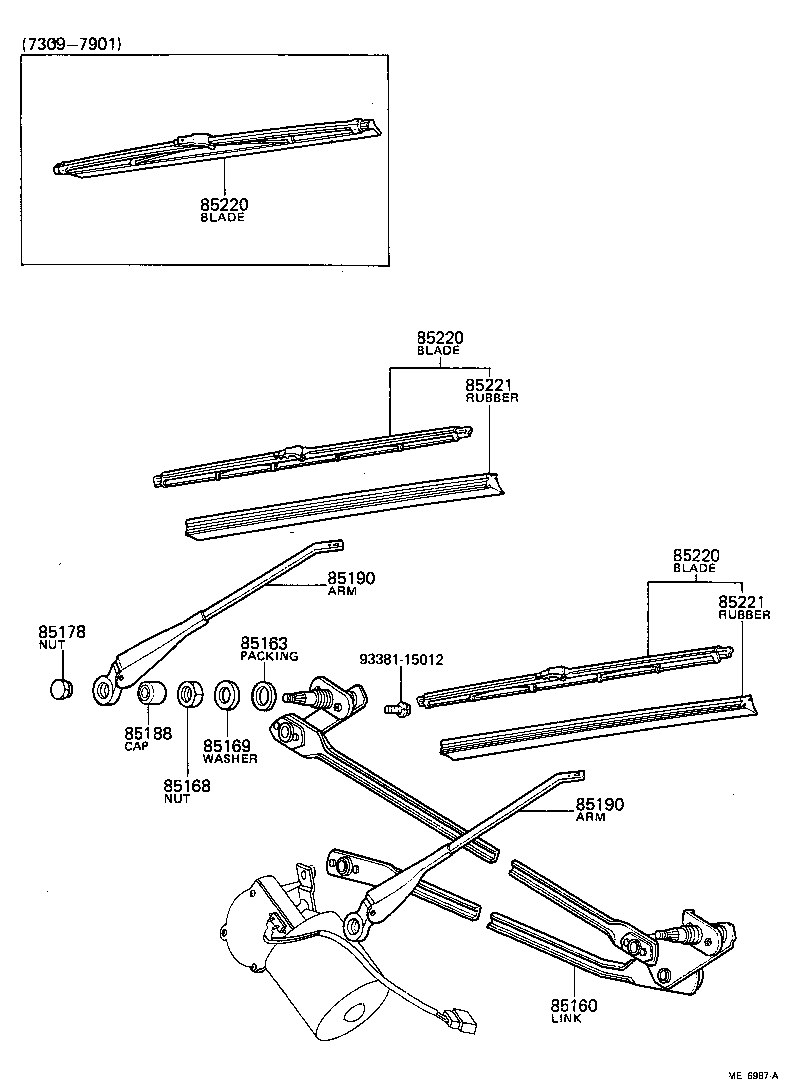

Figure ME6986A ME6986A 1971-05 → 1973-09 Figure ME6987A ME6987A 1973-09 → 1979-09 Figure ME0779H ME0779H 1971-05 → 1979-09

Part groups

PNCDescription
85011 Stator Sub-assy, Windshield Wiper Motor
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85110 Motor Assy, Windshield Wiper
85111 Armature, Windshield Wiper Motor
85115 Housing, Windshield Wiper Motor Gear
85133 Plate, Windshield Wiper Motor Gear Housing Cover
85134 Gasket, Windshield Wiper Motor Gear Housing Cover
85136 Packing, Windshield Wiper Motor Wire
85143 Wiring, Windshield Wiper Motor Lead
85160 Link Assy, Windshield Wiper
85163 Packing, Windshield Wiper Pivot
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85178 Nut (FOR FRONT WIPER ARM SETTING)
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85230 Bracket Assy, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
