Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

11 part groups · 2 illustrations

Illustrations

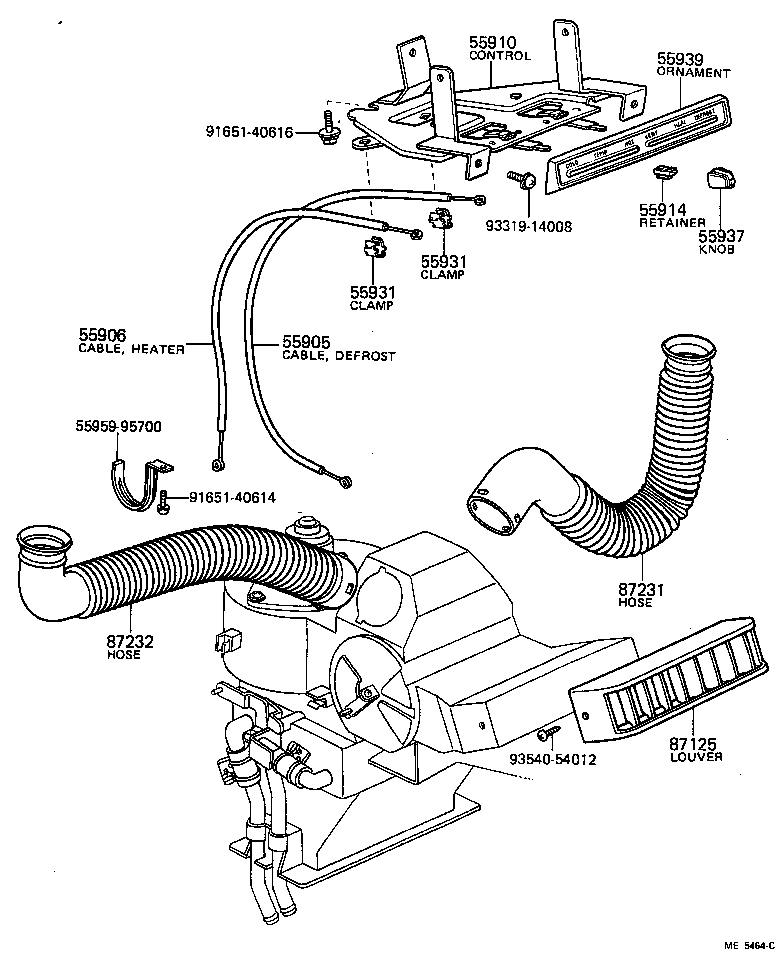

Figure ME6988 ME6988 1971-05 → 1976-10 Figure ME5464C ME5464C 1976-10 → 1979-09

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55914 Retainer, Heater Control Knob
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
87125 Louver, Ventilation
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
