Toyota Liteace
1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe
Discontinued model
Data version 1986-02

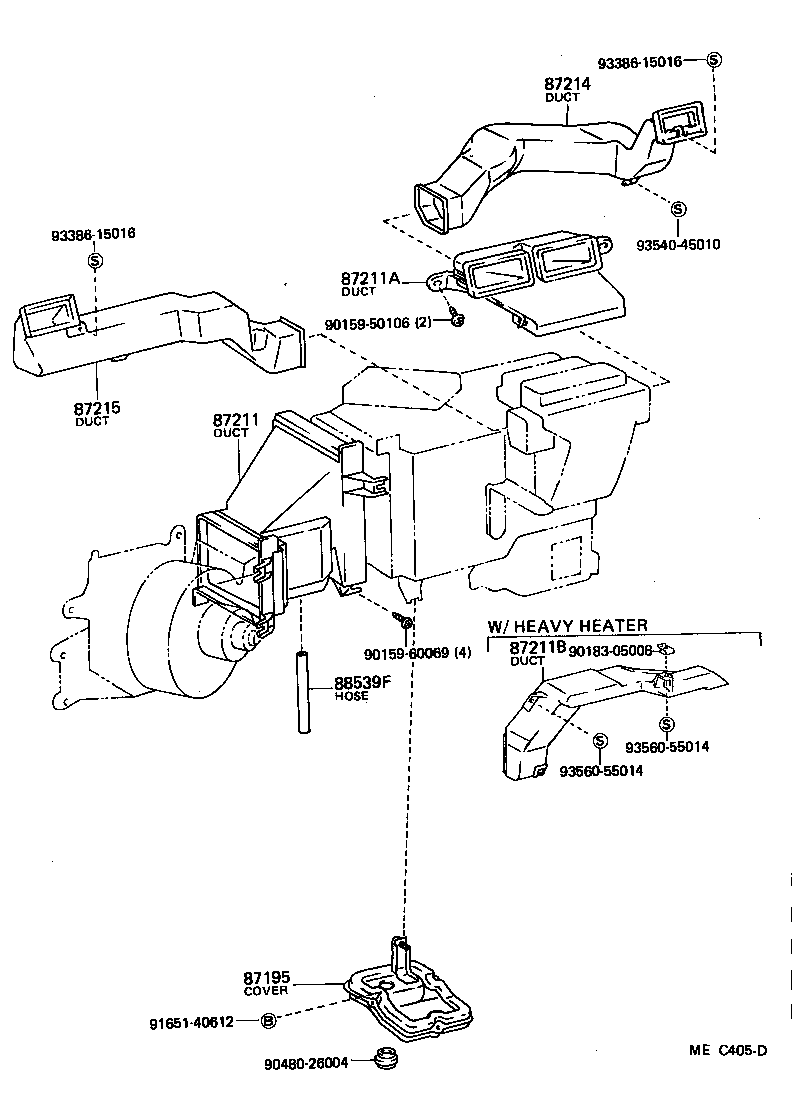

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87195 — Cover, Hole | ||||
| 87195-95701 note |
Cover, Hole
1979-10 → 1985-08
ended
|
KM20 GEN | — | |
| 87195-95702 |
Cover, Hole
1980-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
| 87195-95703 |
Cover, Hole
1982-10 → 1985-08
ended
|
CM20,KM20,YM2# RHD | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-95700 |
Duct, Air, NO.1
1980-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
| 87211-95701 |
Duct, Air, NO.1
1982-10 → 1985-08
ended
|
CM20,KM20,YM2# RHD | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 55086-95700 |
Duct, Air, NO.2
1982-10 → 1985-08
ended
|
CM20,KM20,YM2# RHD | — | |
| 87201-95700 |
Duct, Air, NO.2
1979-10 → 1982-10
ended
|
KM20 RHD | — | |
| 87201-95701 |
Duct, Air, NO.2
1979-10 → 1980-10
ended
|
KM20 LHD VSP EUR;KM20 +2 | — | |
| 87201-95701 |
Duct, Air, NO.2
1980-10 → 1985-08
ended
|
CM20,KM20 LHD GEN | — | |
| 87201-95702 |
Duct, Air, NO.2
1980-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
| 87201-95702 note |
Duct, Air, NO.2
1981-01 → 1985-08
ended
|
KM20 LHD GEN | — | |
| 88566-95700 note |
Duct, Air, NO.2
1981-01 → 1982-10
ended
|
KM20 RHD (HRF,SRF) GEN | — | |
| 87211B — Duct, Air, NO.3 | ||||
| 87201-95703 |
Duct, Air, NO.3
1982-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
| 87211-95711 note |
Duct, Air, NO.3
1982-10 → 1985-08
ended
|
CM20 RHD EUR | — | |
| 87214 — Duct, Air, Side NO.1 RH | ||||
| 55084-95700 |
Duct, Air, Side NO.1 RH
1982-10 → 1985-08
ended
|
CM20,KM20,YM2# RHD | — | |
| 55846-95700 |
Duct, Air, Side NO.1 RH
1980-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
| 88566-95702 note |
Duct, Air, Side NO.1 RH
1981-01 → 1982-10
ended
|
KM20 RHD (HRF,SRF) GEN | — | |
| 88566-95707 note |
Duct, Air, Side NO.1 RH
1981-01 → 1985-08
ended
|
KM20 LHD GEN | — | |
| 87215 — Duct, Air, Side NO.1 LH | ||||
| 55085-95700 |
Duct, Air, Side NO.1 LH
1982-10 → 1985-08
ended
|
CM20,KM20,YM2# RHD | — | |
| 55843-95700 |
Duct, Air, Side NO.1 LH
1980-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
| 88566-95701 note |
Duct, Air, Side NO.1 LH
1981-01 → 1982-10
ended
|
KM20 RHD (HRF,SRF) GEN | — | |
| 88566-95708 note |
Duct, Air, Side NO.1 LH
1981-01 → 1985-08
ended
|
KM20 LHD GEN | — | |
| 88539F — Hose, Drain | ||||
| 88539-14010 |
Hose, Drain
1982-10 → 1985-08
ended
|
CM20,KM20,YM2# RHD | — | |
| 88539-95702 |
Hose, Drain
1980-10 → 1985-08
ended
|
CM20,KM20 LHD EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
