Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

16 part groups · 7 illustrations

Illustrations

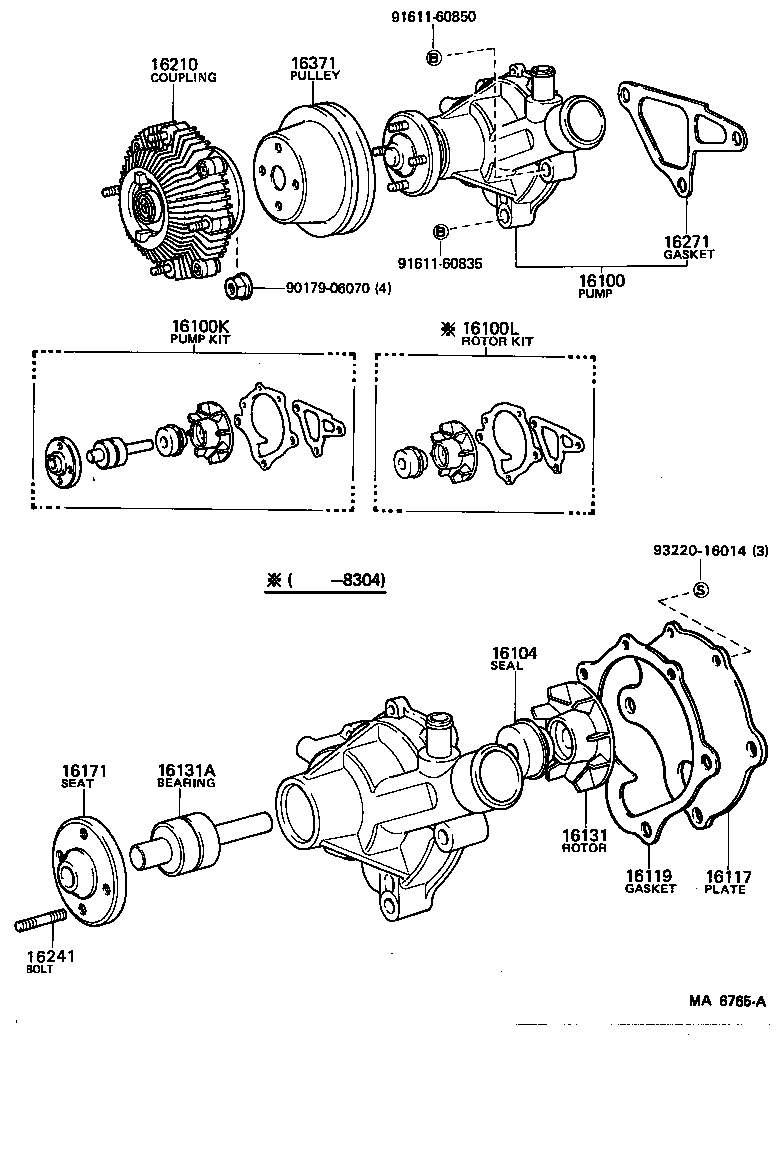

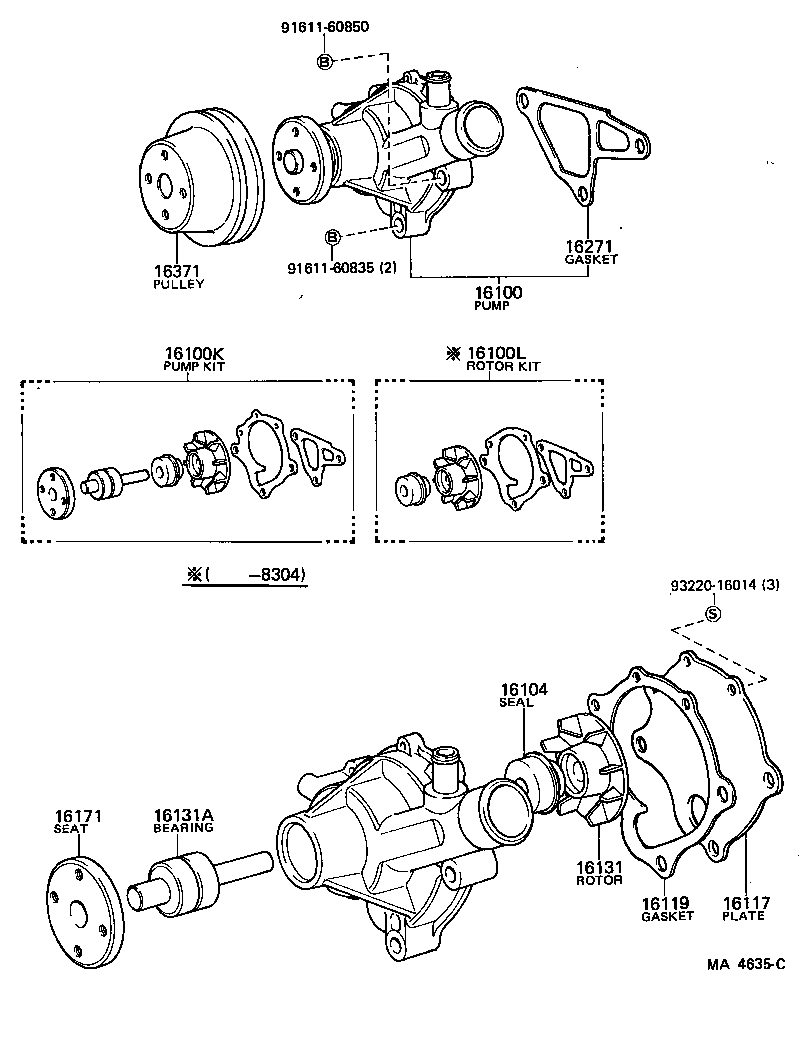

Figure MA5650D MA5650D 1982-10 → — Figure MA4635C MA4635C 1979-10 → 1982-10 Figure MA4635C MA4635C 1982-10 → — Figure MA6765A MA6765A 1980-12 → — Figure MA6765A MA6765A 1982-10 → — Figure MA6765A MA6765A 1982-12 → — Figure MA6183A MA6183A 1983-11 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100K Pump Kit, Water
16100L Rotor Kit, Water Pump
16104 Seal Set, Water Pump
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16210 Coupling Assy, Fluid
16211 Bracket, Fluid Coupling
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
