Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 3 illustrations

Illustrations

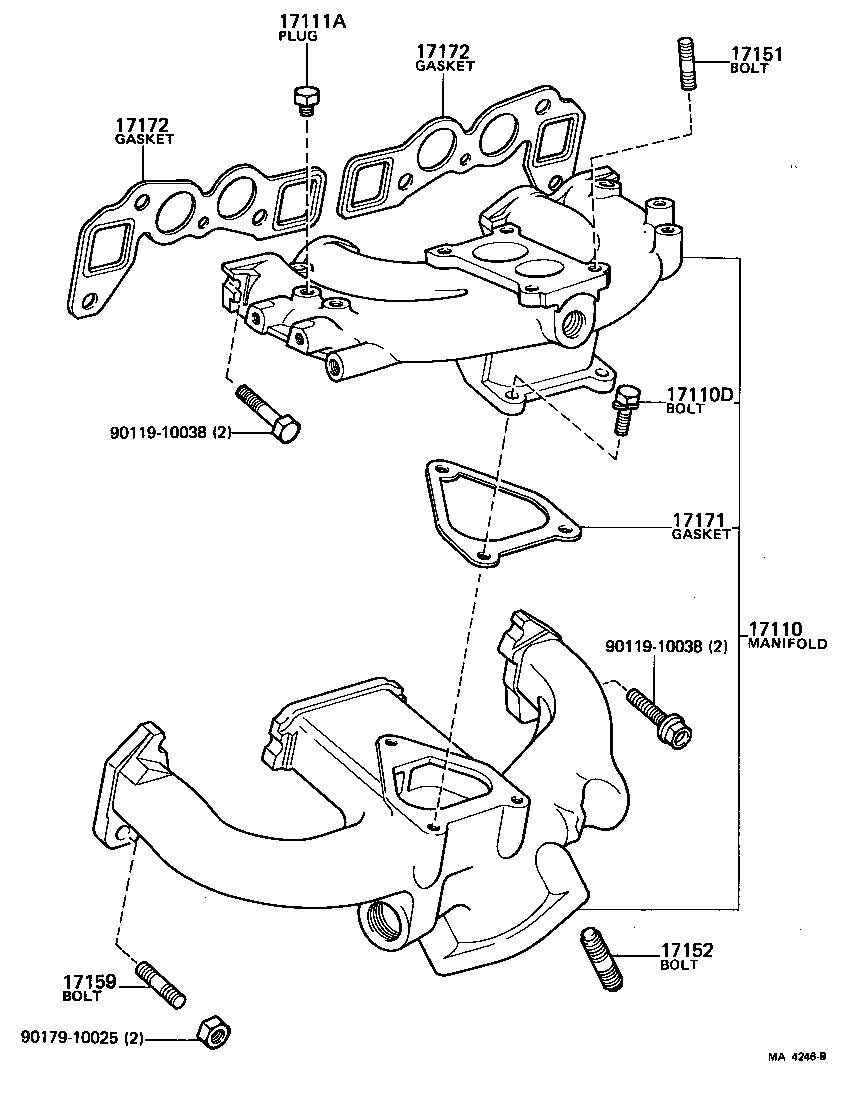

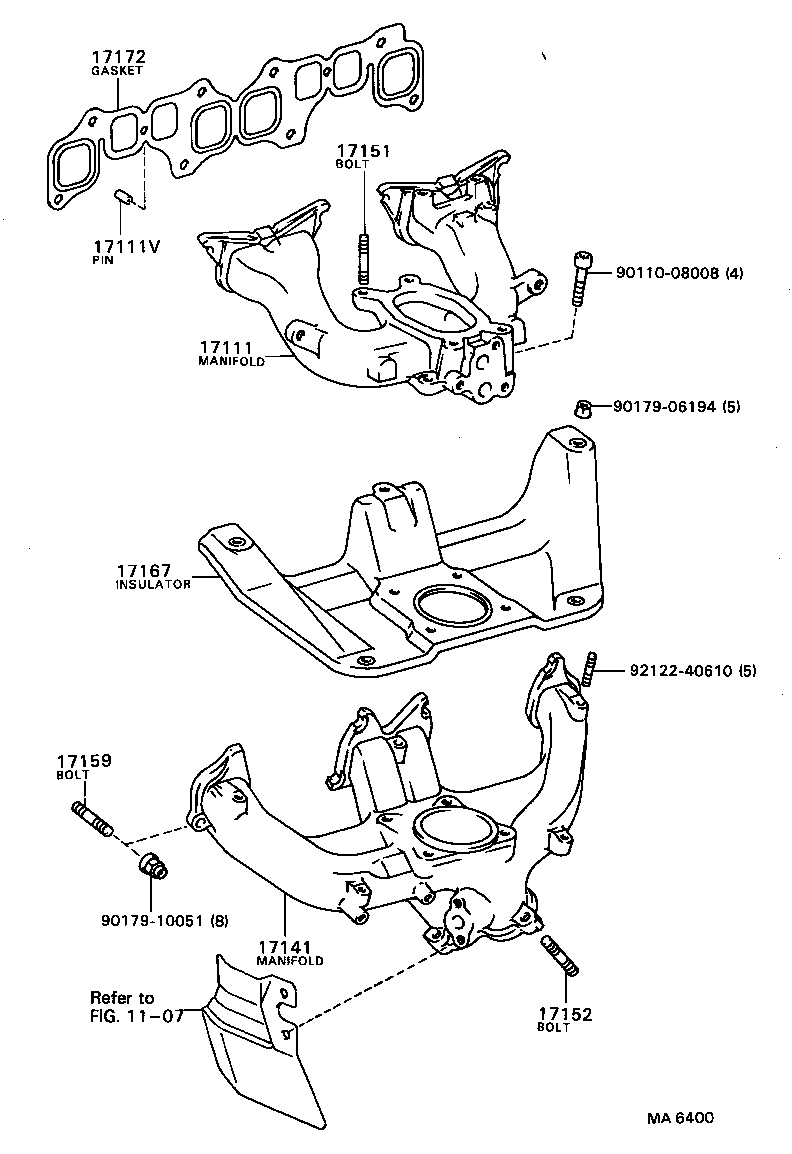

Figure MA8903 MA8903 1982-10 → — Figure MA4246B MA4246B 1979-10 → — Figure MA6400 MA6400 1983-11 → —

Part groups

PNCDescription
17110 Manifold Assy
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111S Gasket(FOR MANIFOLD PLUG)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
