Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

20 part groups · 2 illustrations

Illustrations

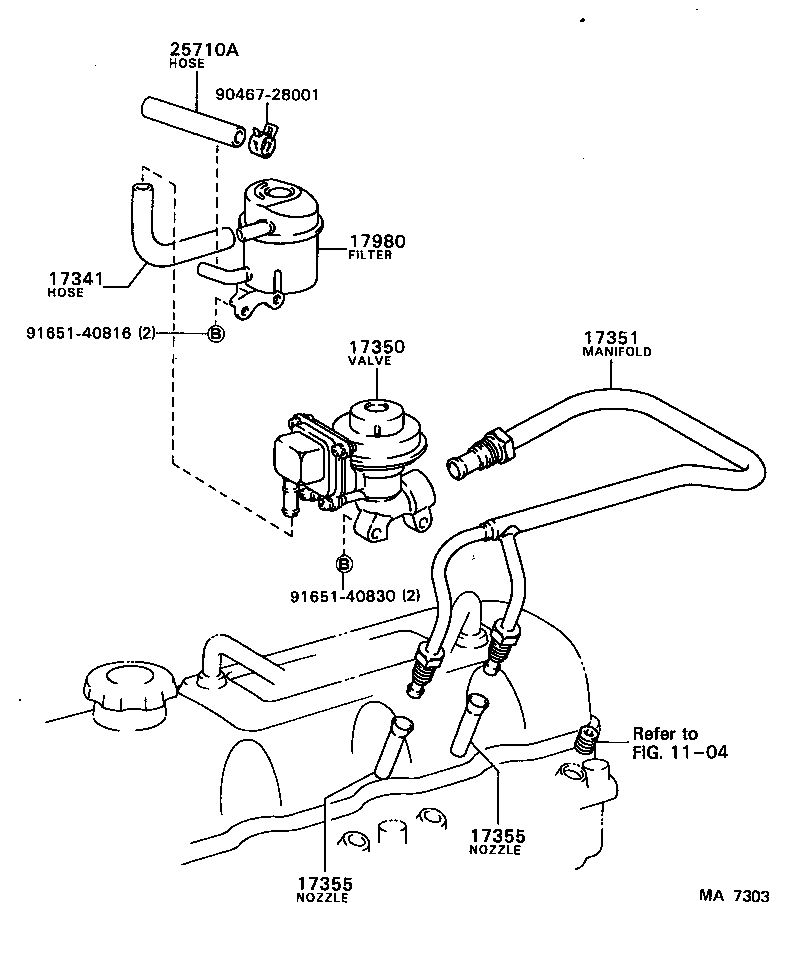

Figure MA4297E MA4297E 1979-10 → — Figure MA7303 MA7303 1983-11 → —

Part groups

PNCDescription
17313 Bracket, Air By-pass Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17345 Hose, NO.5(FOR AIR INJECTION SYSTEM)
17345A Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17355 Nozzle, Air Injection
17361 Tube, Air
17362 Tube, Air, NO.2
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17670 Valve Assy, Air By-pass
17980 Filter Assy, Air Suction
25710A Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
