Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 14 illustrations

Illustrations

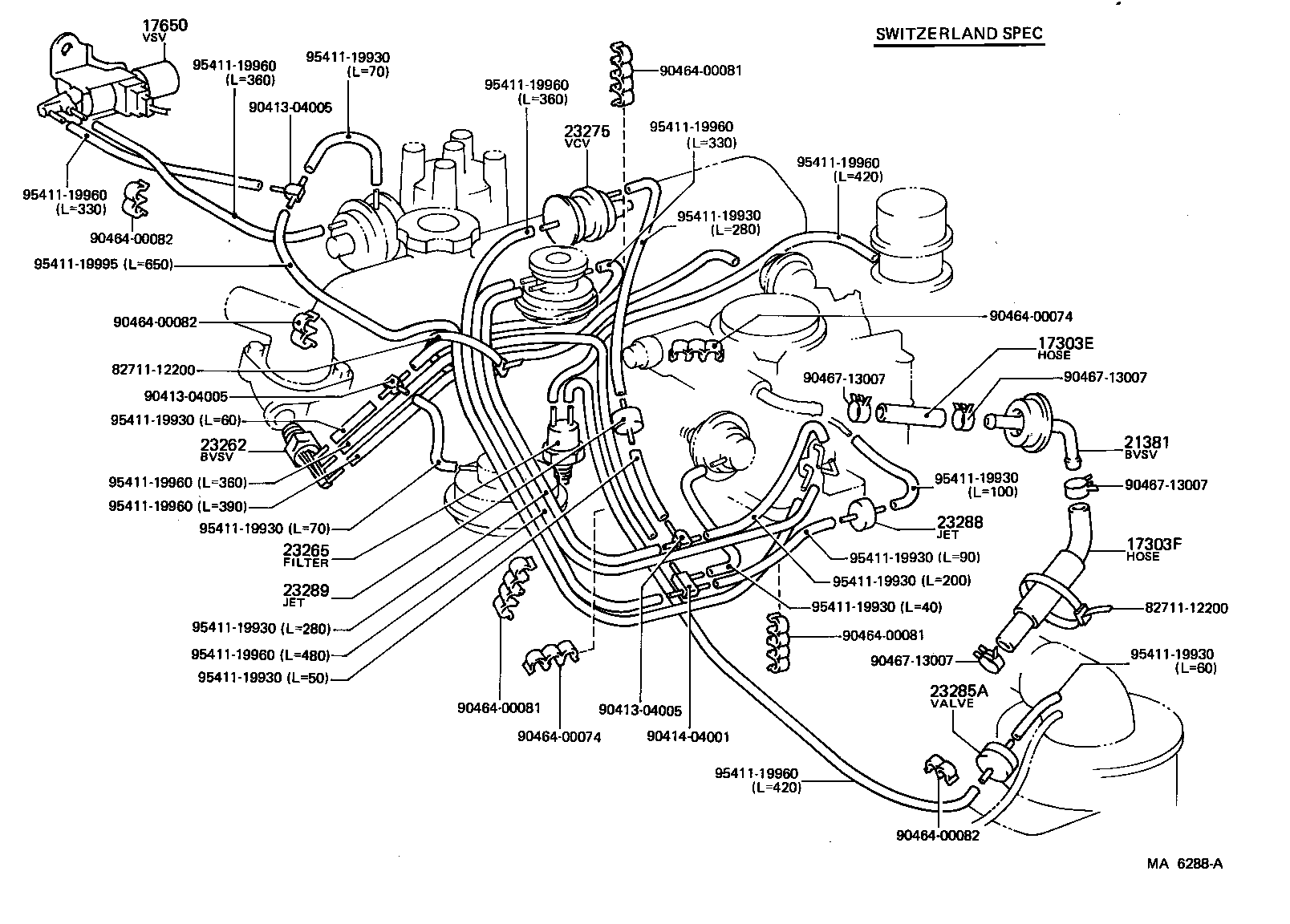

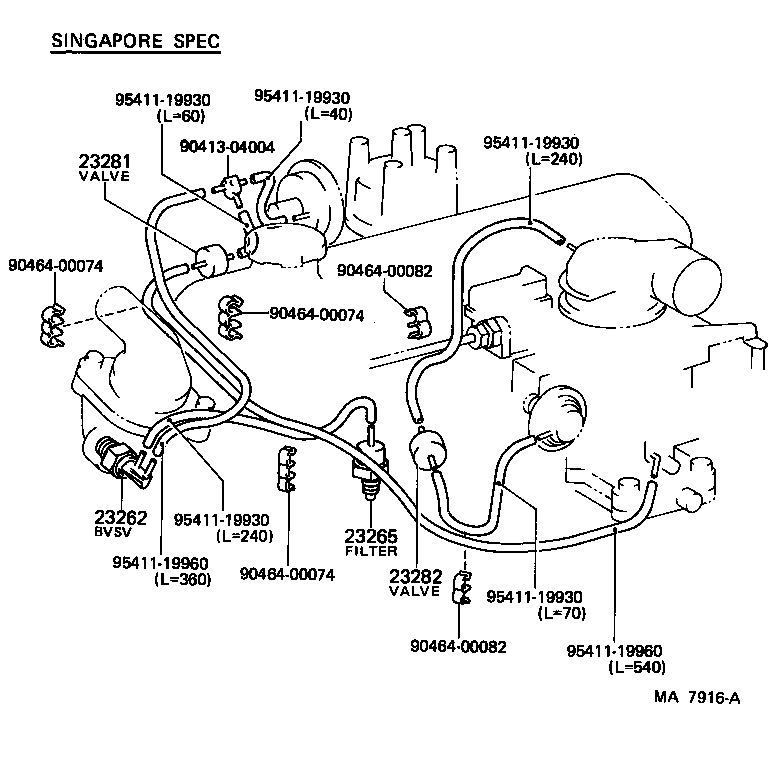

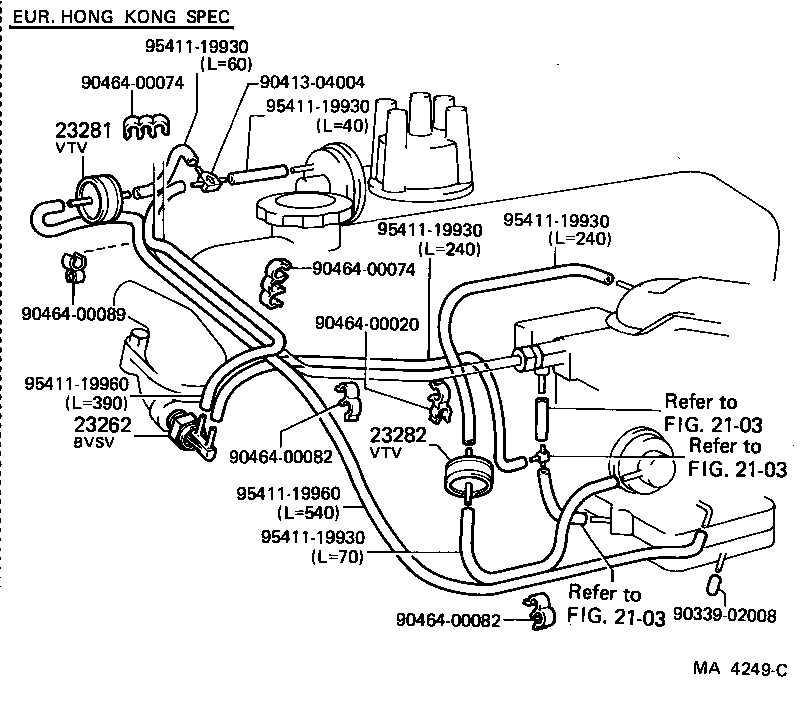

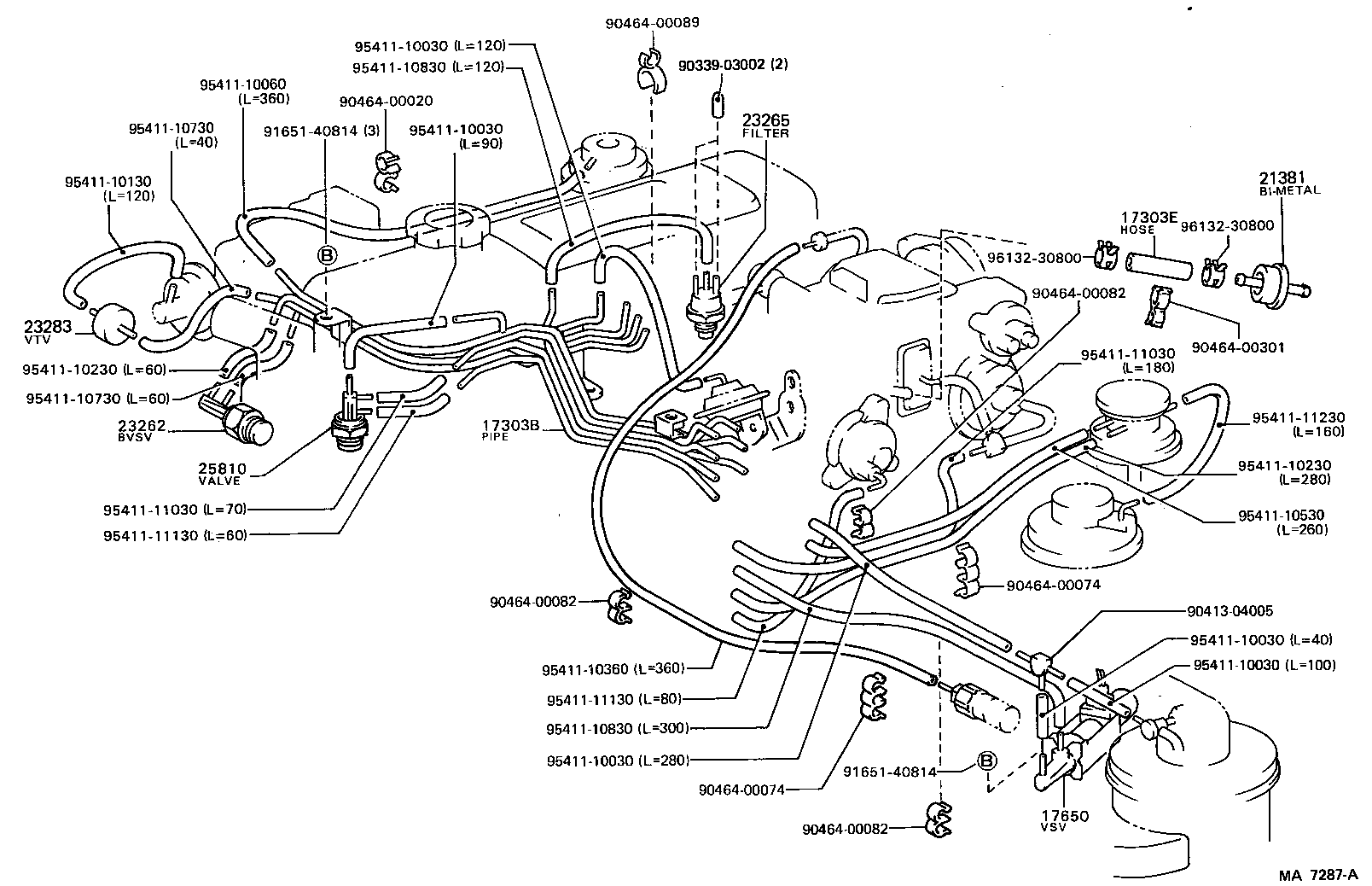

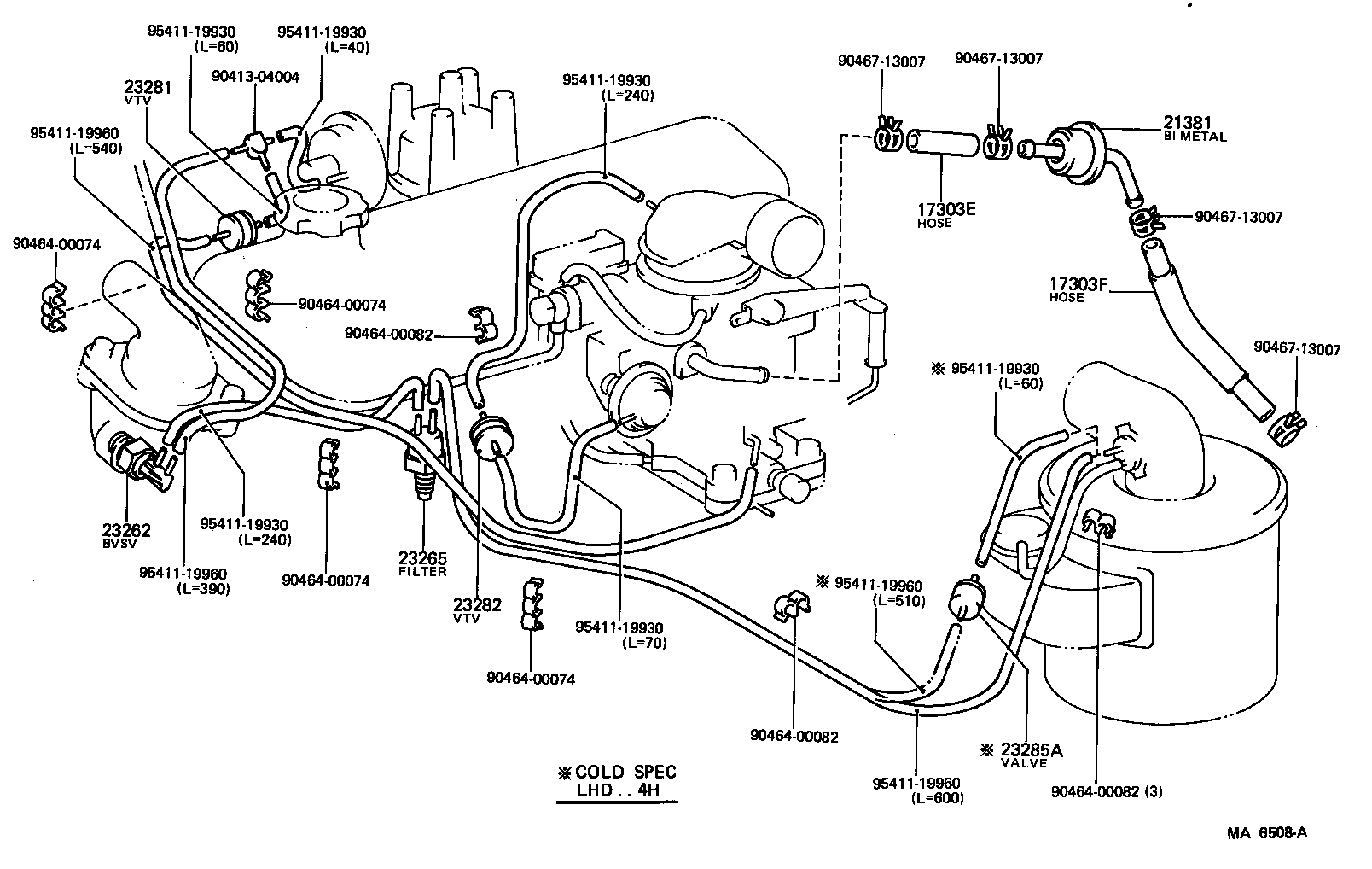

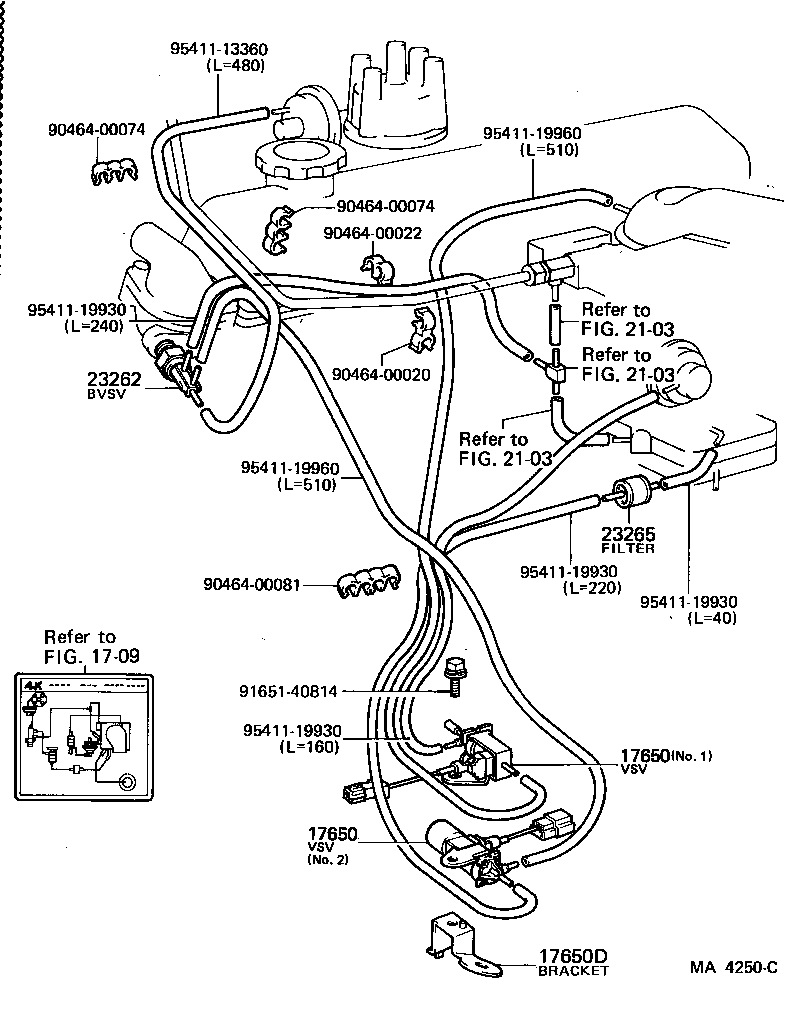

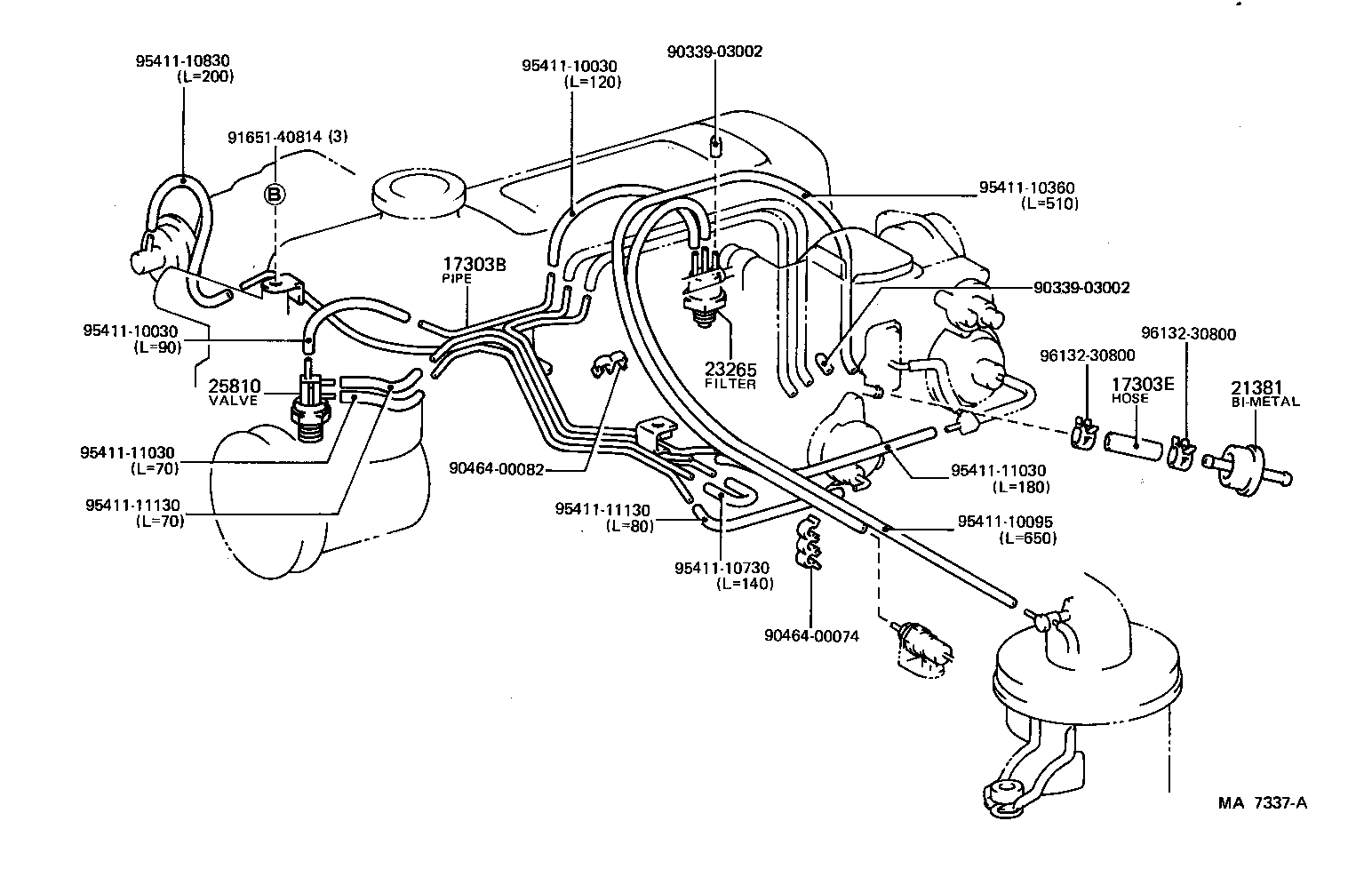

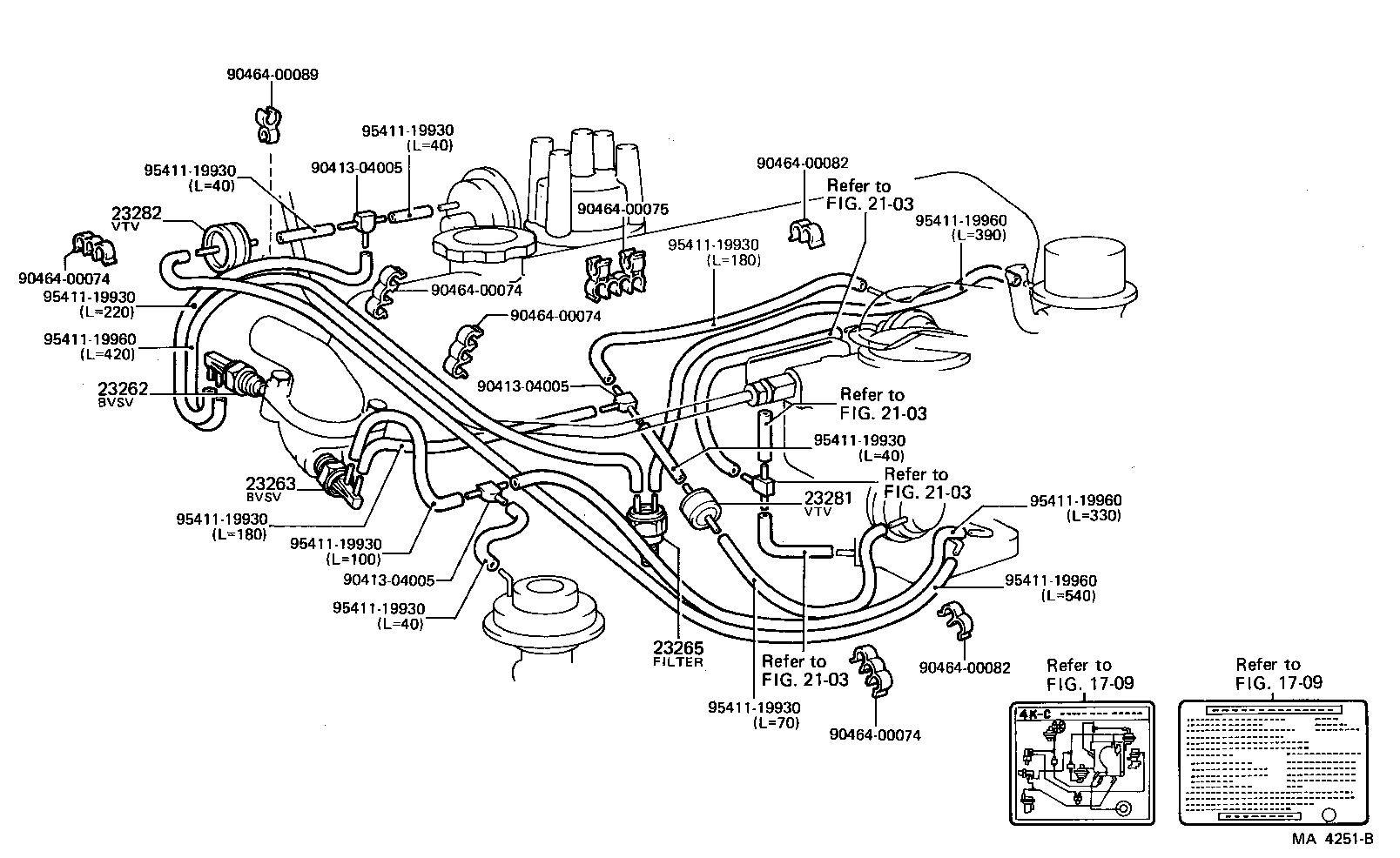

Figure MA9501 MA9501 1979-10 → — Figure MA9501 MA9501 1979-10 → — Figure MA4248B MA4248B 1979-10 → 1982-02 Figure MA4248B MA4248B 1979-10 → 1982-10 Figure MA4248B MA4248B 1979-10 → — Figure MA4249C MA4249C 1979-10 → 1982-10 Figure MA7916A MA7916A 1984-09 → — Figure MA6508A MA6508A 1982-10 → — Figure MA4250C MA4250C 1979-10 → — Figure MA4251B MA4251B 1979-10 → — Figure MA6288A MA6288A 1982-10 → — Figure MA9501 MA9501 1979-10 → — Figure MA7337A MA7337A 1984-02 → — Figure MA7287A MA7287A 1983-11 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
