Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

10 part groups · 3 illustrations

Illustrations

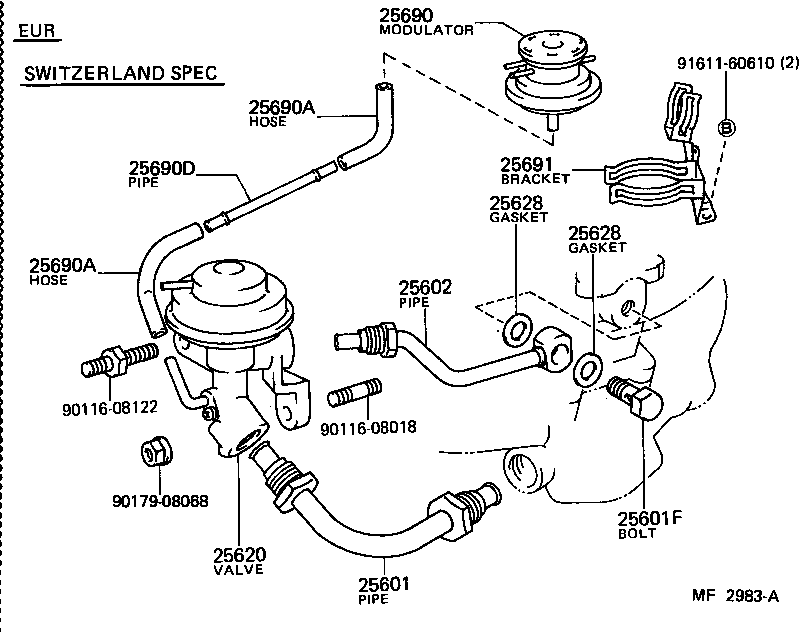

Figure MF2381B MF2381B 1979-10 → — Figure MF2983A MF2983A 1979-10 → — Figure MF3019 MF3019 1983-11 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601F Union(FOR EGR PIPE, NO.1)
25602 Pipe Sub-assy, Egr, NO.2
25620 Valve Assy, Egr
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25690D Pipe(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
