Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 7 illustrations

Illustrations

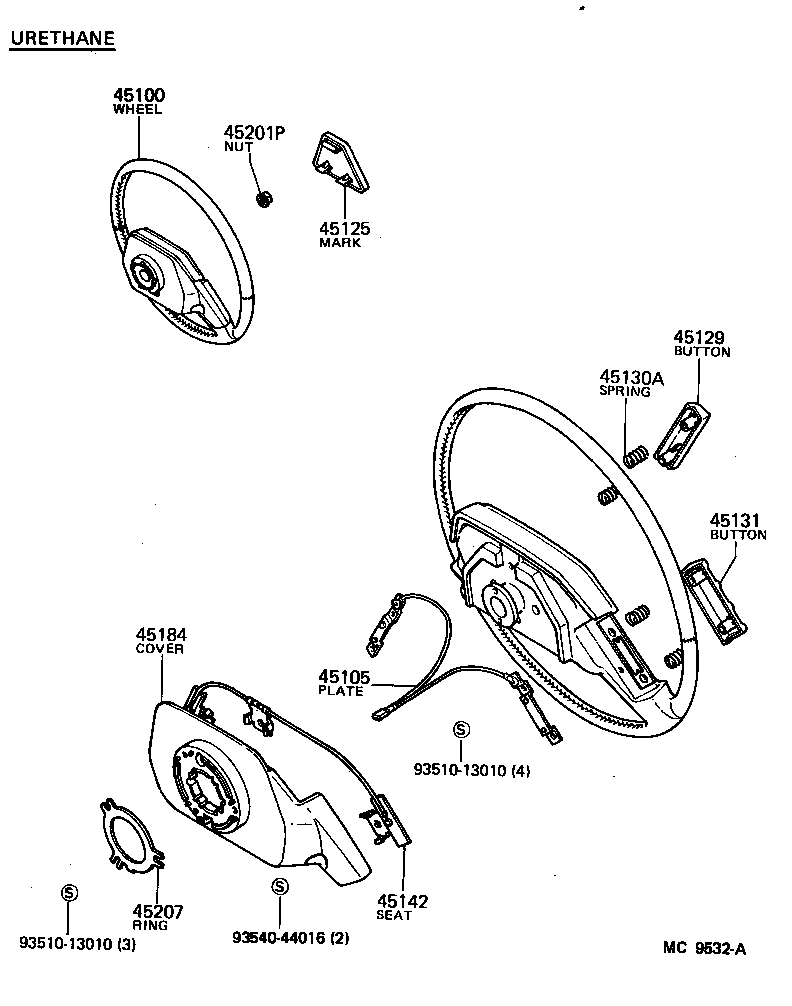

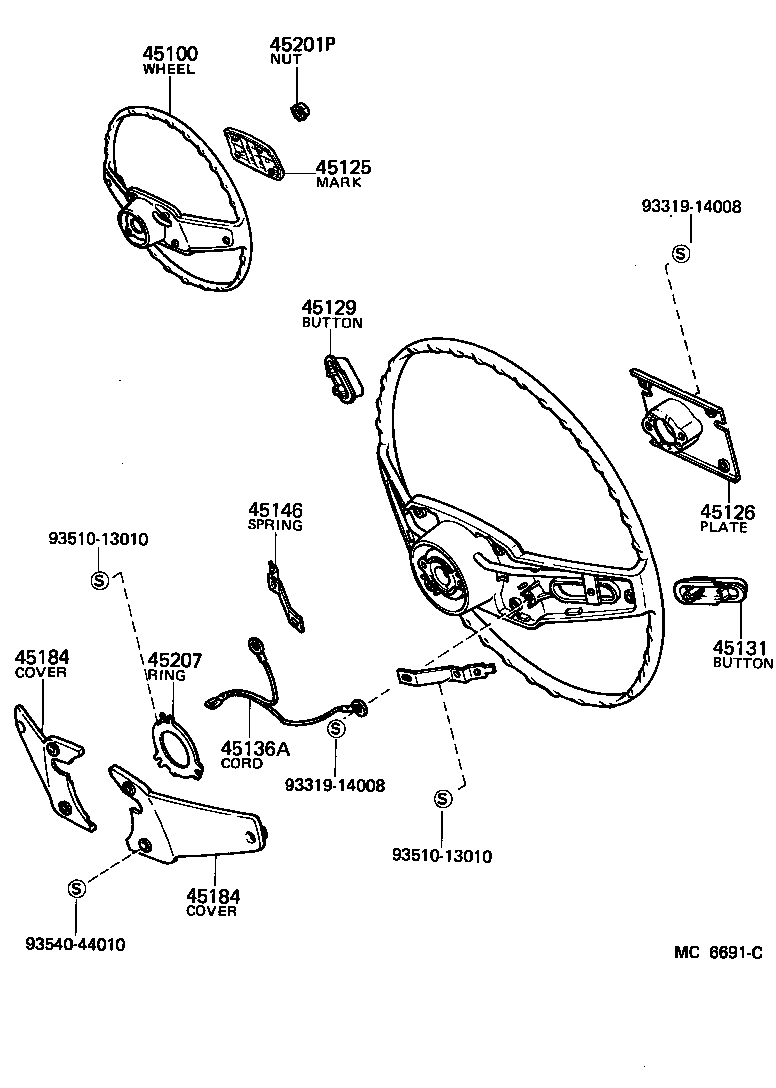

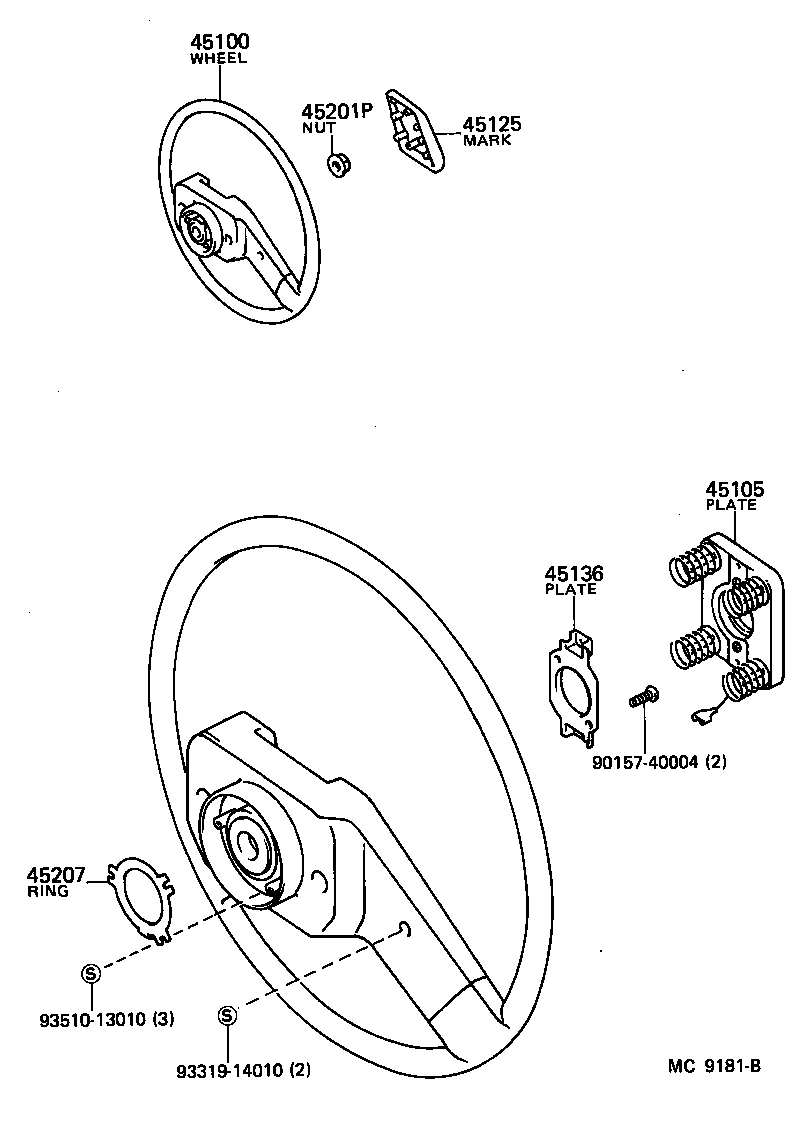

Figure MC6692A MC6692A 1979-10 → 1982-10 Figure MC6691C MC6691C 1981-01 → 1982-10 Figure MC6691C MC6691C 1982-10 → — Figure MC9181B MC9181B 1982-10 → — Figure MC9181B MC9181B 1983-11 → — Figure MC9532A MC9532A 1982-10 → — Figure MC9532A MC9532A 1983-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
