Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

38 part groups · 5 illustrations

Illustrations

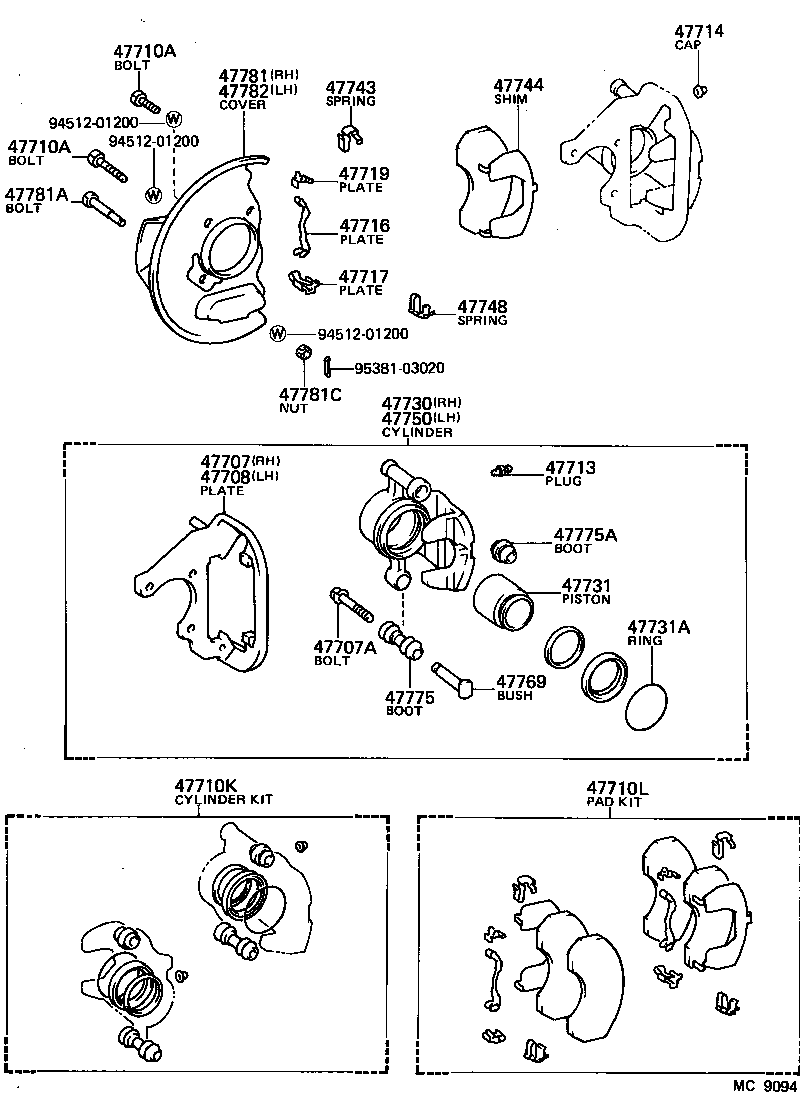

Figure MC6725B MC6725B 1979-10 → 1981-09 Figure MC6725B MC6725B 1981-01 → 1982-10 Figure MC6725B MC6725B 1981-09 → 1982-10 Figure MC9094 MC9094 1982-10 → — Figure MCT614 MCT614 1979-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
47707 Plate Sub-assy, Disc Brake Torque, Front RH
47707A Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
47708 Plate Sub-assy, Disc Brake Torque, Front LH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47710B Bolt, Union(FOR FRONT DISC BRAKE CALIPER)
47710C Union(FOR FRONT DISC BRAKE CALIPER)
47710D Gasket(FOR FRONT DISC BRAKE CALIPER UNION)
47710K Cylinder Kit, Disc Brake, Front
47710L Pad Kit, Disc Brake, Front
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47718 Spring, Front Disc Brake Cylinder Support
47719 Plate, Front Disc Brake Pad Guide
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47726 Guide, Front Disc Brake Cylinder
47726A Clip(FOR FRONT DISC BRAKE CYLINDER)
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47738 Plate, Disc Brake Pad Guide, NO.2
47743 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47753 Plate, Cylinder Guide
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775A Boot, Pin
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
