Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

22 part groups · 2 illustrations

Illustrations

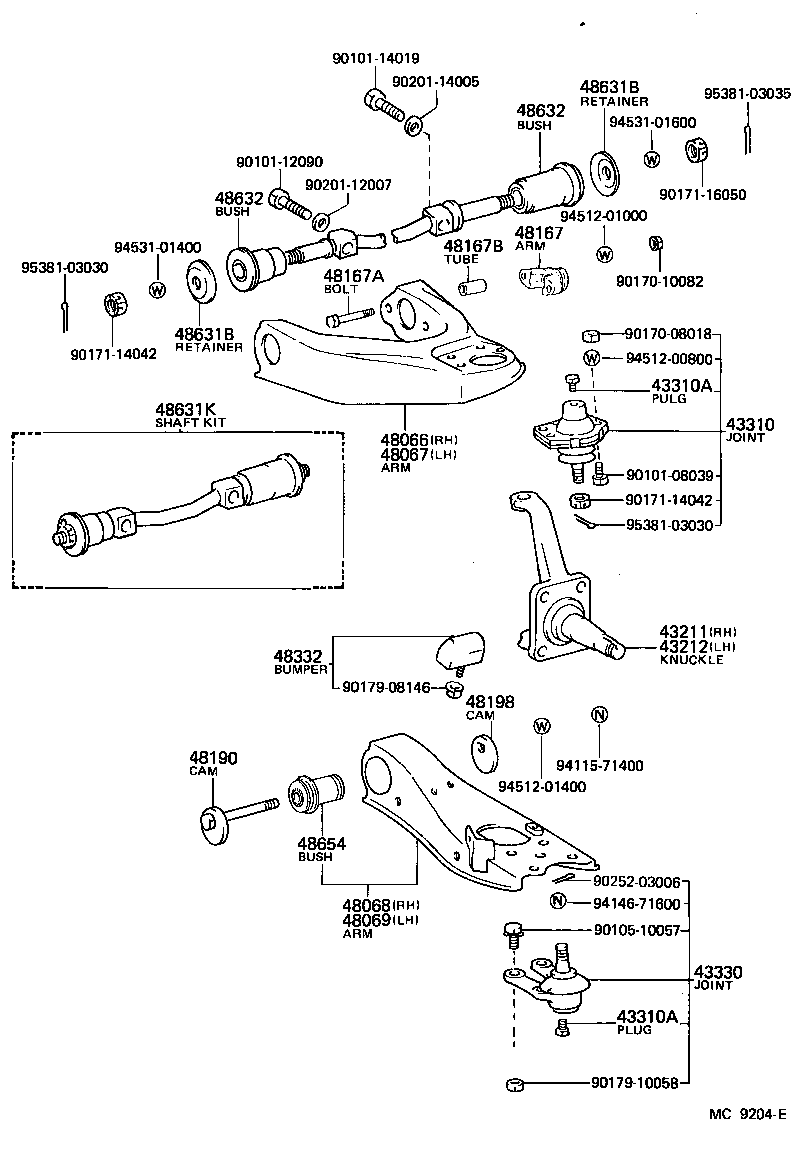

Figure MC6562C MC6562C 1979-10 → 1982-10 Figure MC9204E MC9204E 1982-10 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43212 Knuckle, Steering, LH
43310 Joint Assy, Upper Ball
43310A Plug (FOR BALL JOINT)
43330 Joint Assy, Lower Ball, Front
43346 Protector, Lower Ball Joint Dust Cover
43355 Deflector, Lower Arm Ice, RH
43356 Deflector, Lower Arm Ice, LH
48066 Arm Sub-assy, Front Suspension, Upper RH
48067 Arm Sub-assy, Front Suspension, Upper LH
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48167 Arm, Torque
48167A Bolt(FOR TORQUE ARM SETTING)
48167B Tube(FOR TORQUE ARM SETTING BOLT)
48190 Cam Assy, Camber Adjust
48198 Cam, Camber Adjust, NO.2
48332 Bumper, Front Spring, NO.2
48631B Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
48631K Shaft Kit, Upper Suspension Arm
48632 Bush, Upper Arm
48654 Bush, Lower Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
