Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

30 part groups · 6 illustrations

Illustrations

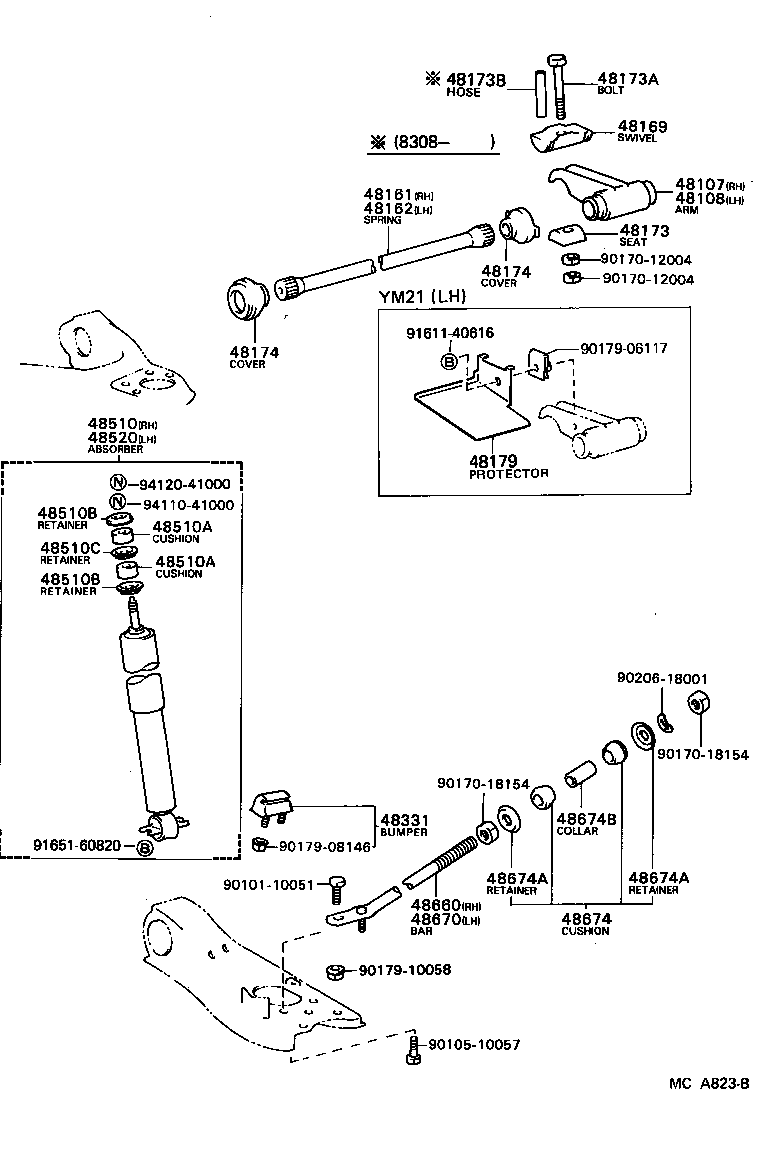

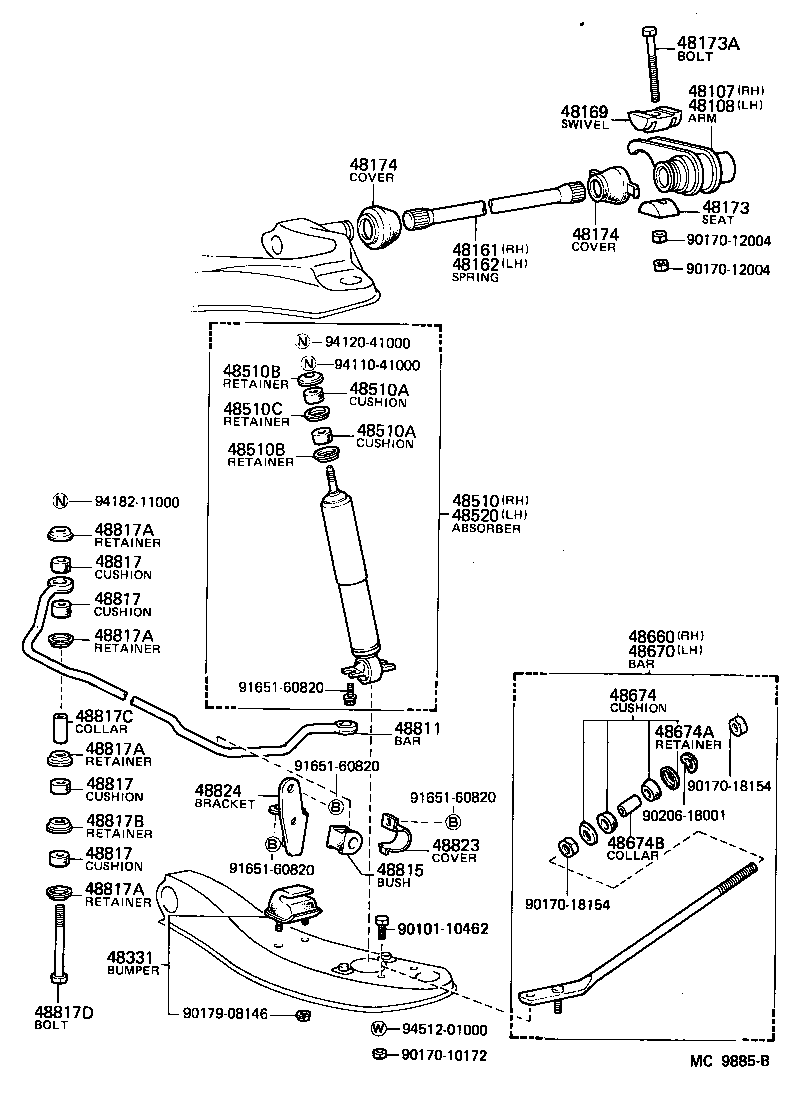

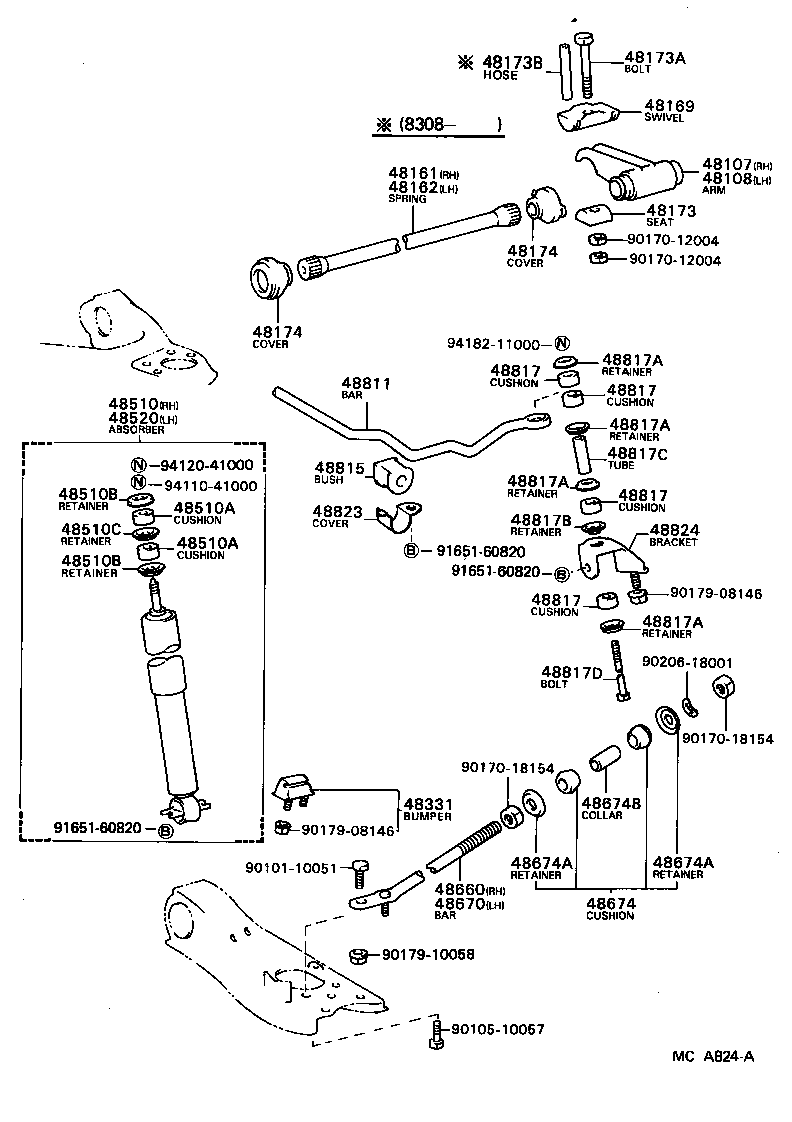

Figure MC8597D MC8597D 1979-10 → 1982-10 Figure MC9885B MC9885B 1979-10 → 1982-10 Figure MCA823B MCA823B 1982-10 → — Figure MCA823B MCA823B 1983-11 → — Figure MCA824A MCA824A 1982-10 → — Figure MCA824A MCA824A 1984-02 → —

Part groups

PNCDescription
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169 Swivel, Anchor Arm
48173 Seat, Anchor Arm Adjuster
48173A Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
48173B Hose(FOR ANCHOR ARM ADJUSTING BOLT)
48174 Cover, Torsion Bar Dust
48179 Protector, Torsion Bar Dust Cover, LH
48331 Bumper, Front Spring, NO.1
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48520 Absorber Assy, Shock, Front LH
48660 Bar Assy, Strut, RH
48670 Bar Assy, Strut, LH
48674 Cushion, Strut Bar
48674A Retainer, Cushion(FOR STRUT BAR CUSHION)
48674B Collar(FOR STRUT BAR CUSHION)
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C Collar(FOR STABILIZER BAR)
48817D Bolt(FOR FRONT STABILIZER)
48823 Cover, Stabilizer Link(FOR FRONT)
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
