Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

49 part groups · 11 illustrations

Illustrations

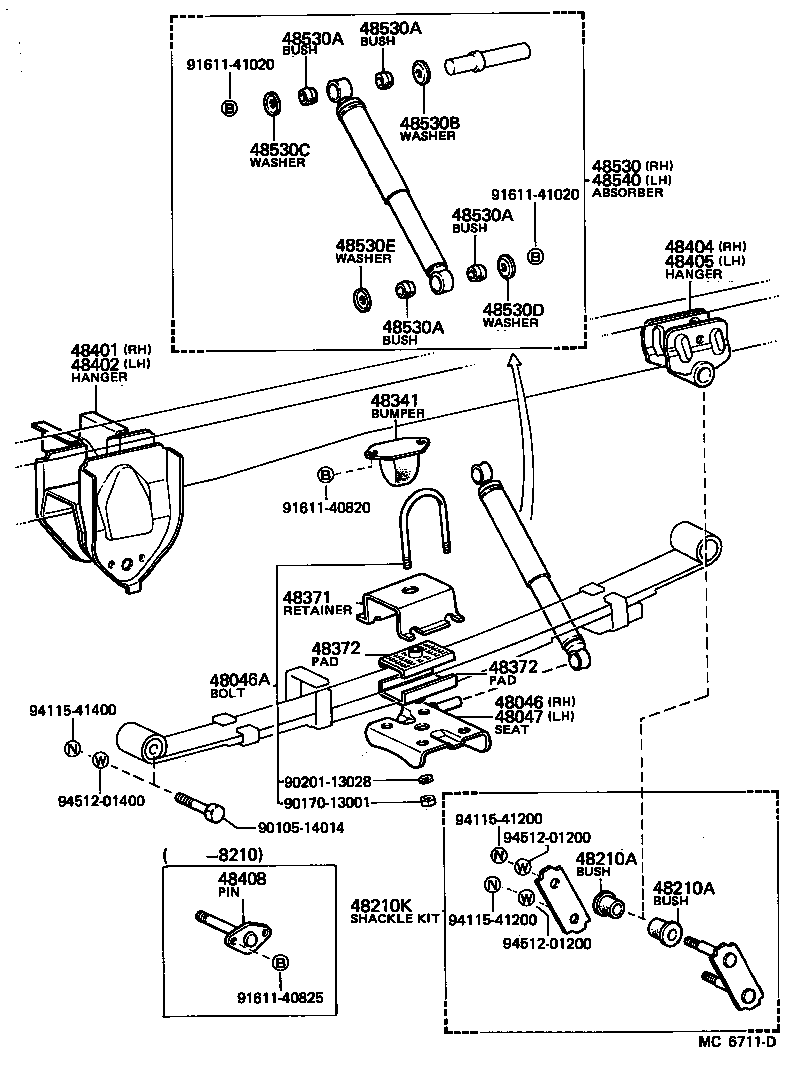

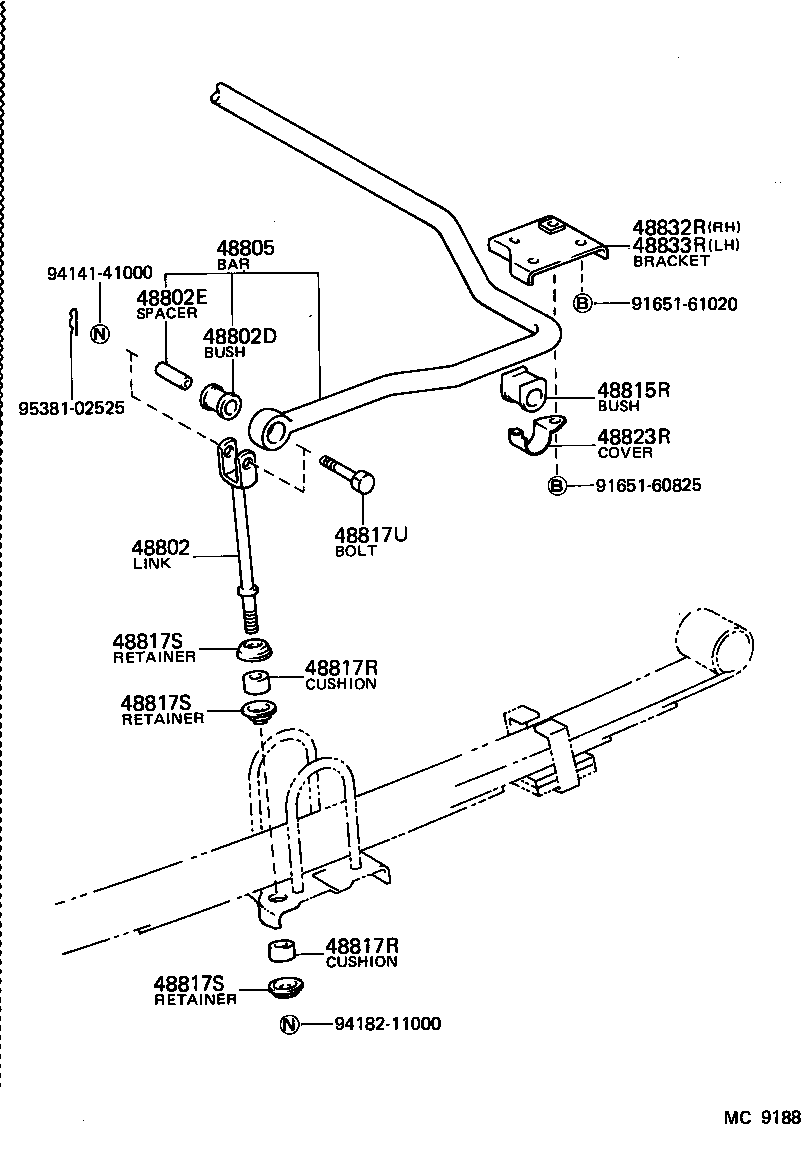

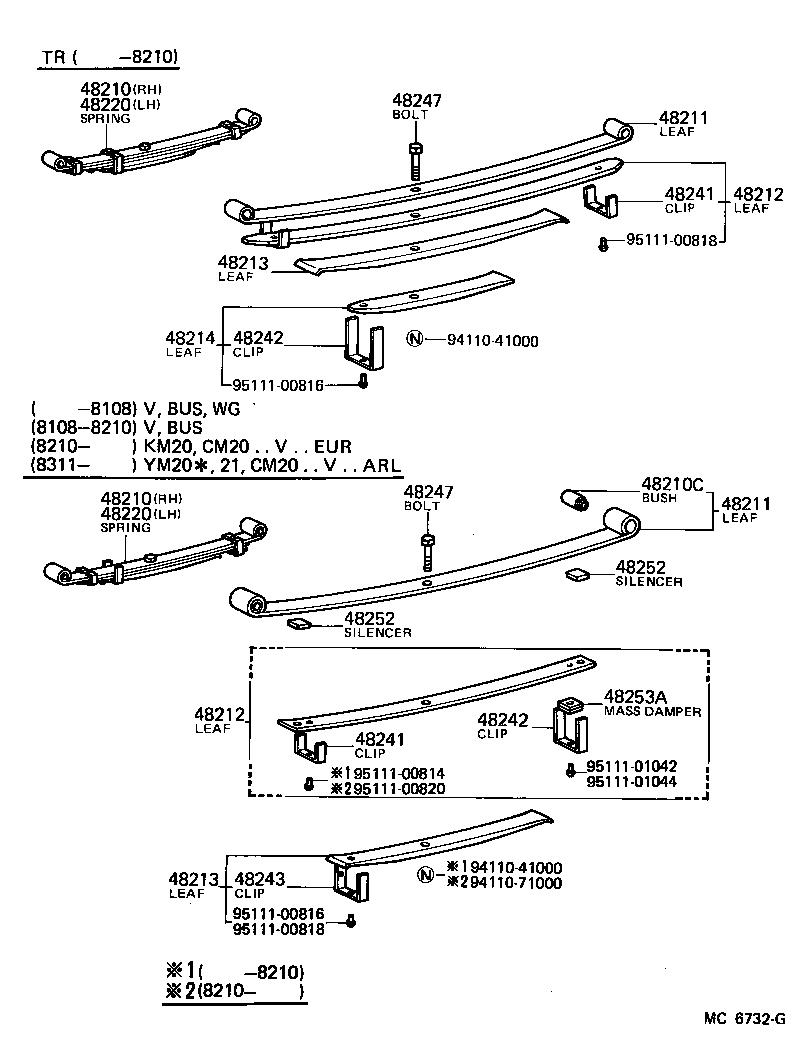

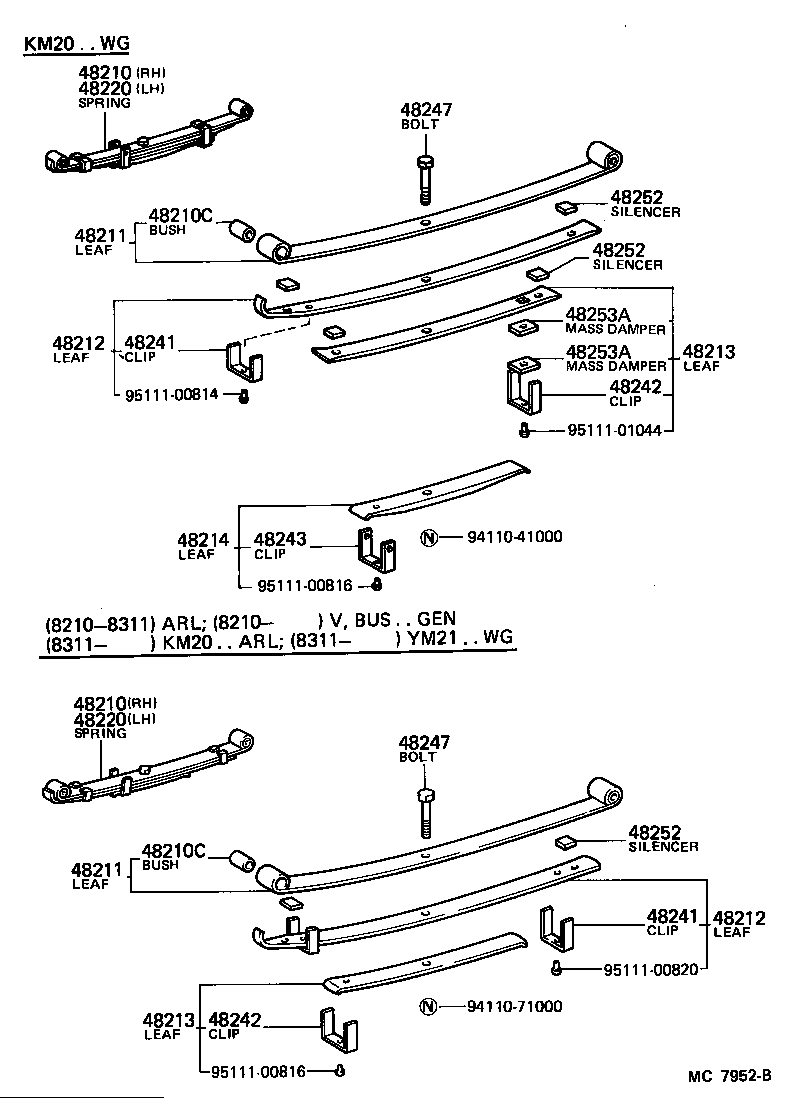

Figure MC6731D MC6731D 1979-10 → 1982-10 Figure MC6711D MC6711D 1979-10 → — Figure MC9188 MC9188 1982-10 → — Figure MC6732G MC6732G 1979-10 → 1981-08 Figure MC6732G MC6732G 1981-08 → 1982-10 Figure MC6732G MC6732G 1982-10 → — Figure MC6732G MC6732G 1983-11 → — Figure MC7952B MC7952B 1981-08 → — Figure MC7952B MC7952B 1982-10 → 1983-11 Figure MC7952B MC7952B 1982-10 → — Figure MC7952B MC7952B 1983-11 → —

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48210K Shackle Kit, Rear Spring
48210L Pin Kit, Rear Spring
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48243 Clip, Rear Spring, NO.3
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253A Mass Damper, Rear Spring, NO.1
48341 Bumper, Rear Spring
48344 Stopper, Bumper, Rear
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48408 Pin Sub-assy, Spring Bracket
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817U Bolt(FOR REAR STABILIZER)
48823R Cover, Stabilizer Link(FOR REAR)
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
