Factory parts data · Europe

Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure MBA765A

MBA765A 1979-10 → 1982-10

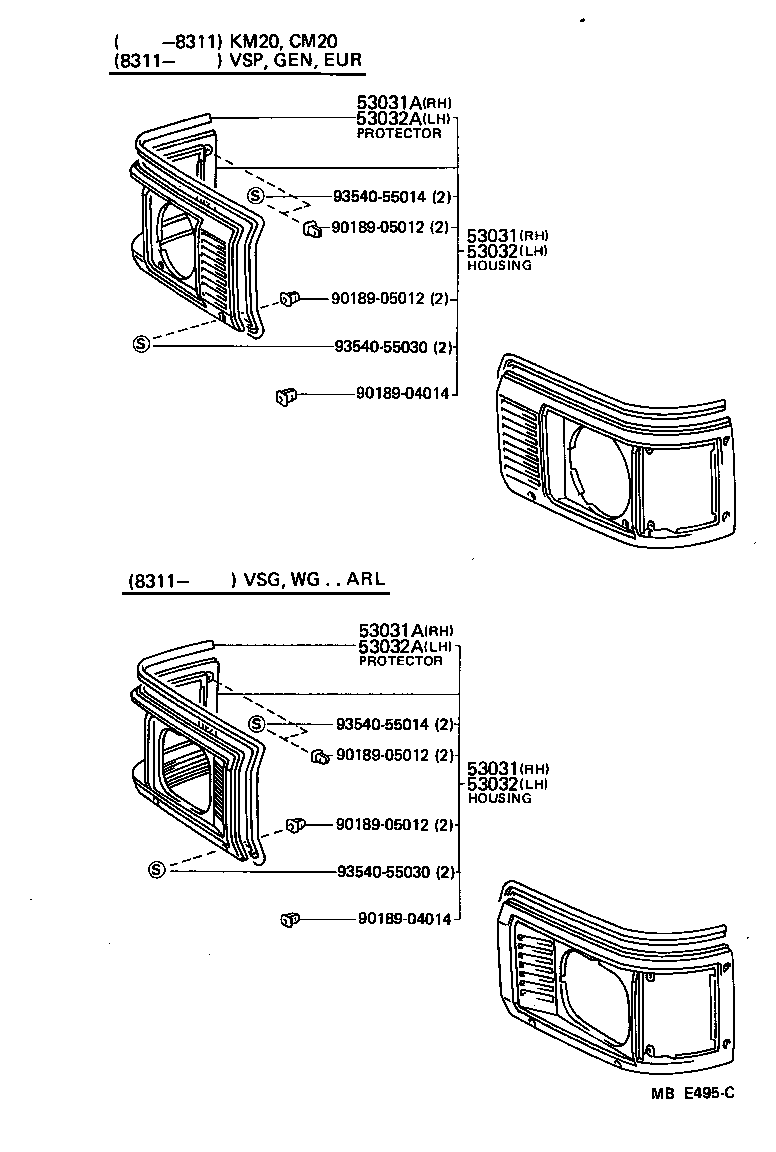

Figure MBE495C

MBE495C 1982-10 → —

Part groups

PNC	Description
53031	Housing, Headlamp, RH
53031A	Protector, Headlamp Door, RH
53032	Housing, Headlamp, LH
53032A	Protector, Headlamp Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
