Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

15 part groups · 2 illustrations

Illustrations

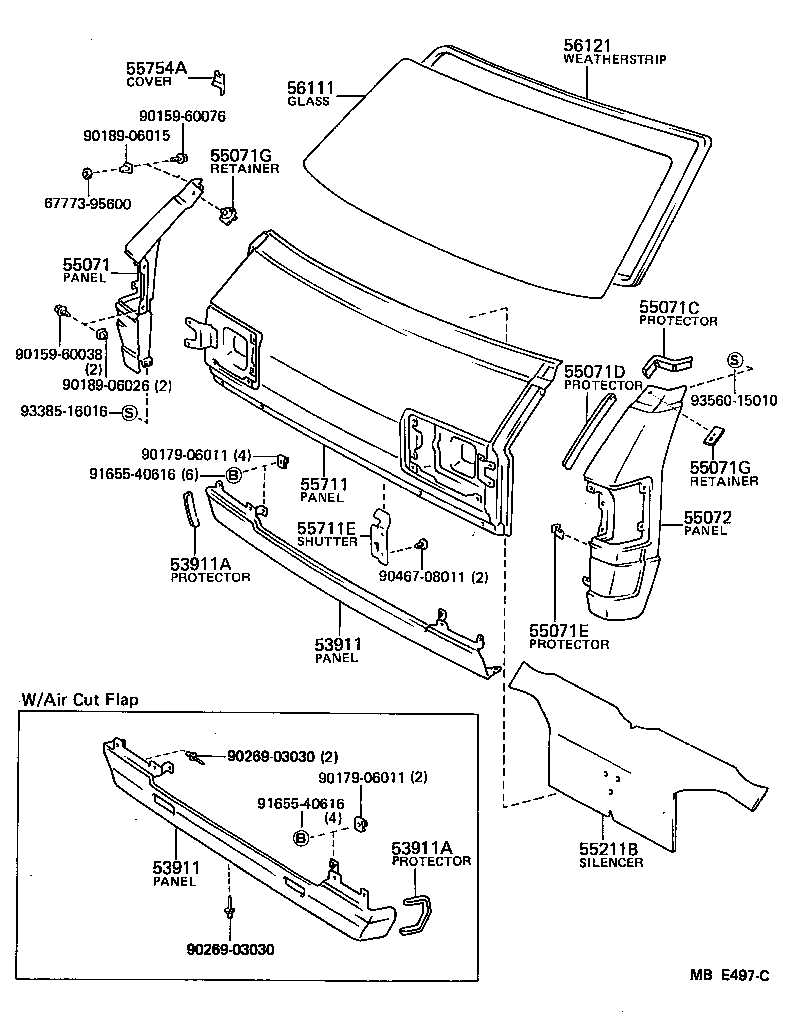

Figure MBA771D MBA771D 1979-10 → 1982-10 Figure MBE497C MBE497C 1982-10 → —

Part groups

PNCDescription
53911 Panel, Front Valance
53911A Protector, Front Valance Panel
55071 Panel Sub-assy, Front Side, RH
55071C Protector, Front Side Panel, NO.1
55071D Protector, Front Side Panel, NO.2
55071E Protector, Front Side Panel, NO.3
55071G Retainer, Front Side Panel Set
55071H Seal Sub-assy, Front Pillar TO Front Side
55072 Panel Sub-assy, Front Side, LH
55211B Silencer, Front Panel
55711 Panel, Cowl Top, Outer
55711E Shutter Sub-assy, Front Air
55754A Cover, Front Panel
56111 Glass, Windshield
56121 Weatherstrip, Windshield
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
