Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

25 part groups · 3 illustrations

Illustrations

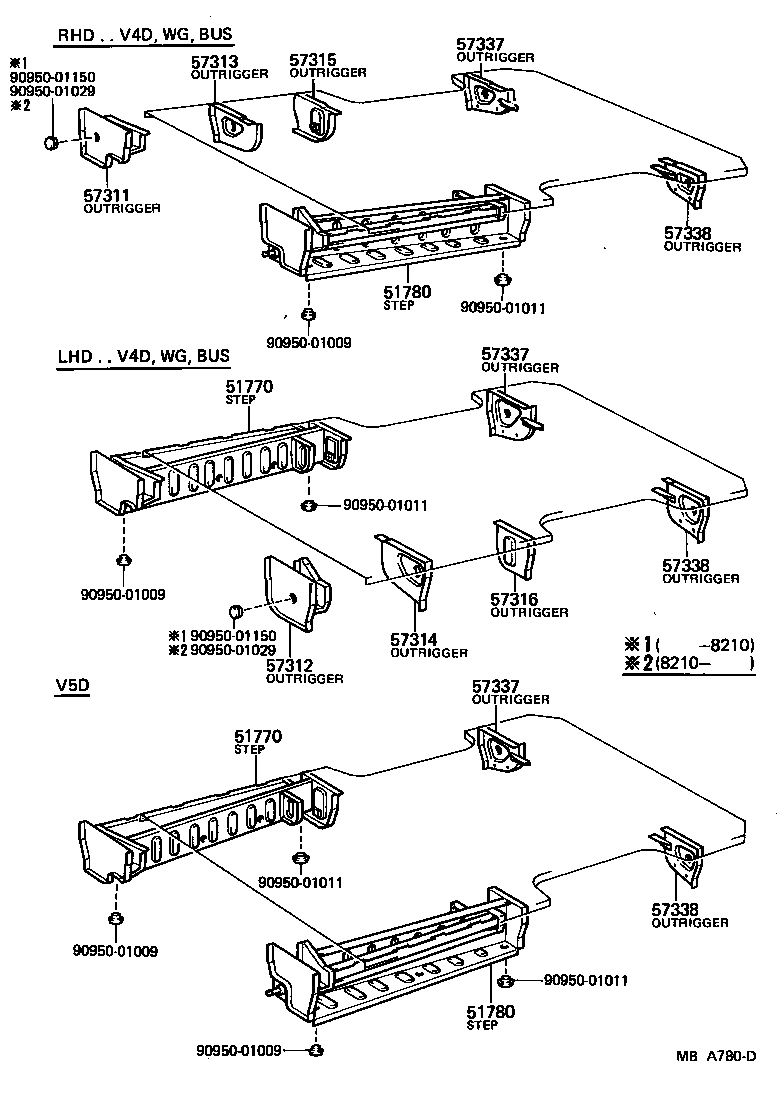

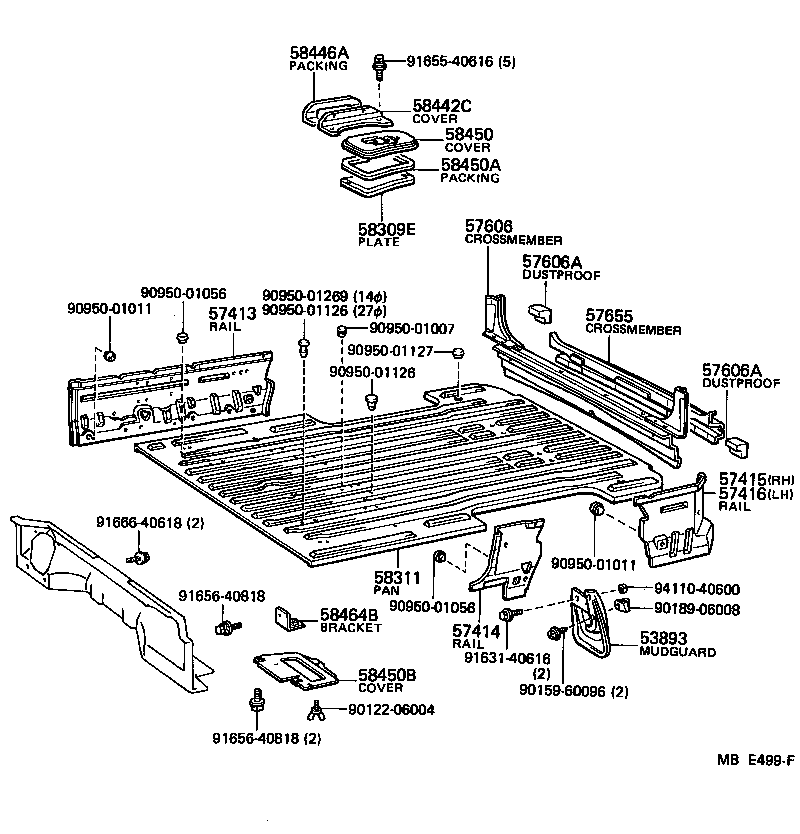

Figure MBA777I MBA777I 1979-10 → — Figure MBE499F MBE499F 1982-10 → — Figure MBA780D MBA780D 1979-10 → —

Part groups

PNCDescription
51770 Step Assy, Front, RH
51780 Step Assy, Front, LH
53893 Mudguard, Rear
57311 Outrigger, NO.1 RH
57312 Outrigger, NO.1 LH
57313 Outrigger, NO.2 RH
57314 Outrigger, NO.2 LH
57315 Outrigger, NO.3 RH
57316 Outrigger, NO.3 LH
57337 Outrigger, Rear RH
57338 Outrigger, Rear LH
57413 Rail, Floor Side, Center RH
57414 Rail, Floor Side, Center LH
57415 Rail, Floor Side, Rear RH
57416 Rail, Floor Side, Rear LH
57606 Crossmember Sub-assy, Rear Floor Rear, Inner
57606A Dust Proof(FOR REAR CROSSMEMBER)
57655 Member, Rear Floor Cross, NO.5
58309E Plate Sub-assy, Rear Floor
58311 Pan, Rear Floor
58442C Cover, Battery Service Hole, Sub
58446A Packing, Battery Service Hole Cover, Sub
58450 Cover Assy, Battery Service Hole
58450B Cover Assy, Air Cleaner Service Hole
58464B Bracket, Air Cleaner Service Hole Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
