Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

21 part groups · 7 illustrations

Illustrations

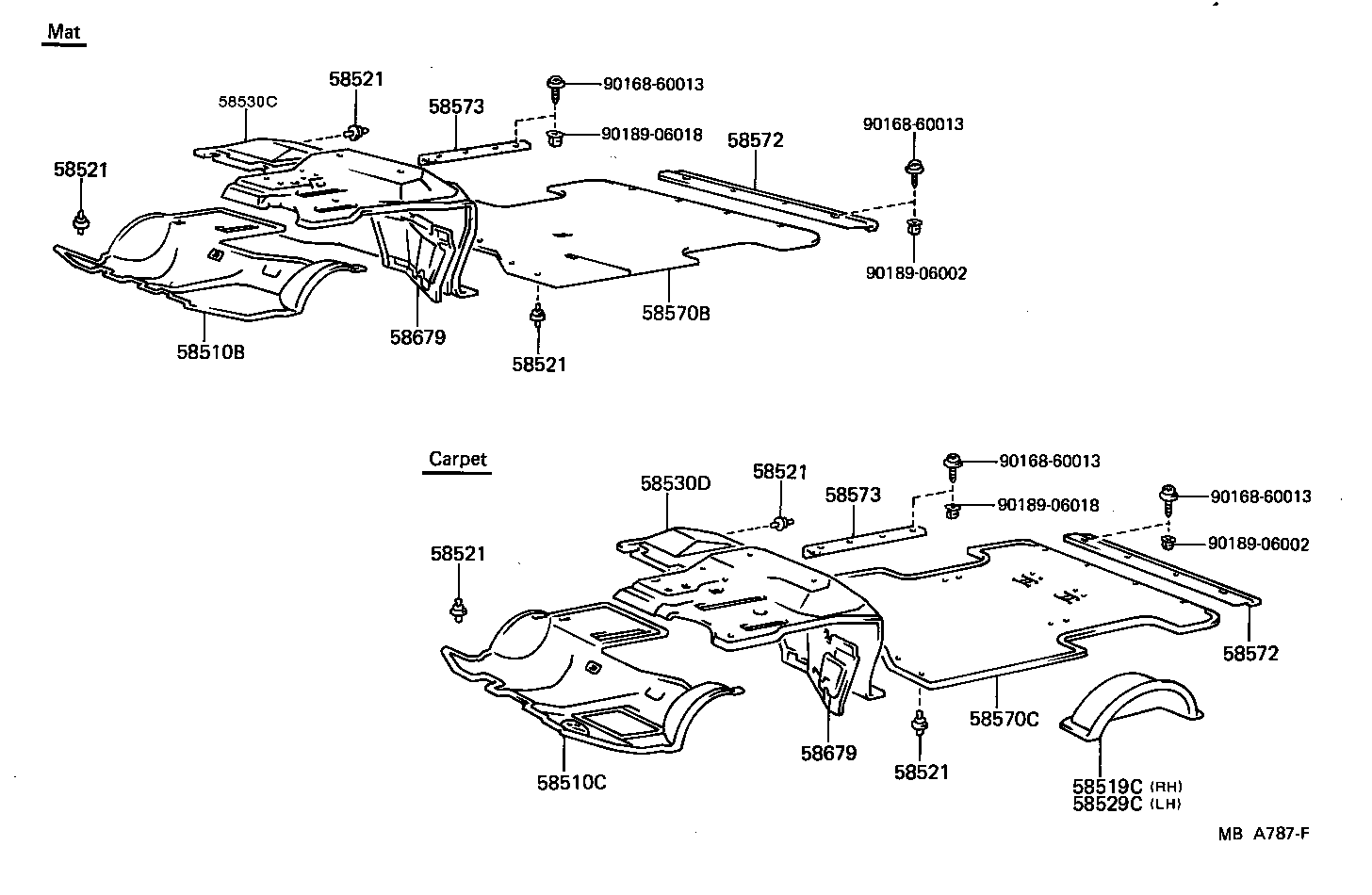

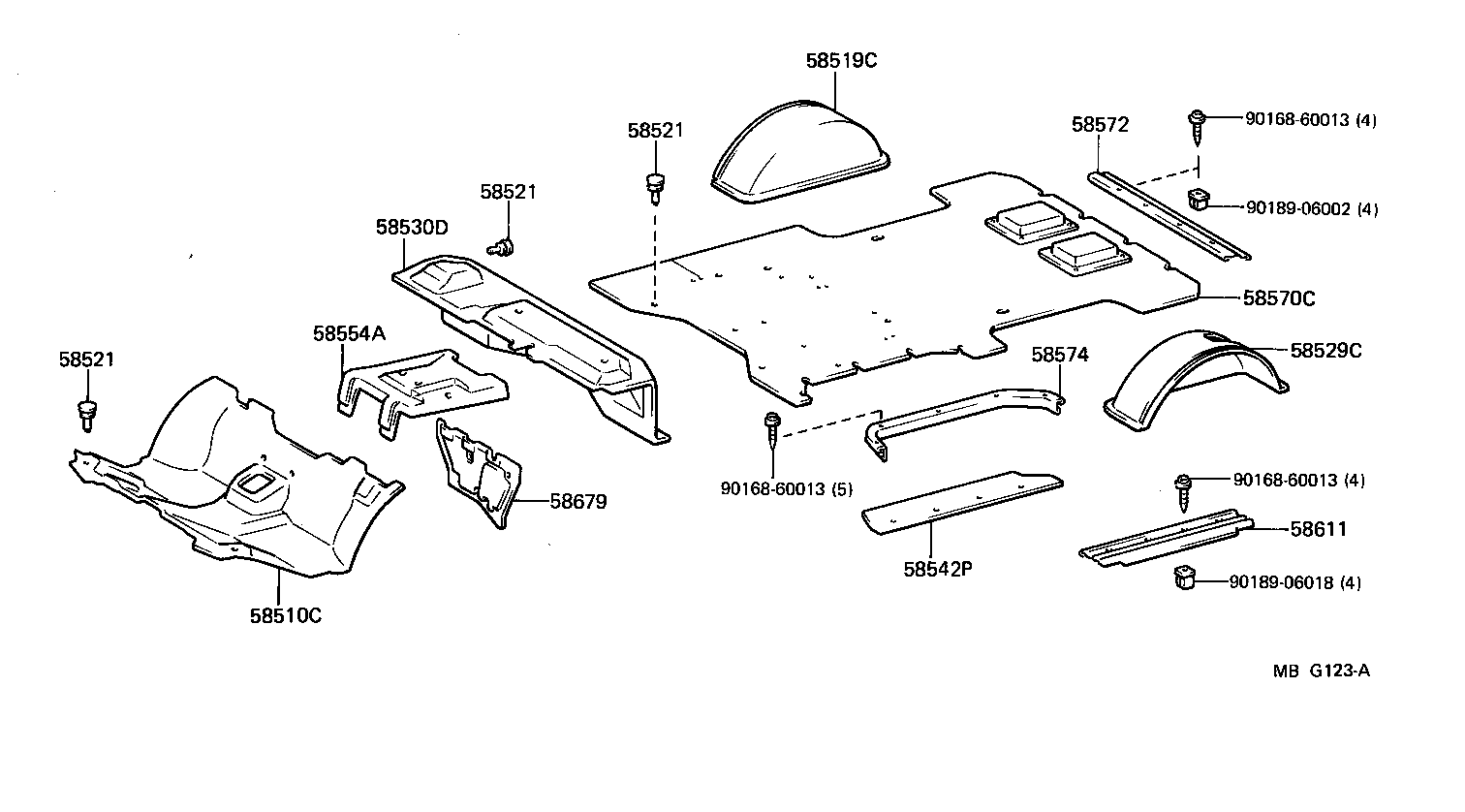

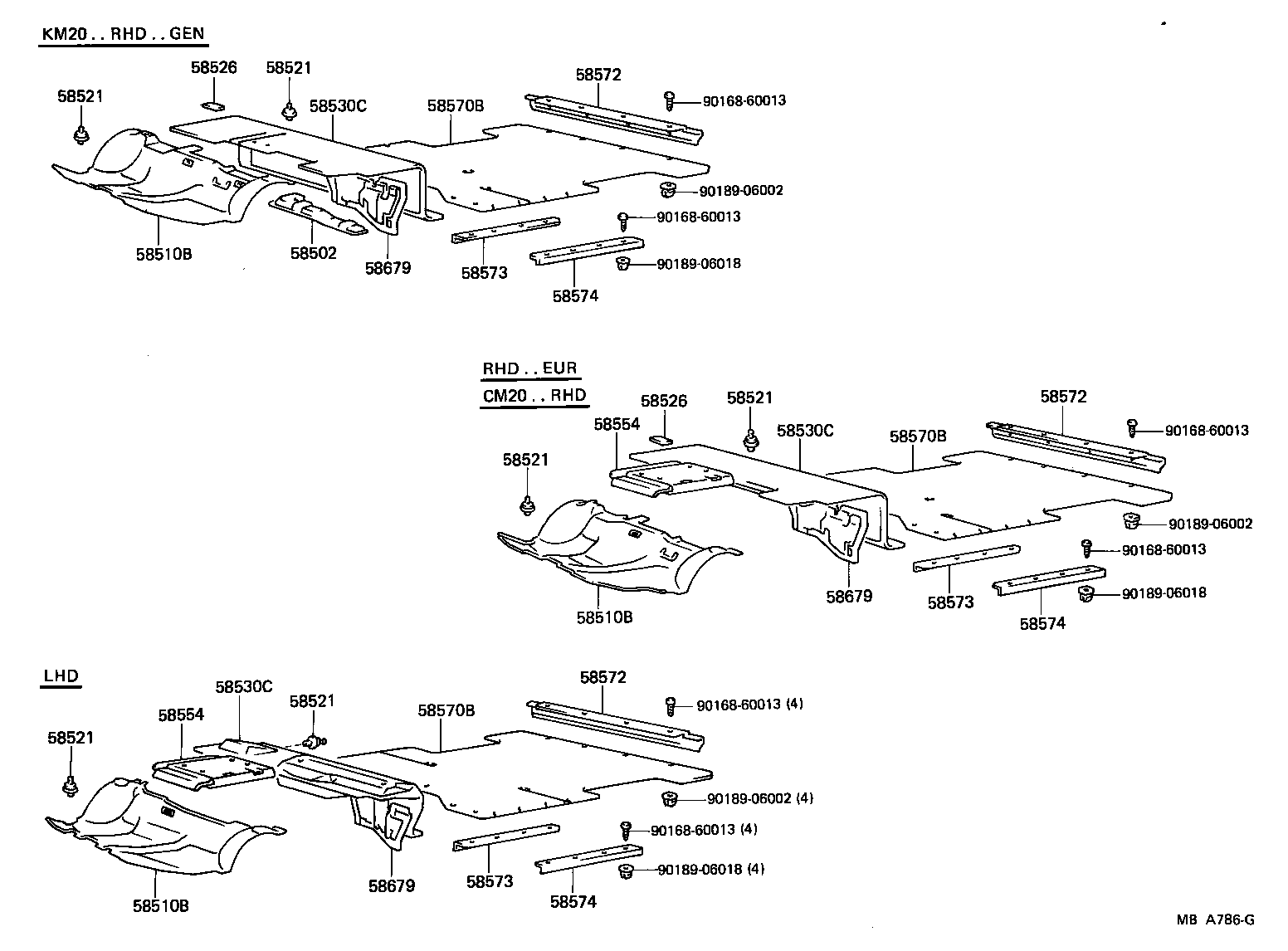

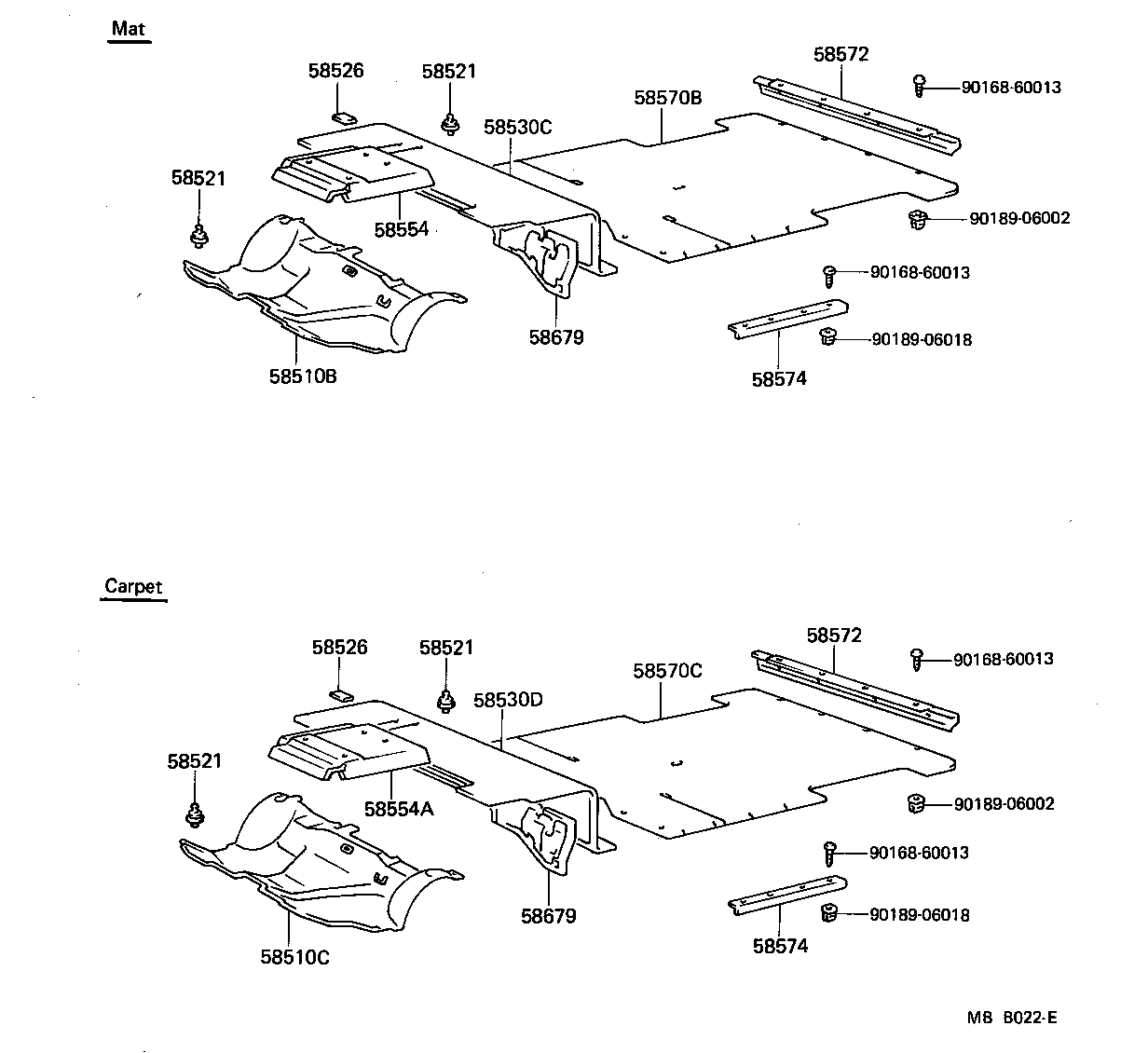

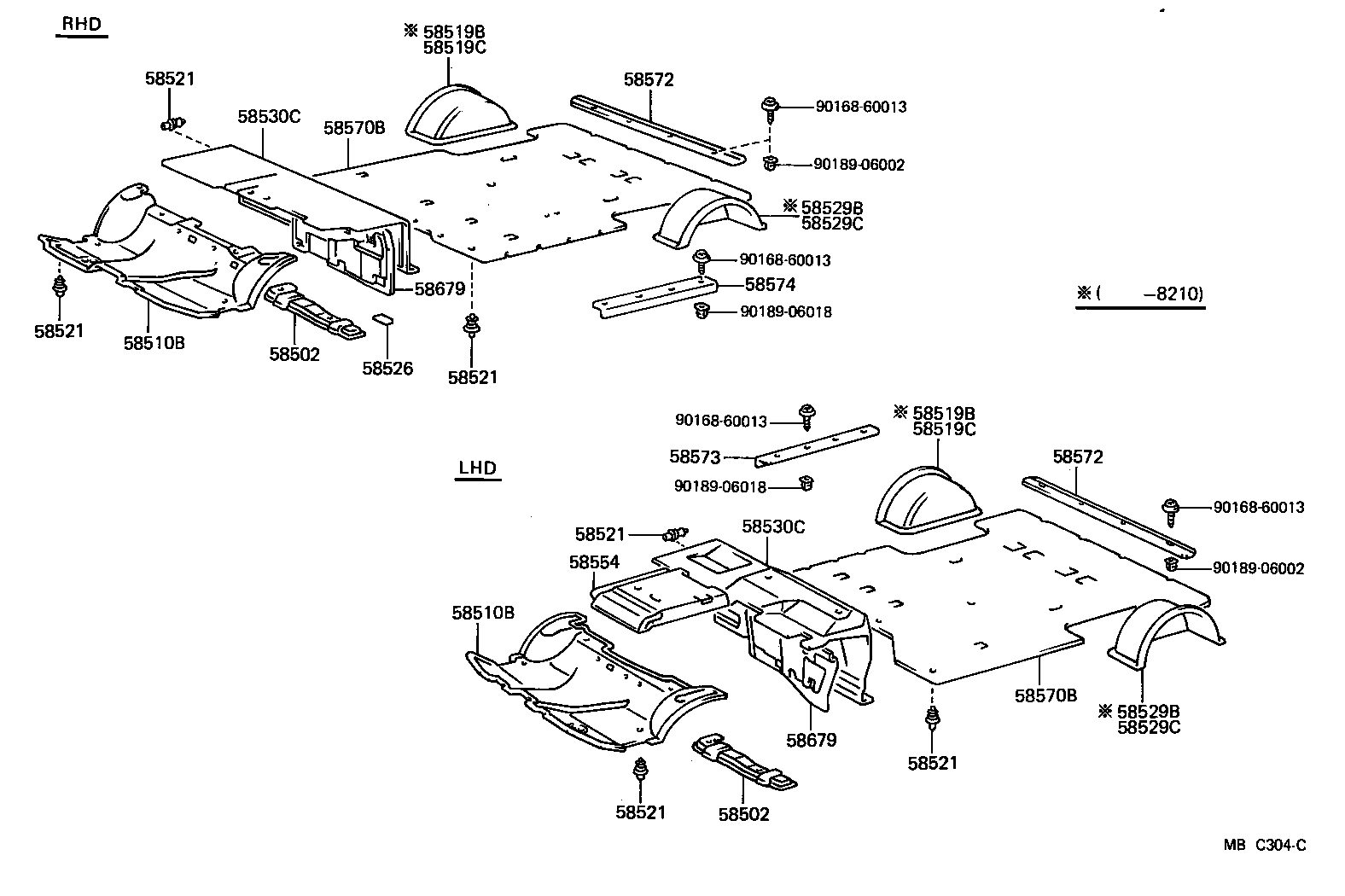

Figure MBA785B MBA785B 1979-10 → 1982-10 Figure MBA786G MBA786G 1979-10 → — Figure MBB022E MBB022E 1979-10 → — Figure MBB022E MBB022E 1984-02 → — Figure MBA787F MBA787F 1979-10 → — Figure MBG123A MBG123A 1983-11 → — Figure MBC304C MBC304C 1980-12 → —

Part groups

PNCDescription
58502 Mat Assy, Engine Service Hole Cover
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58519B Mat, Rear Wheel House, RH
58519C Carpet, Rear Wheel House, RH
58521 Hook, Male, NO.1
58526 Hook, Male, NO.2
58529B Mat, Rear Wheel House, LH
58529C Carpet, Rear Wheel House, LH
58530C Mat, Front Floor, Rear
58530D Carpet, Front Floor, Rear
58542P Mat, Step, LH
58554 Mat, Center Console
58554A Carpet, Center Console
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58572 Set Plate, Rear Floor Mat, Rear
58573 Set Plate, Rear Floor Mat Side, Front RH
58574 Set Plate, Rear Floor Mat Side, Front LH
58611 Plate, Rear Floor Mat Set, Side
58679 Silencer, Header Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
