Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

13 part groups · 2 illustrations

Illustrations

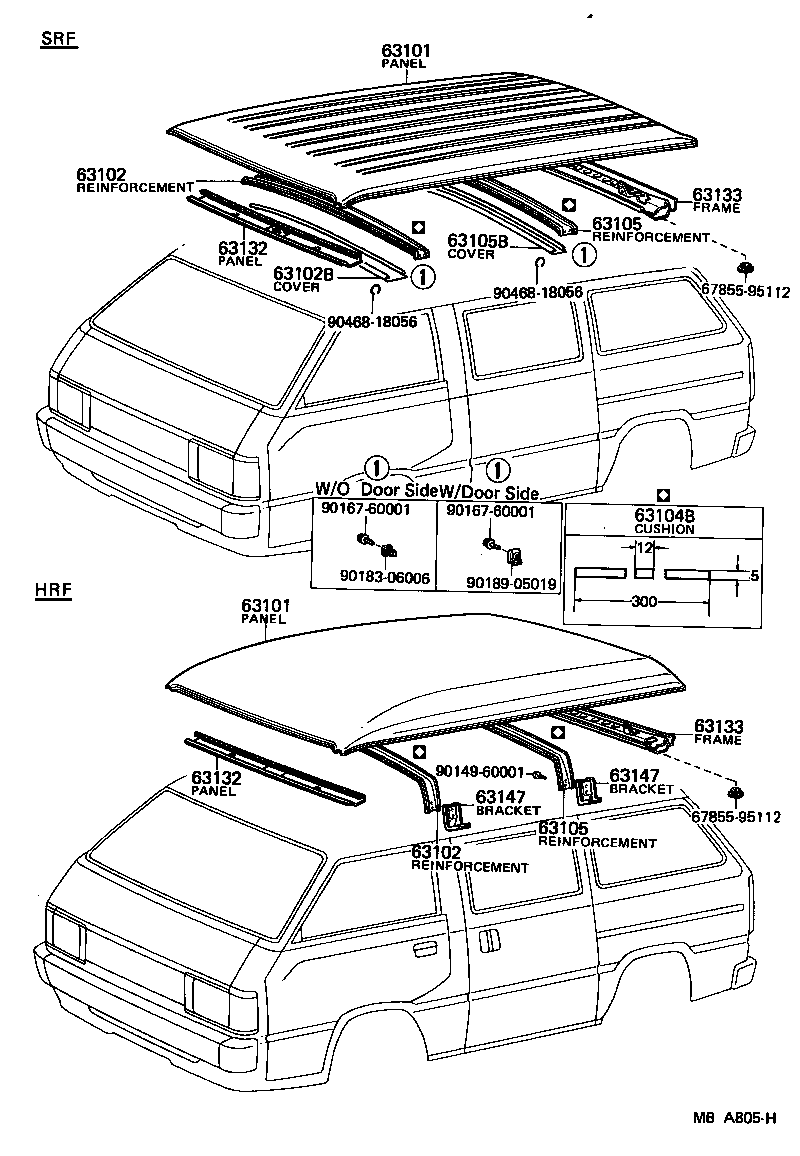

Figure MBA802 MBA802 1979-10 → 1982-10 Figure MBA805H MBA805H 1979-10 → —

Part groups

PNCDescription
63101 Panel Sub-assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63102B Cover, Roof Reinforcement, Front
63104B Cushion, Roof TO Roof Reinforcement
63105 Reinforcement Sub-assy, Roof Panel, Rear
63105B Cover, Roof Reinforcement, Rear
63132 Panel, Windshield Header, Inner
63133 Frame, Back Window Opening, Upper
63147 Bracket, Roof Panel Reinforcement
64110 Panel Assy, Front Body Back
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
