Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

30 part groups · 4 illustrations

Illustrations

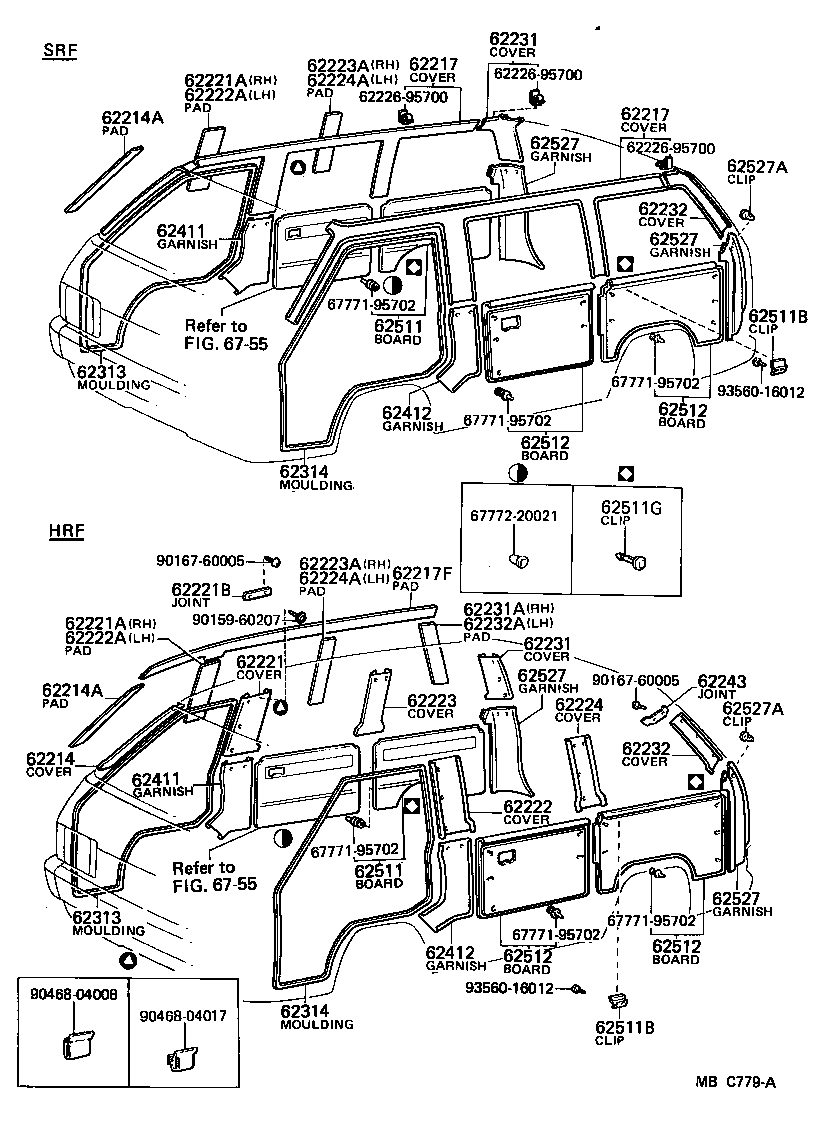

Figure MBA810C MBA810C 1979-10 → — Figure MBA810C MBA810C 1983-11 → — Figure MBC779A MBC779A 1981-08 → 1982-10 Figure MBG026A MBG026A 1983-11 → —

Part groups

PNCDescription
62214 Cover, Front Pillar, Inner
62214A Pad, Front Pillar, Inner
62217 Cover, Rail Roof Side, Inner Center
62217F Pad, Roof Side Rail, Center
62221 Cover, Center Pillar, Inner RH
62221A Pad, Center Pillar, Inner RH
62221B Joint, Center Pillar
62222 Cover, Center Pillar, Inner LH
62222A Pad, Center Pillar, Inner LH
62223 Cover, Quarter Lock Pillar, Inner, RH
62223A Pad, Quarter Lock Pillar, Inner RH
62224 Cover, Quarter Lock Pillar, Inner LH
62224A Pad, Quarter Lock Pillar Inner LH
62231 Cover, Quarter Pillar, RH
62231A Pad, Quarter Pillar, RH
62232 Cover, Quarter Pillar, LH
62232A Pad, Quarter Pillar, LH
62243 Joint, Quarter Inner Cover
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511G Clip (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62527 Garnish, Rear Pillar Side
62527A Clip, Rear Pillar Side Garnish
64769 Case Sub-assy, Tool Bag
64769A Cover Assy, Side Trim Tool Bag
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
