Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

26 part groups · 2 illustrations

Illustrations

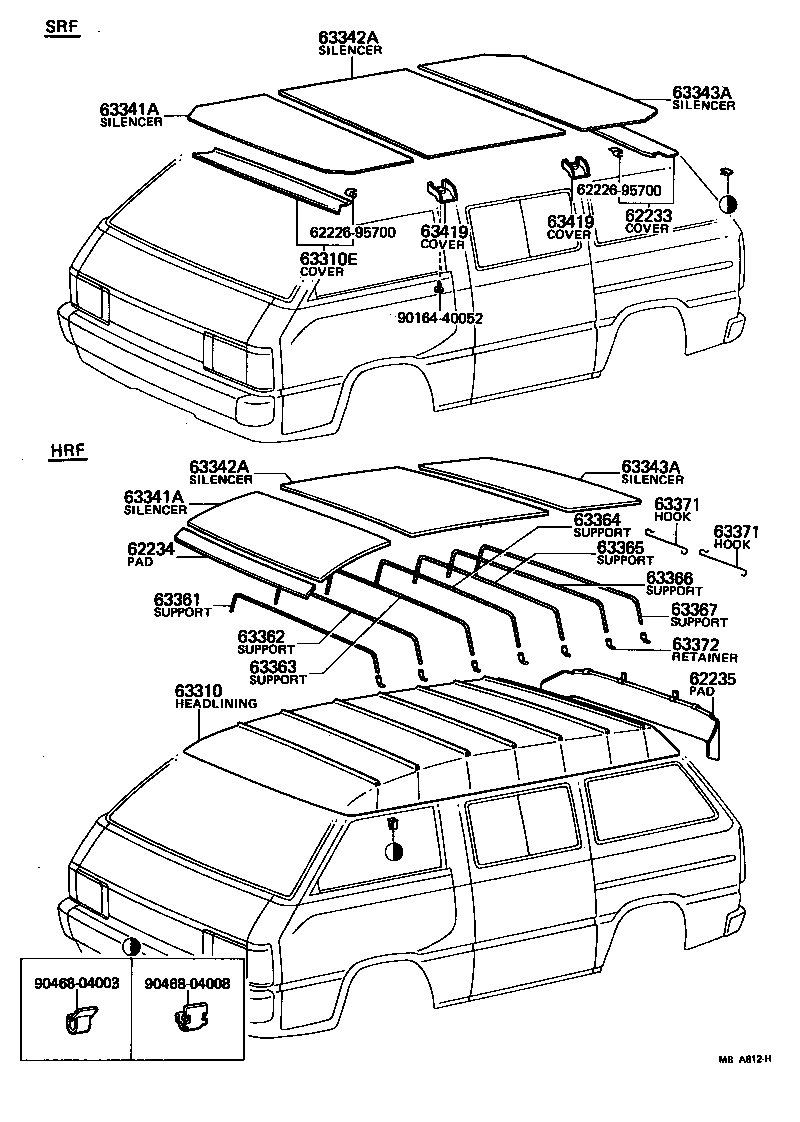

Figure MBA885C MBA885C 1979-10 → — Figure MBA812H MBA812H 1981-08 → 1982-10

Part groups

PNCDescription
62233 Cover, Frame Back Door Opening, Upper
62234 Pad, Header Inner
62235 Pad, Frame Back Door Opening, Upper
63310 Headlining Assy, Roof
63310E Cover, Header Inner
63341A Silencer, Roof, NO.1
63342A Silencer, Roof, NO.2
63343A Silencer, Roof, NO.3
63344A Silencer, Roof, NO.4
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63367 Support, Roof Headlining, NO.7
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63393 Trim, Roof Headlining, Center
63394B Clip(FOR ROOF HEADLINING TRIM GARNISH)
63414 Ornament, Roof Side, NO.1
63415 Ornament, Roof Side, NO.2
63416 Ornament, Roof Side, NO.3
63419 Cover, Roof Reinforcement
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
