Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

81 part groups · 28 illustrations

Illustrations

MBA838D 1979-10 → 1982-10

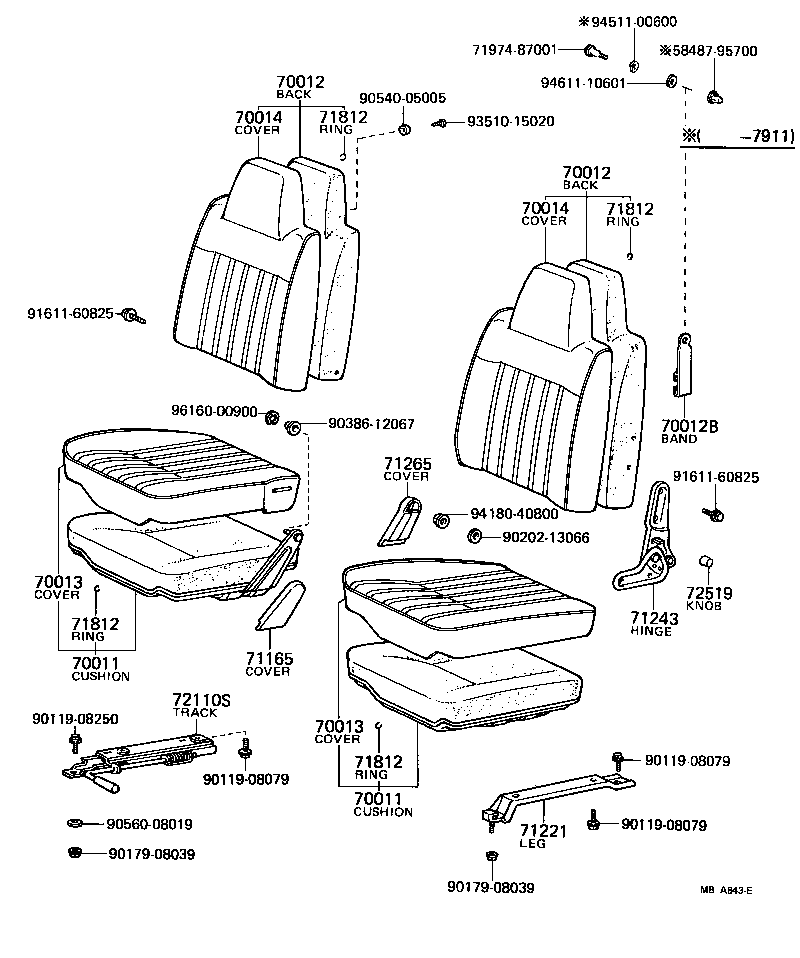

MBA843E 1979-10 → 1982-10

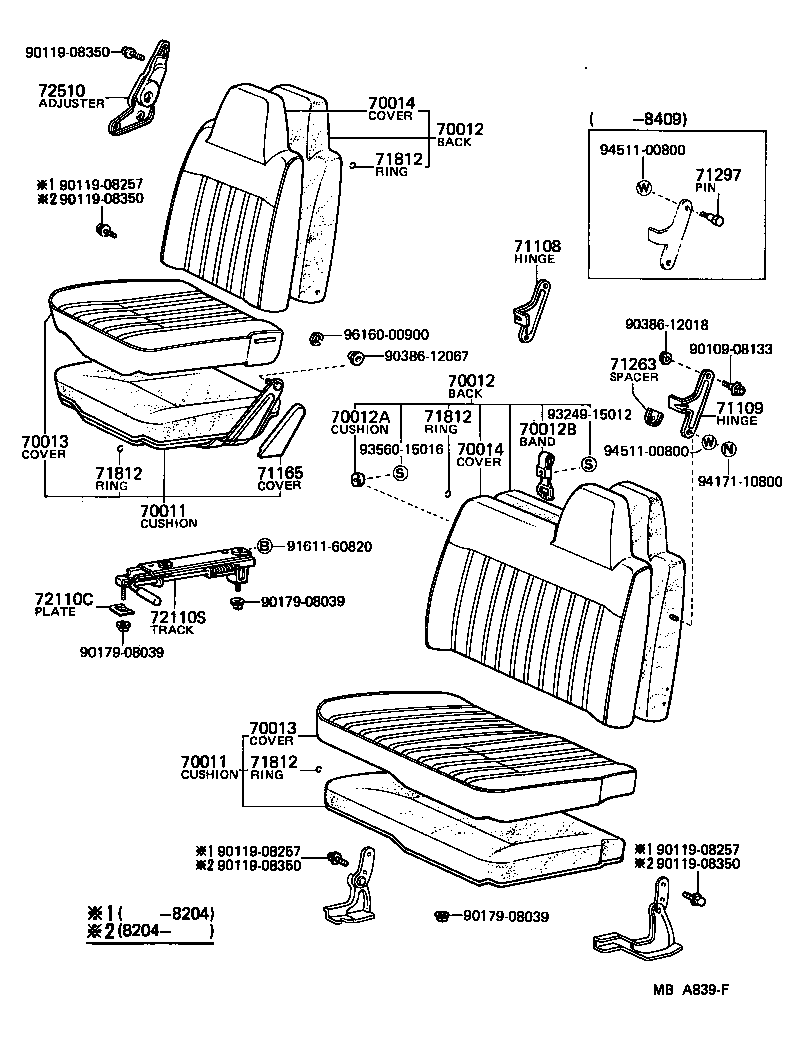

MBA839F 1979-10 → —

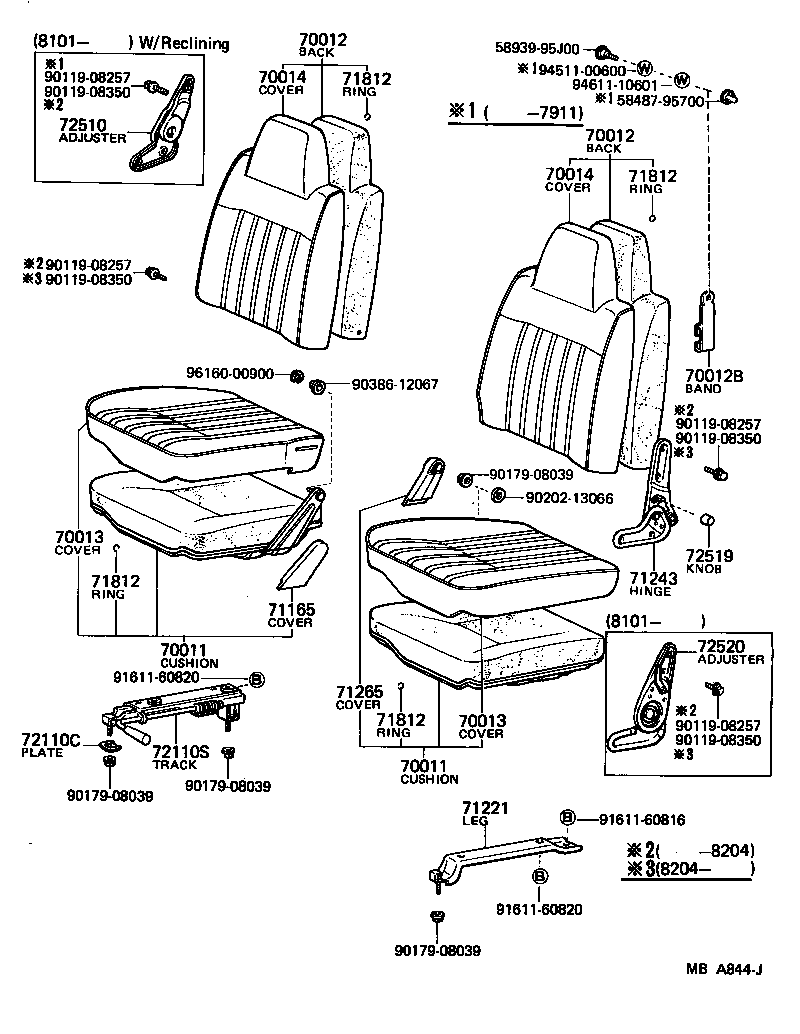

MBA844J 1979-10 → 1982-10

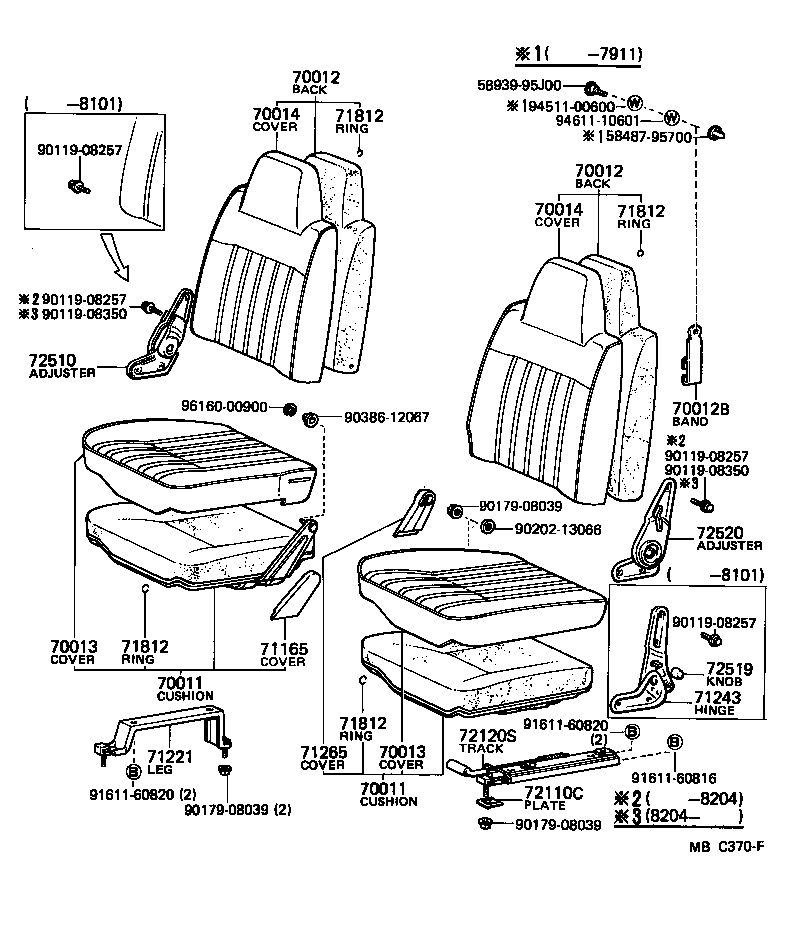

MBC370F 1979-10 → 1981-01

MBC370F 1981-01 → —

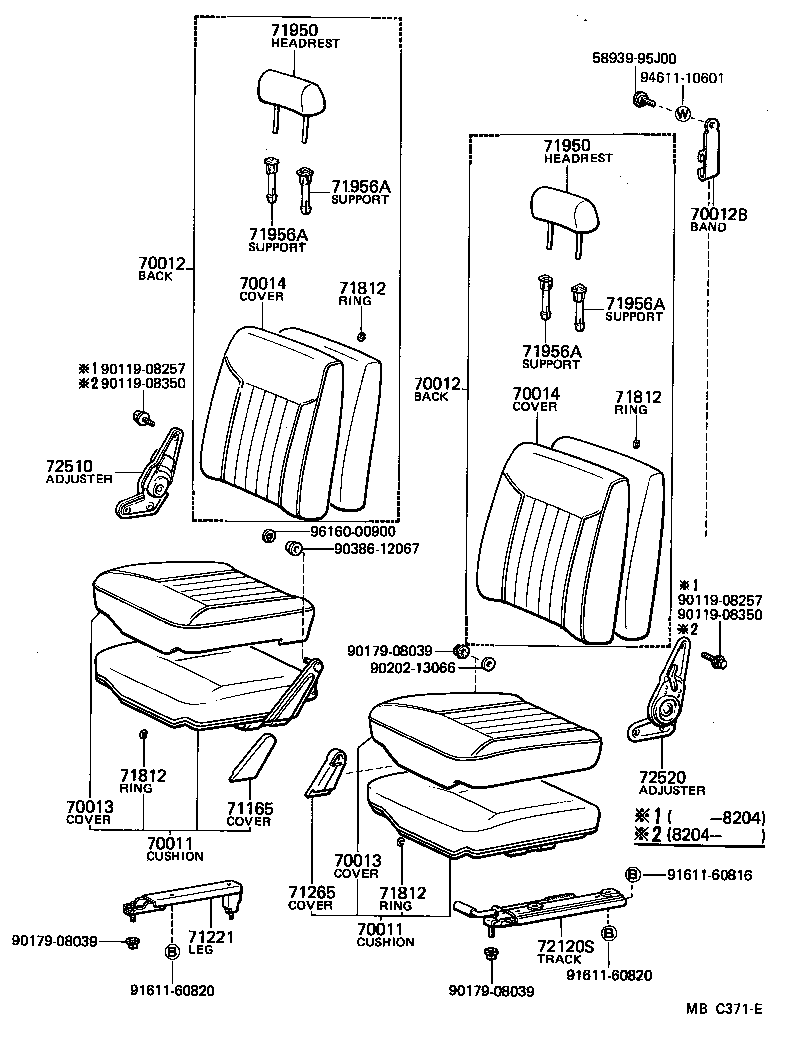

MBC371E 1981-01 → —

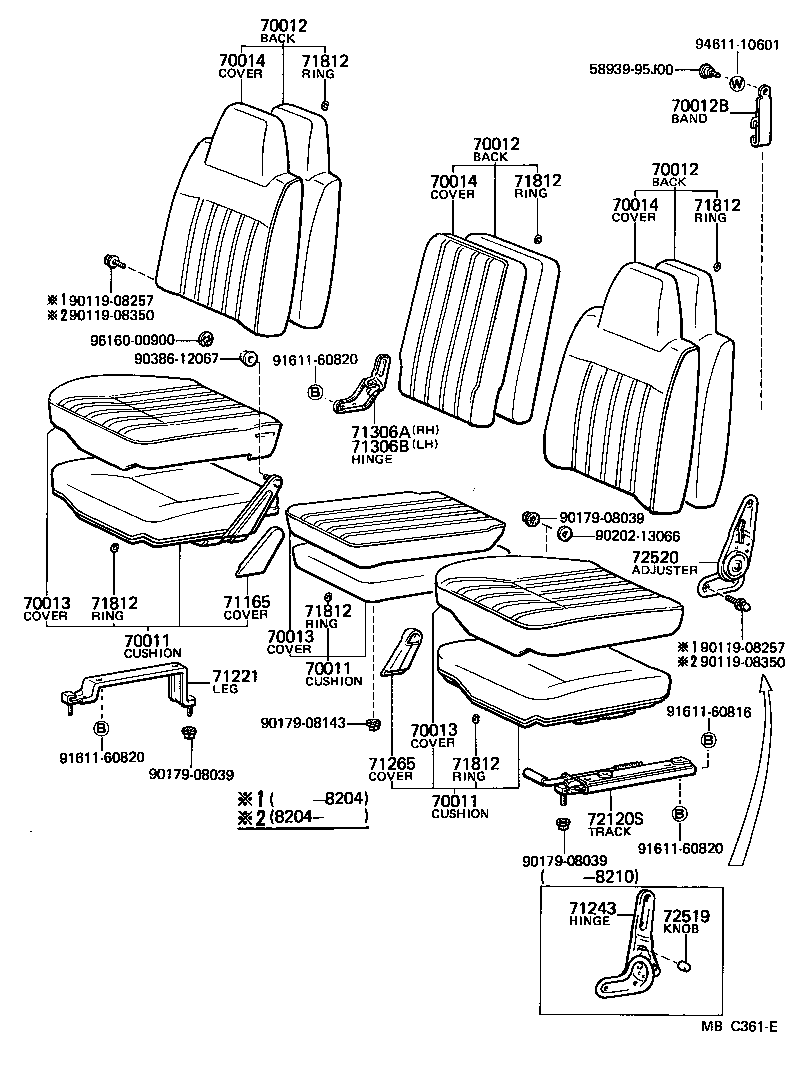

MBC361E 1980-12 → 1981-01

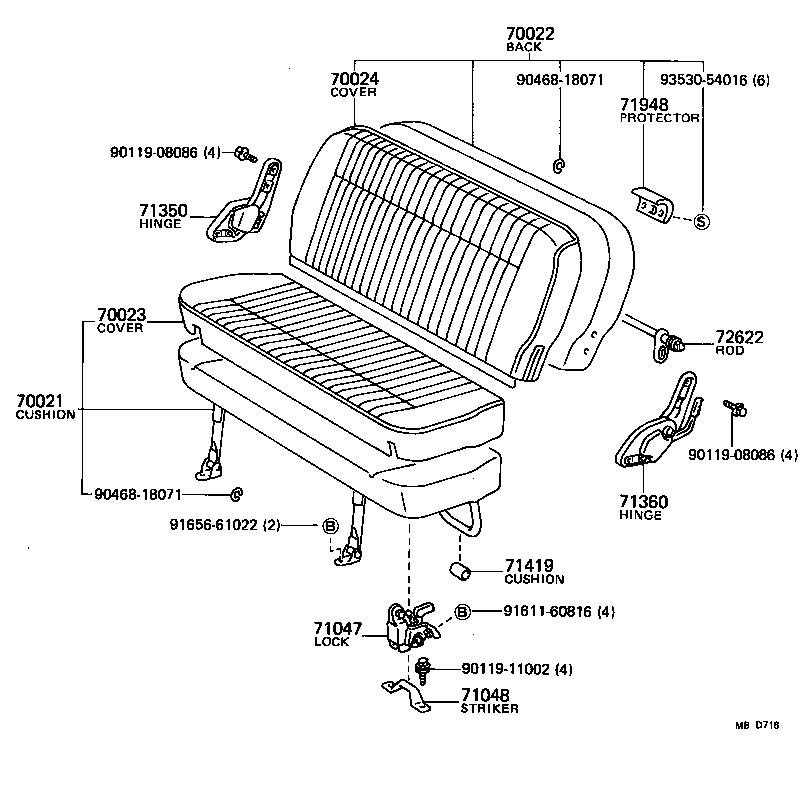

MBD716 1982-04 → 1982-10

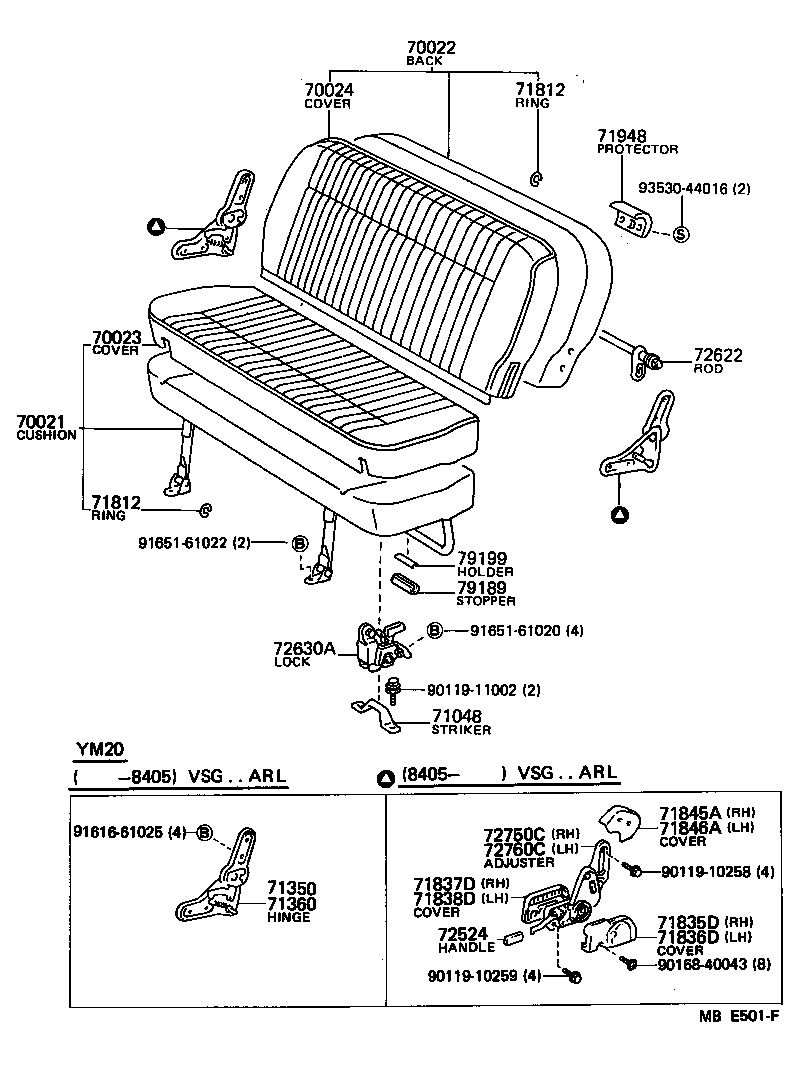

MBE501F 1982-10 → —

MBE501F 1984-02 → —

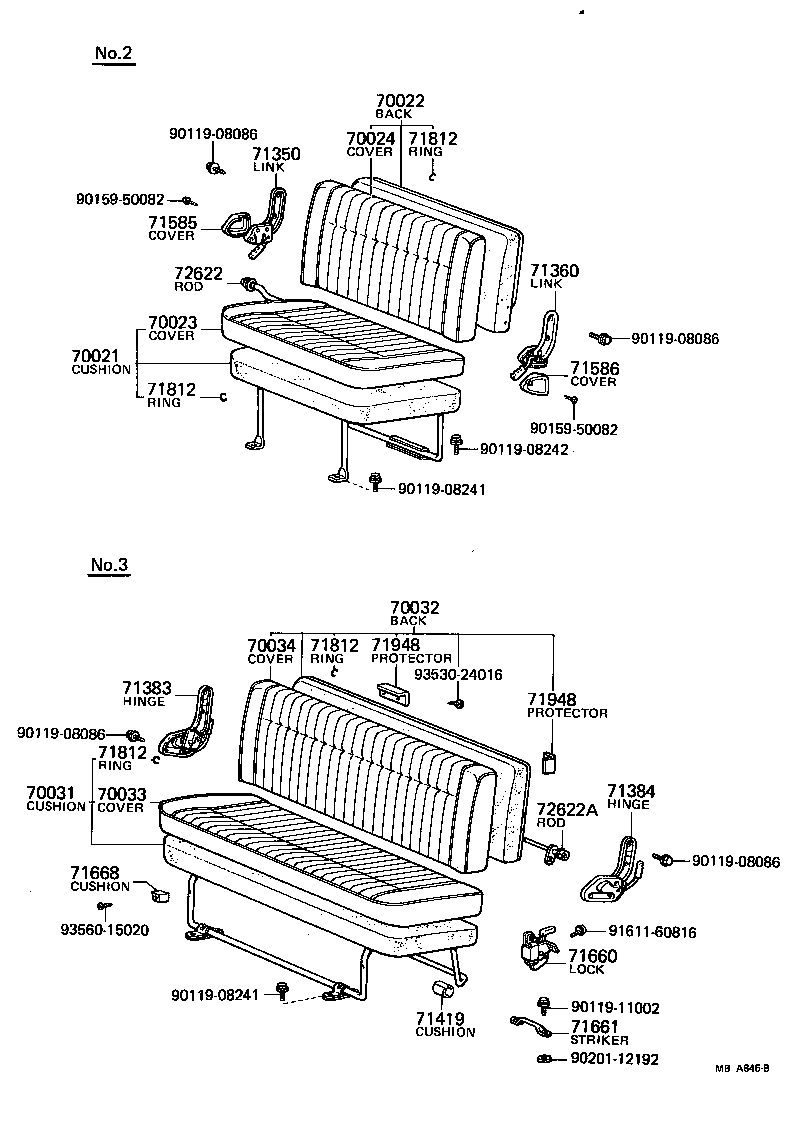

MBA846B 1979-10 → 1981-01

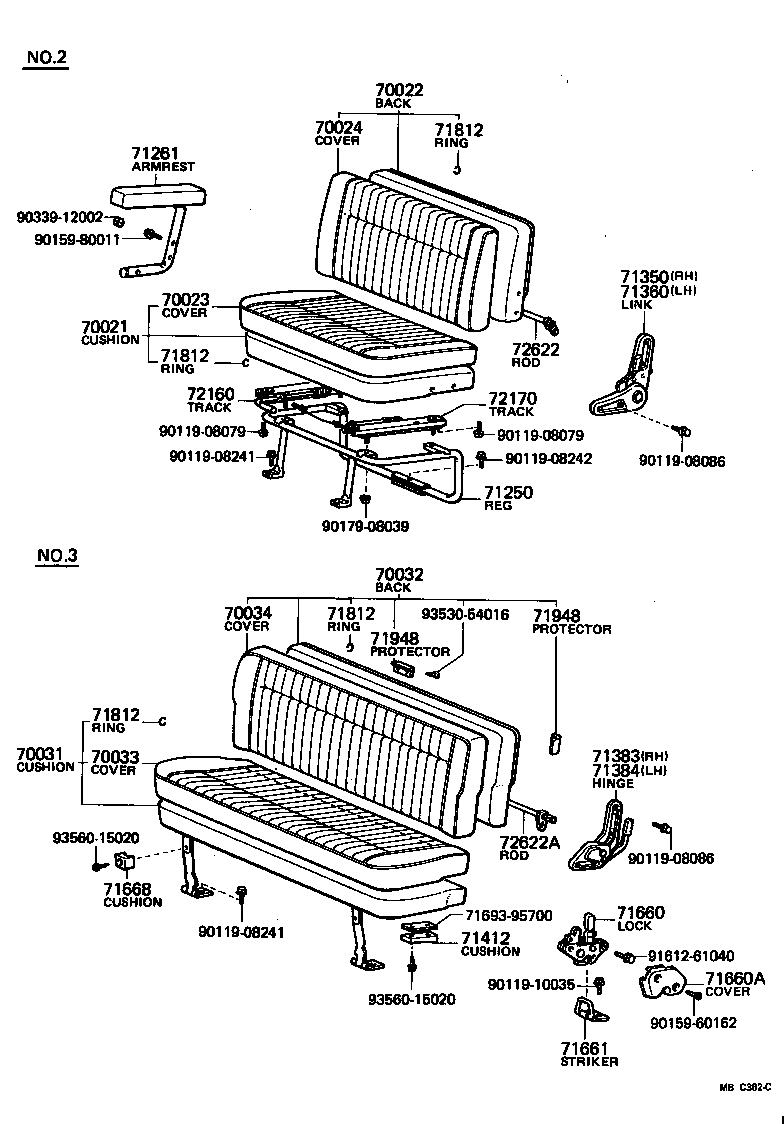

MBC362C 1981-01 → 1982-10

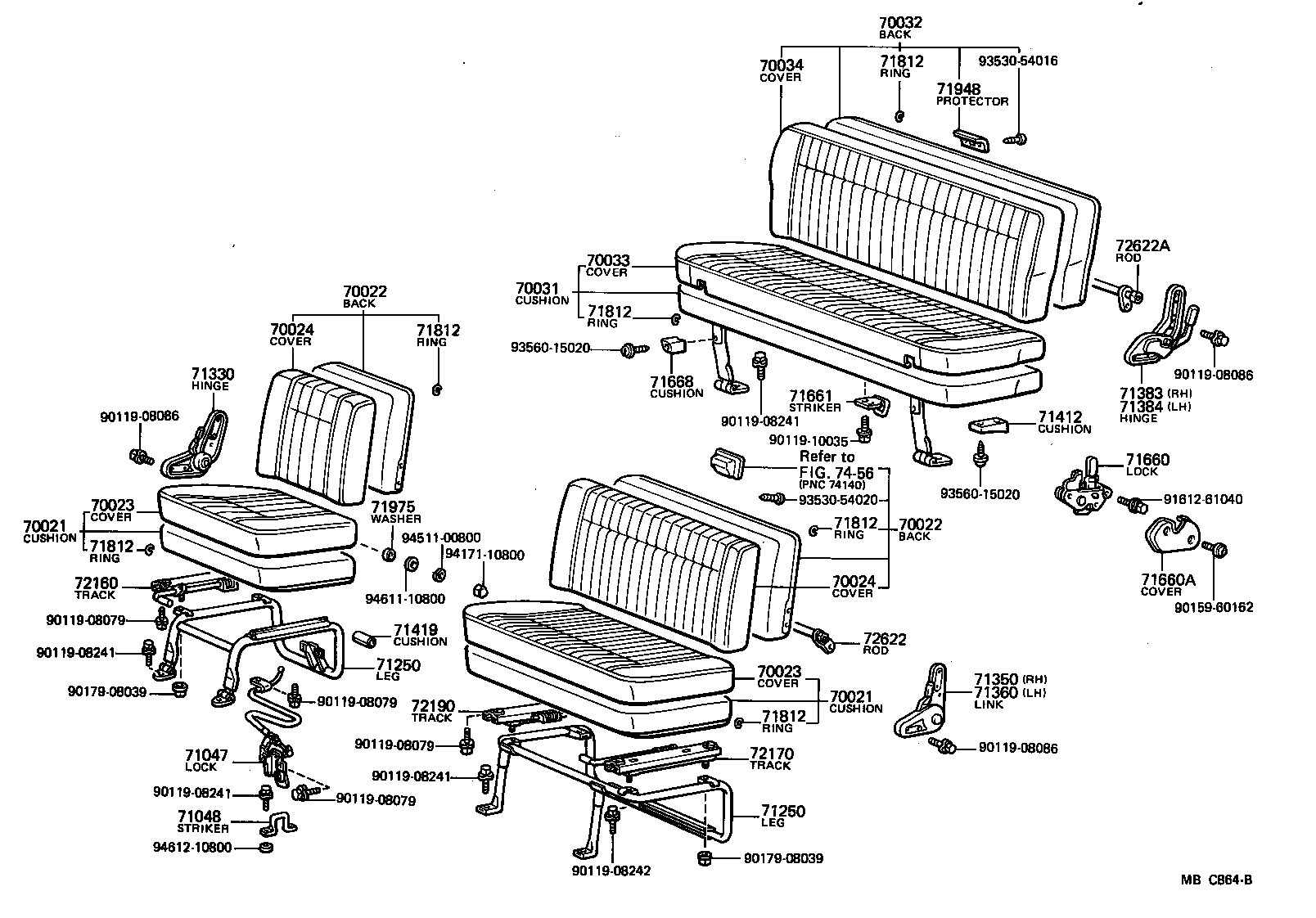

MBC864B 1981-08 → 1982-10

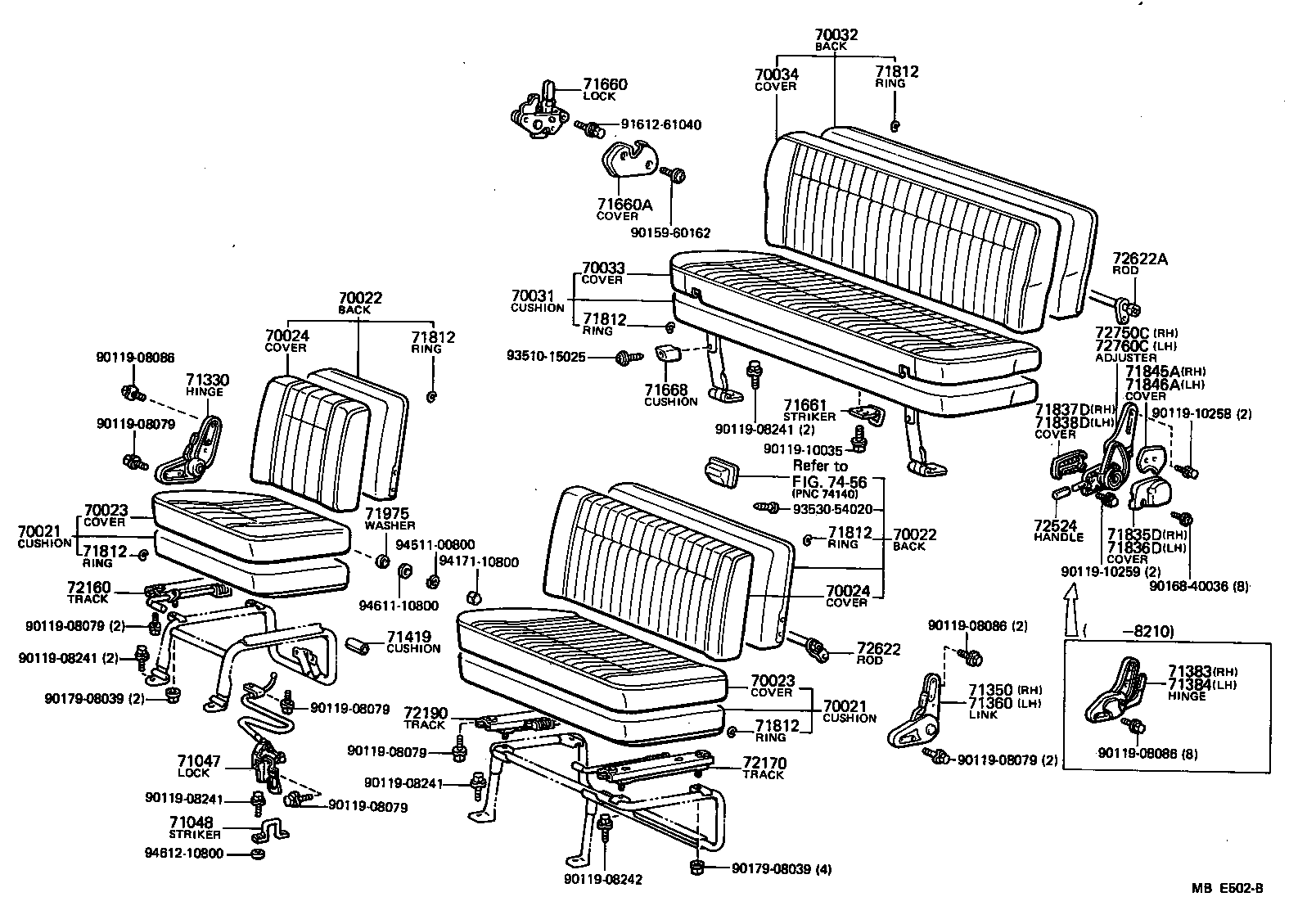

MBE502B 1982-10 → —

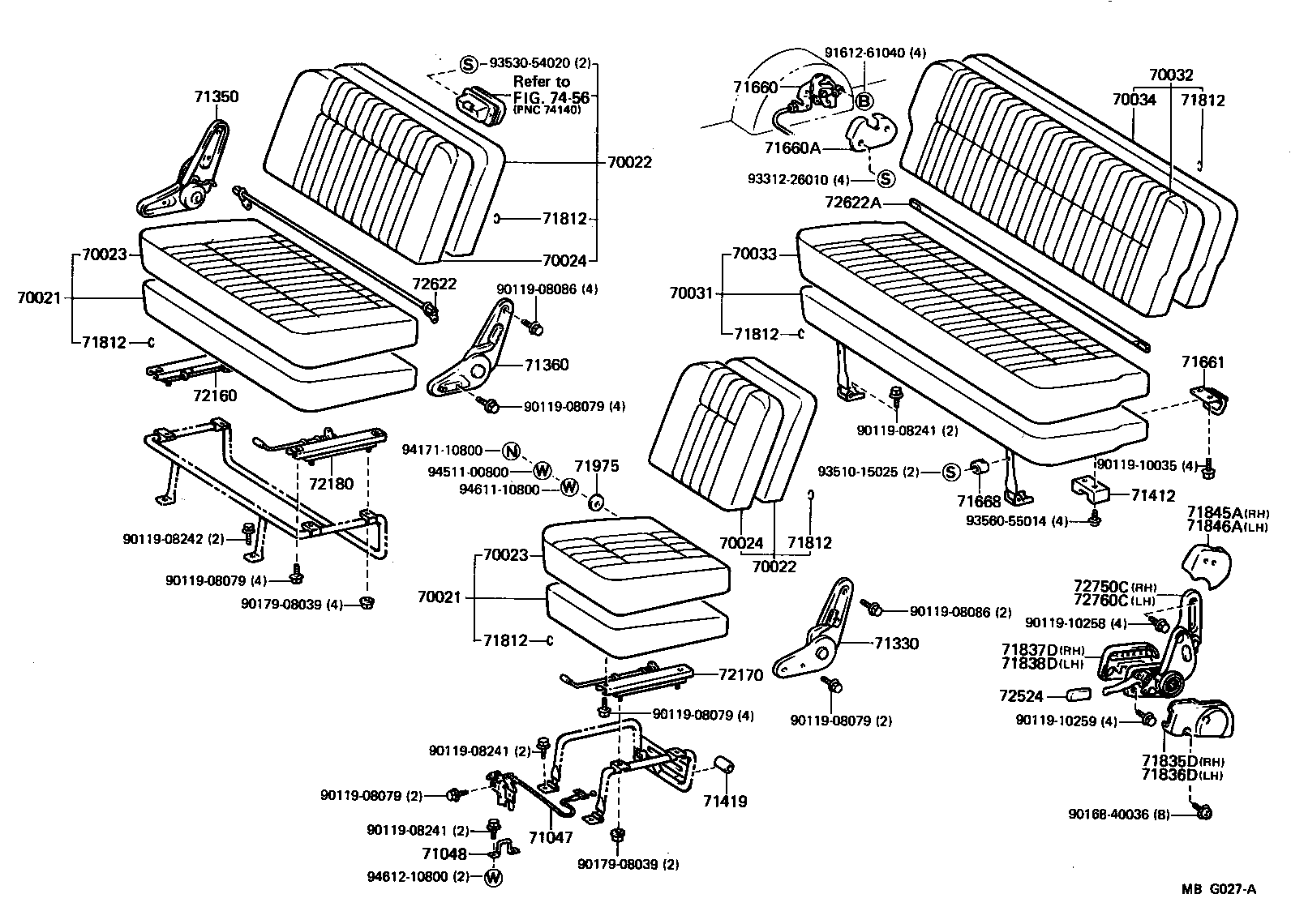

MBG027A 1983-11 → —

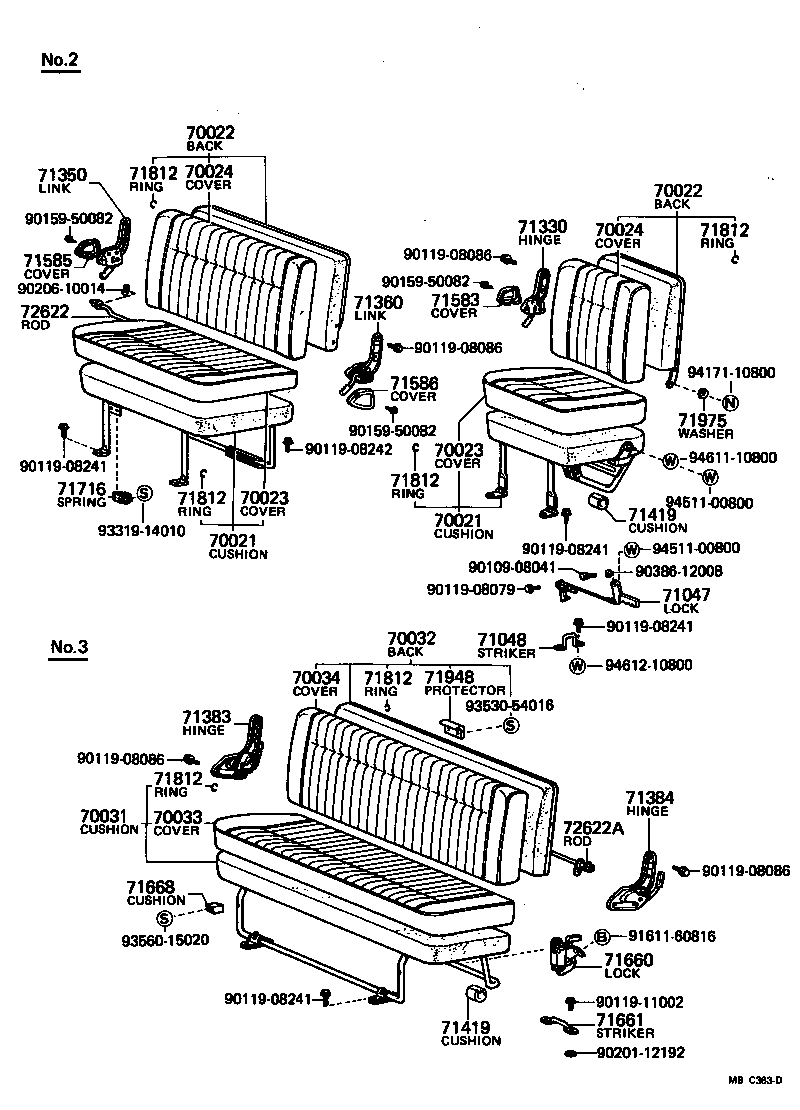

MBC363D 1981-01 → 1982-10

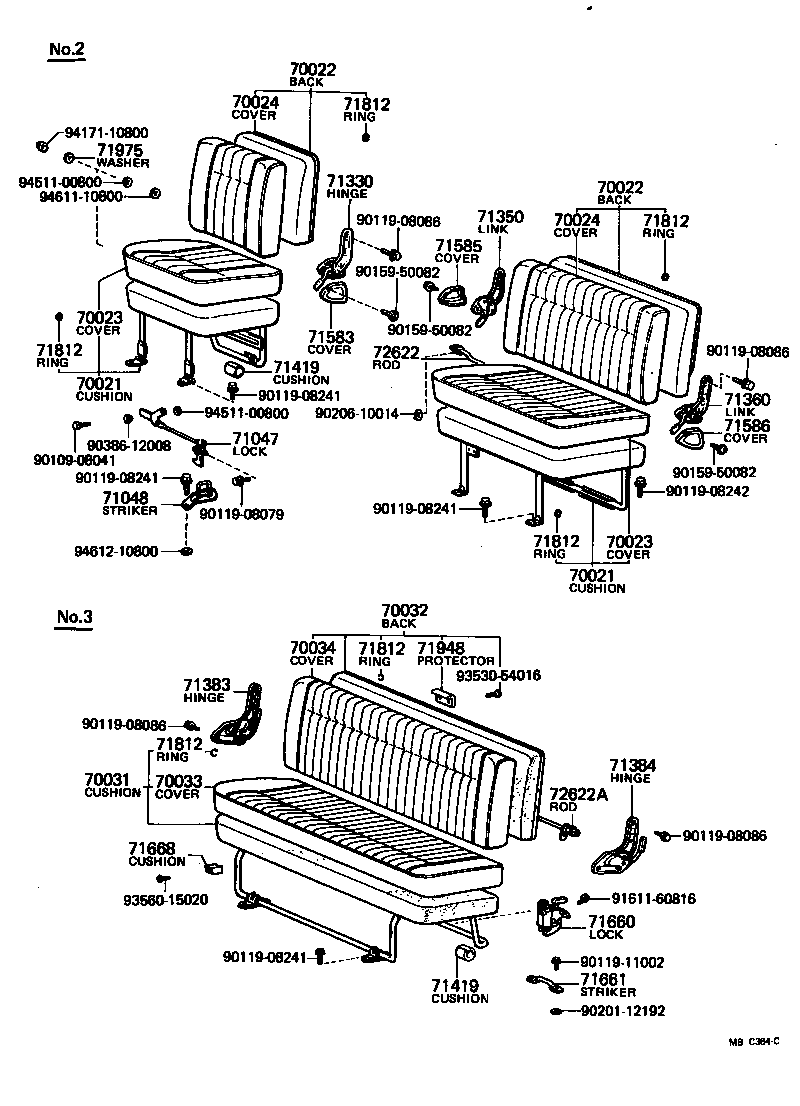

MBC364C 1980-12 → 1982-10

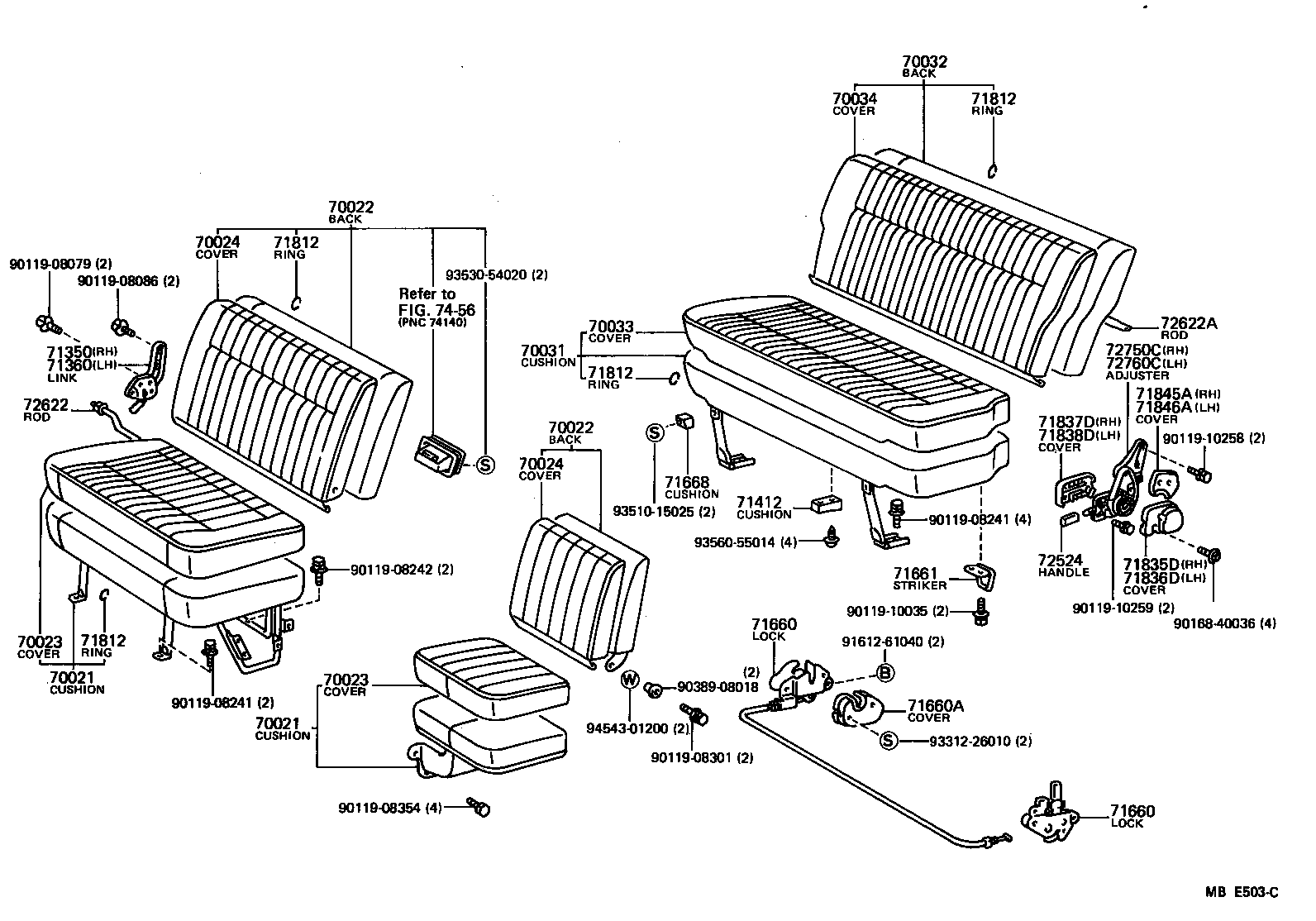

MBE503C 1982-10 → —

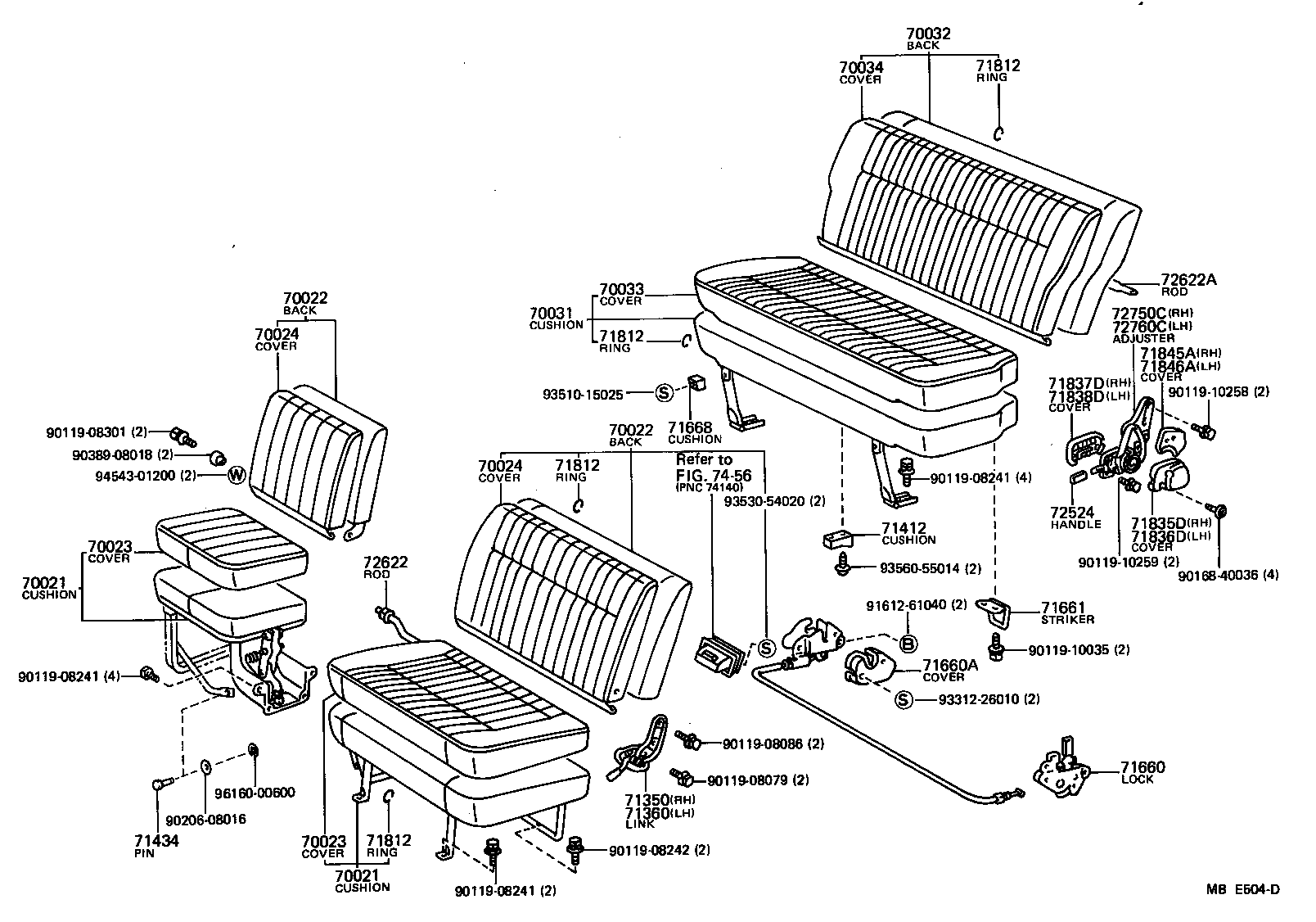

MBE504D 1982-10 → —

Part groups

PNC	Description
70011	Cushion Assy, NO.1 Seat
70012	Back Assy, NO.1 Seat
70012A	Cushion(FOR NO.1 SEATBACK)
70012B	Band, Engine Service Hole Cover Support
70013	Cover Assy, NO.1 Seat Cushion
70014	Cover Assy, NO.1 Seatback
70021	Cushion Assy, NO.2 Seat
70022	Back Assy, NO.2 Seat
70023	Cover Assy, NO.2 Seat Cushion
70024	Cover Assy, NO.2 Seatback
70031	Cushion Assy, NO.3 Seat
70032	Back Assy, NO.3 Seat
70033	Cover Assy, NO.3 Seat Cushion
70034	Cover Assy, NO.3 Seatback
71047	Lock Sub-assy, Rear Seat Leg
71048	Striker Sub-assy, Rear Seat Lock
71108	Hinge Sub-assy, Front Seatback, Upper RH
71109	Hinge Sub-assy, Front Seatback, Upper LH
71165	Cover, Front RH Seat Hinge
71221	Leg, Front Seat
71243	Hinge, Passenger Seatback, LH
71250	Leg Assy, Rear NO.1 Seat
71261	Armrest, Seat
71263	Spacer, Front Seatback Hinge
71265	Cover, Front LH Seat Hinge
71297	Pin, Passenger Seatback Support
71306A	Hinge Sub-assy, Center Seat, RH
71306B	Hinge Sub-assy, Center Seat, LH
71330	Hinge Assy, Rear Seat Cushion
71350	Link Assy, Rear Seatback Cushion, RH
71360	Link Assy, Rear Seatback Cushion, LH
71381	Hinge, Rear Seatback Stop, NO.1
71382	Hinge, Rear Seatback Stop, NO.2
71383	Hinge, Rear Seatback Stop, NO.3
71384	Hinge, Rear Seatback Stop, NO.4
71385	Spacer, Rear Seat Hinge
71397A	Cover, Center Seat Hinge
71412	Cushion Rubber, Back Cushion Frame
71419	Cushion (FOR REAR SEAT LEG)
71434	Pin, Rear Seat Cushion Leg, Rear
71514	Pin, Rear Seatback Stopper
71583	Cover, Rear NO.1 Seat Hinge, RH
71585	Cover, Rear NO.2 Seat Hinge, RH
71586	Cover, Rear NO.2 Seat Hinge, LH
71660	Lock Assy, Rear NO.3 Seat
71660A	Cover, Rear NO.3 Seat Lock
71661	Striker, Rear NO.3 Seat Lock
71668	Cushion, Rear NO.3 Seat
71716	Spring, Jack Handle Support
71809	Stopper Sub-assy, Rear Seatback, LH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71835D	Cover, Rear Seat Reclining, Lower RH
71836D	Cover, Rear Seat Reclining, Lower LH
71837D	Cover, Rear Seat Reclining, Inner RH
71838D	Cover, Rear Seat Reclining, Inner LH
71845A	Cover, Rear Seat Reclining, Upper RH
71846A	Cover, Rear Seat Reclining, Upper LH
71948	Protector, Passenger Seatback
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
71975	Washer, Rear NO.1 Seat
72110C	Plate, Seat Track Set
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72180	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72510	Adjuster Assy, Reclining Seatback, RH
72519	Knob, Reclining Seatback Adjusting Arm
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72560	Lock Assy, Rear Seat
72622	Rod, Rear Seatback Stopper Connecting
72622A	Rod, Rear Seatback Stopper Connecting, NO.2
72630A	Lock Assy, Rear NO.1 Seat
72701	Bracket Sub-assy, Rear Seatback Stopper
72750C	Adjuster Assy, NO.3 Seat Reclining, RH
72760C	Adjuster Assy, NO.3 Seat Reclining, LH
79189	Stopper, NO.1 Seat Leg
79199	Holder, NO.1 Seat Leg Stopper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
