Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

14 part groups · 7 illustrations

Illustrations

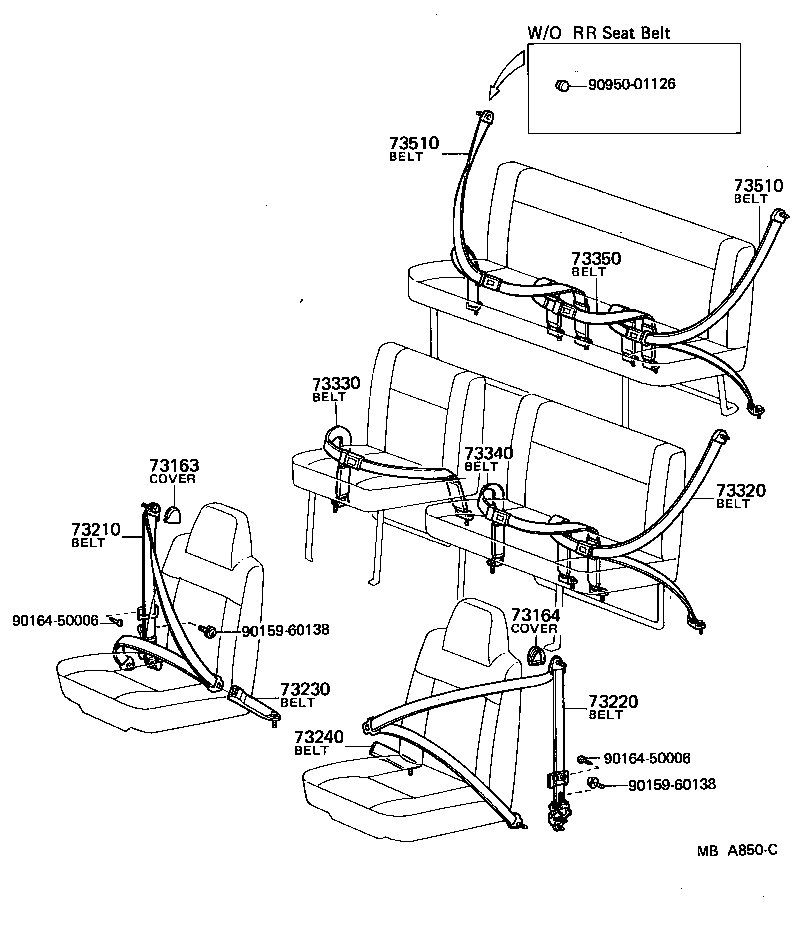

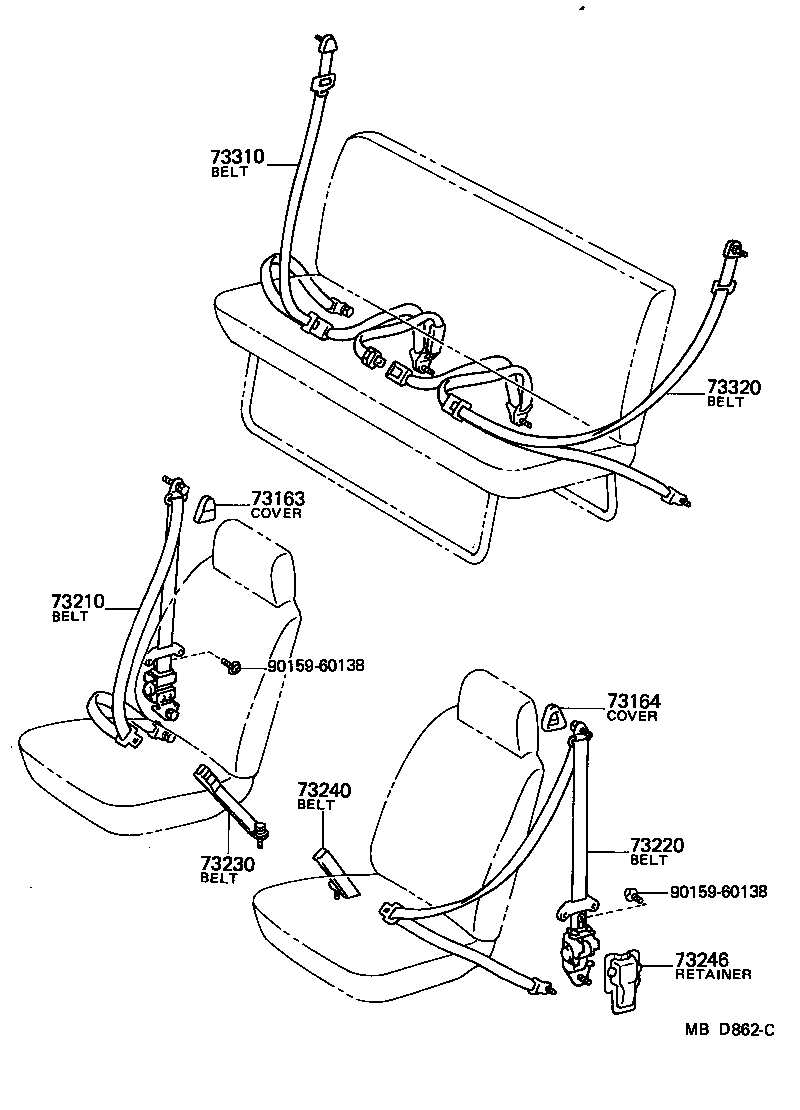

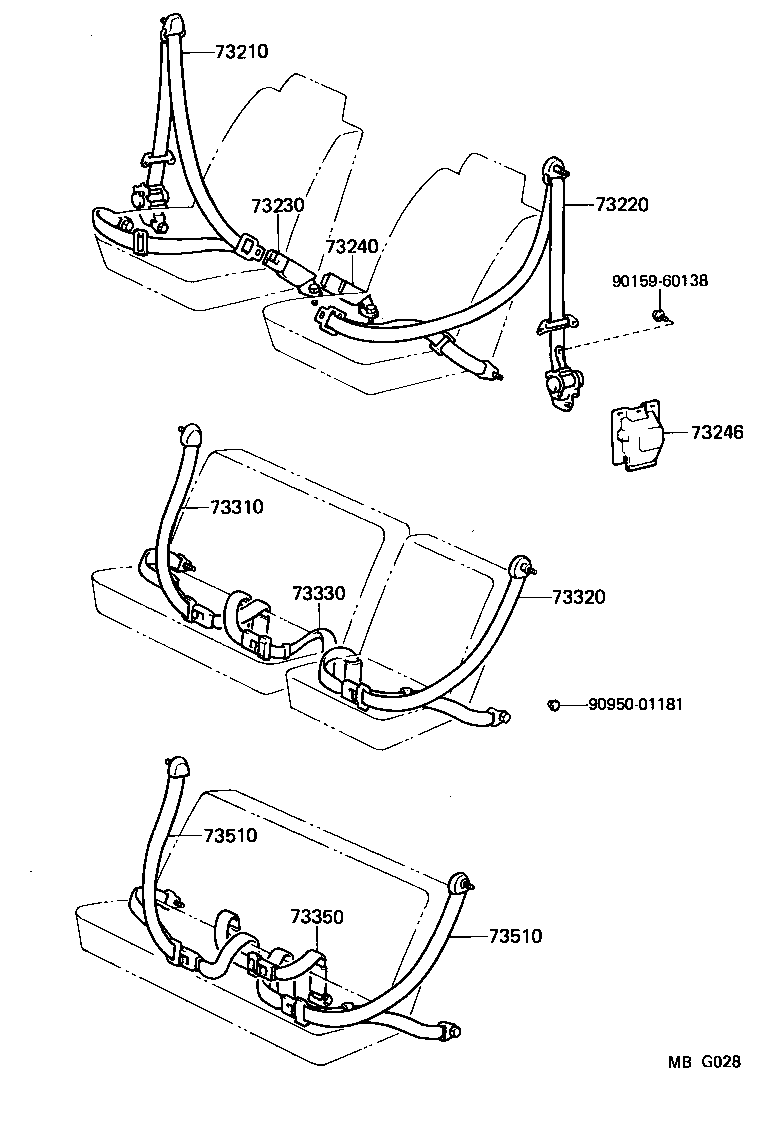

Figure MBA848F MBA848F 1979-10 → 1982-10 Figure MBA848F MBA848F 1979-10 → — Figure MBD862C MBD862C 1979-10 → — Figure MBD862C MBD862C 1982-10 → 1984-02 Figure MBD862C MBD862C 1984-02 → — Figure MBA850C MBA850C 1979-10 → — Figure MBG028 MBG028 1983-11 → —

Part groups

PNCDescription
72911 Cover, Seat Belt Retractor
73163 Cover, Front Seat Belt, RH
73164 Cover, Front Seat Belt, LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73246 Retainer, Seat Belt Retractor Cover, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73510 Belt Assy, Rear Seat 3 Point Type, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
