Toyota Liteace
1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe
Discontinued model
Data version 1986-02

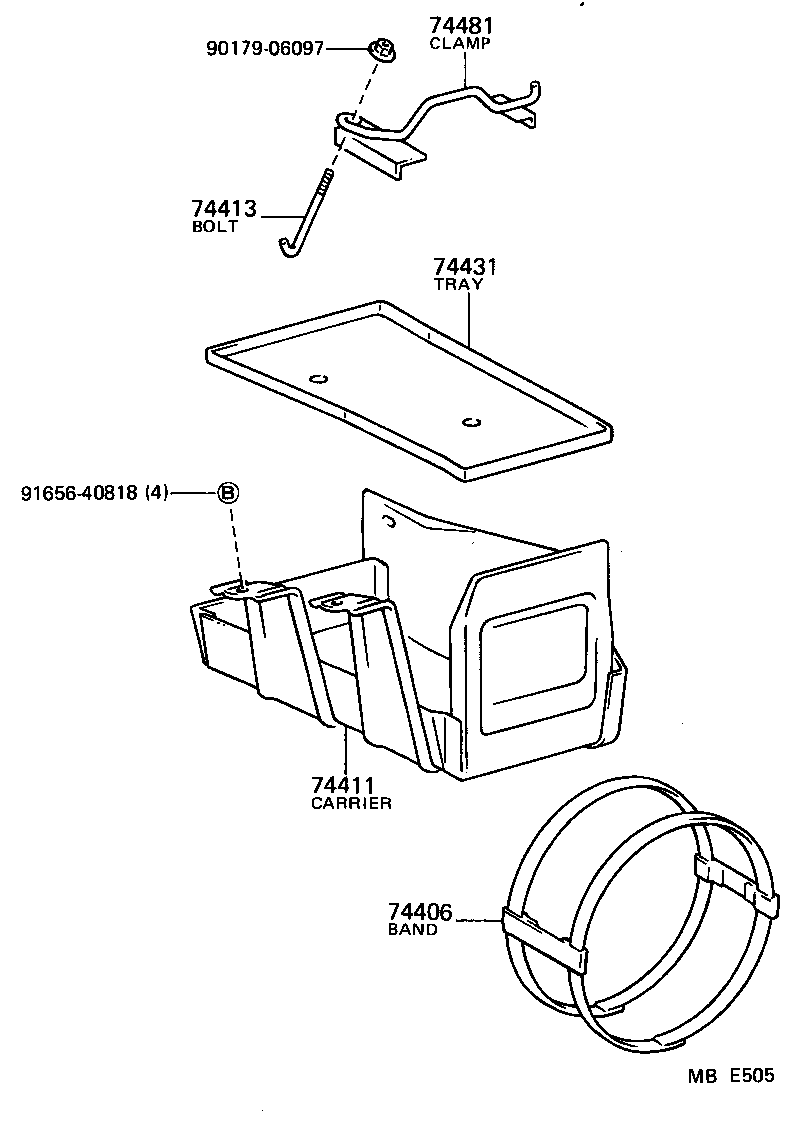

Battery Carrier
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74403 | Support Sub-assy, Battery Carrier |
| 74406 | Belt Sub-assy, Battery |
| 74411 | Carrier, Battery |
| 74413 | Bolt, Battery Clamp |
| 74414 | Bracket, Battery, FR |
| 74415 | Bracket, Battery, Rear |
| 74421 | Hanger, Battery |
| 74431 | Tray, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
