Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

21 part groups · 3 illustrations

Illustrations

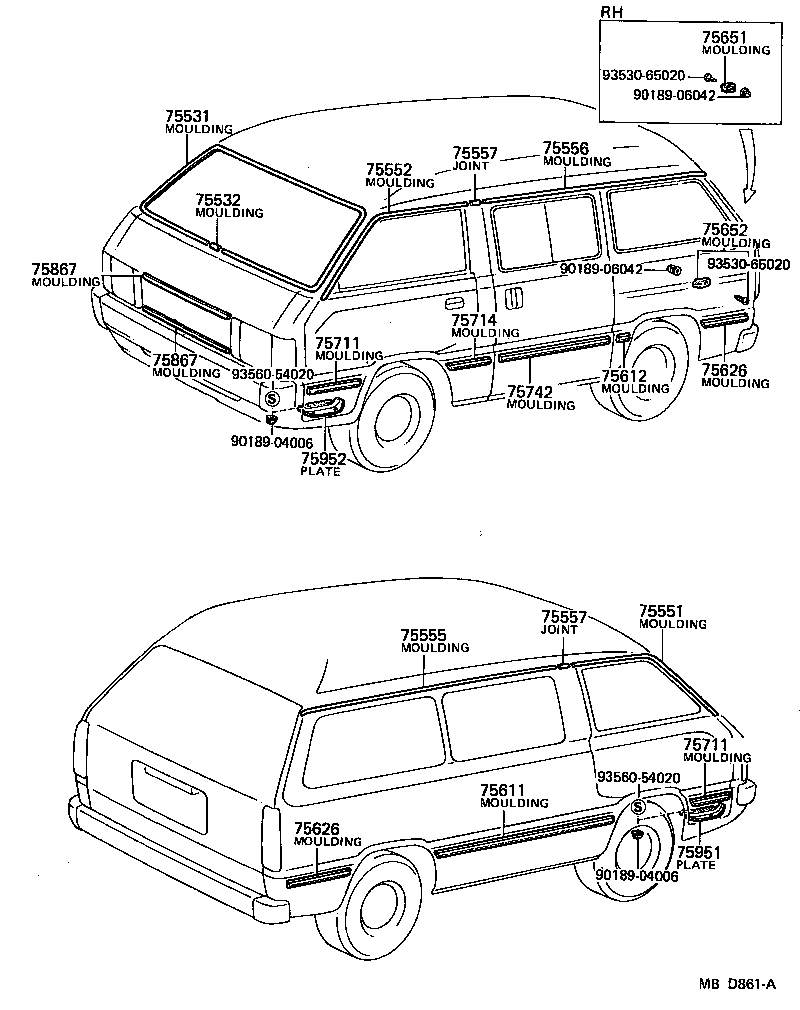

Figure MBA865E MBA865E 1979-10 → — Figure MBD861A MBD861A 1982-04 → — Figure MBD861A MBD861A 1983-11 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75532 Moulding, Windshield, Lower
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75557 Joint, Roof Drip Side Finish Moulding
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75611 Moulding, Side Panel Front, RH
75612 Moulding, Side Panel Front, LH
75626 Moulding, Side Panel, Rear
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75711 Moulding, Front Door Outside, NO.1
75714 Moulding, Center Pillar
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75867 Moulding, Front Panel
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
