Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

13 part groups · 3 illustrations

Illustrations

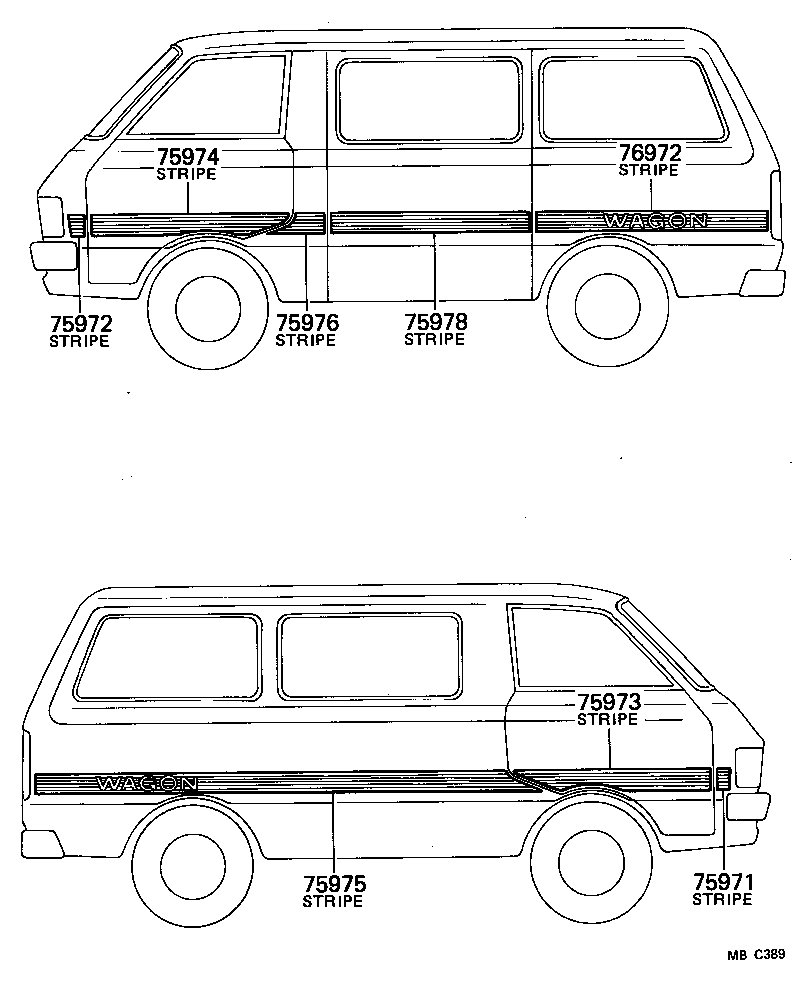

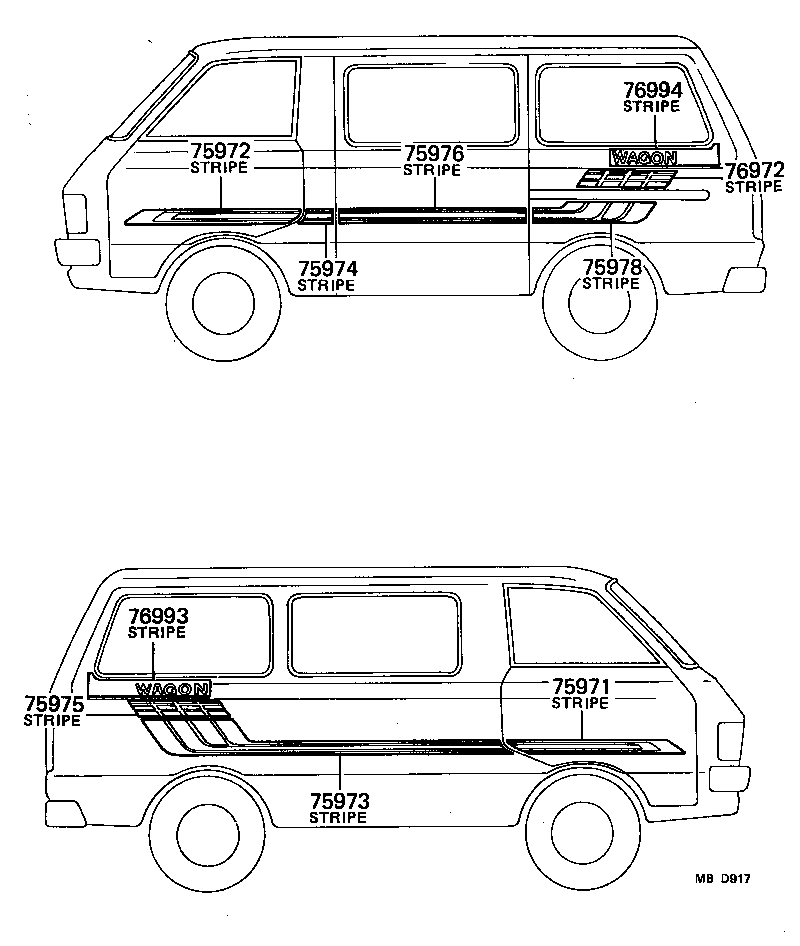

Figure MBD505 MBD505 1981-11 → — Figure MBD917 MBD917 1982-04 → 1983-11 Figure MBC389 MBC389 1983-11 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75971B Stripe, Side, RH NO.1 (FOR CENTER)
75972 Stripe, Side, LH NO.1
75972B Stripe, Side, LH NO.1 (FOR CENTER)
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
76972 Stripe, Quarter, Rear LH
76993 Stripe, Side Mark, RH NO.2
76994 Stripe, Side Mark, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
