Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 4 illustrations

Illustrations

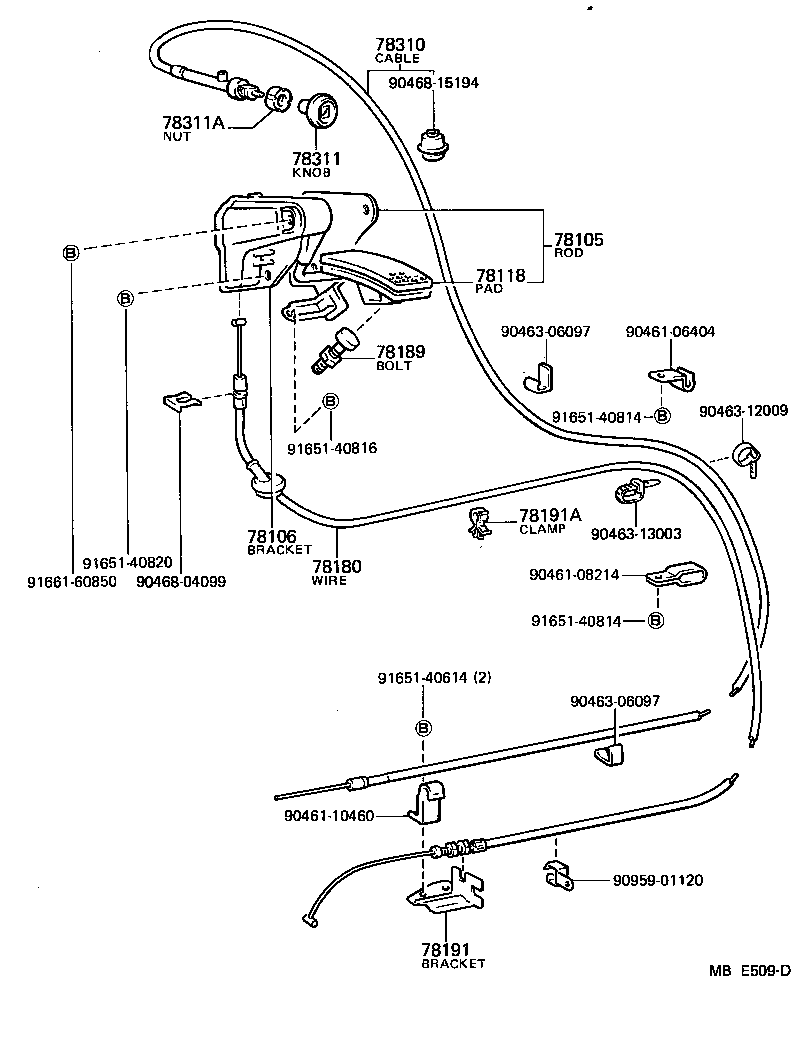

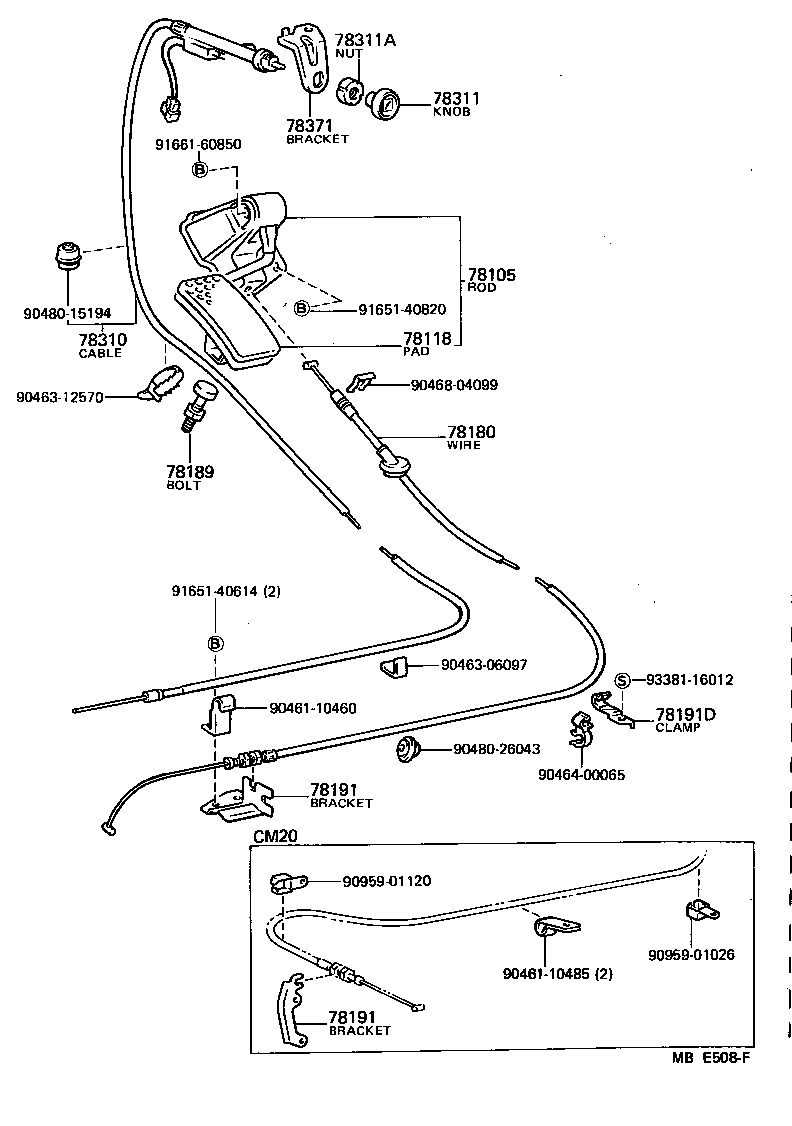

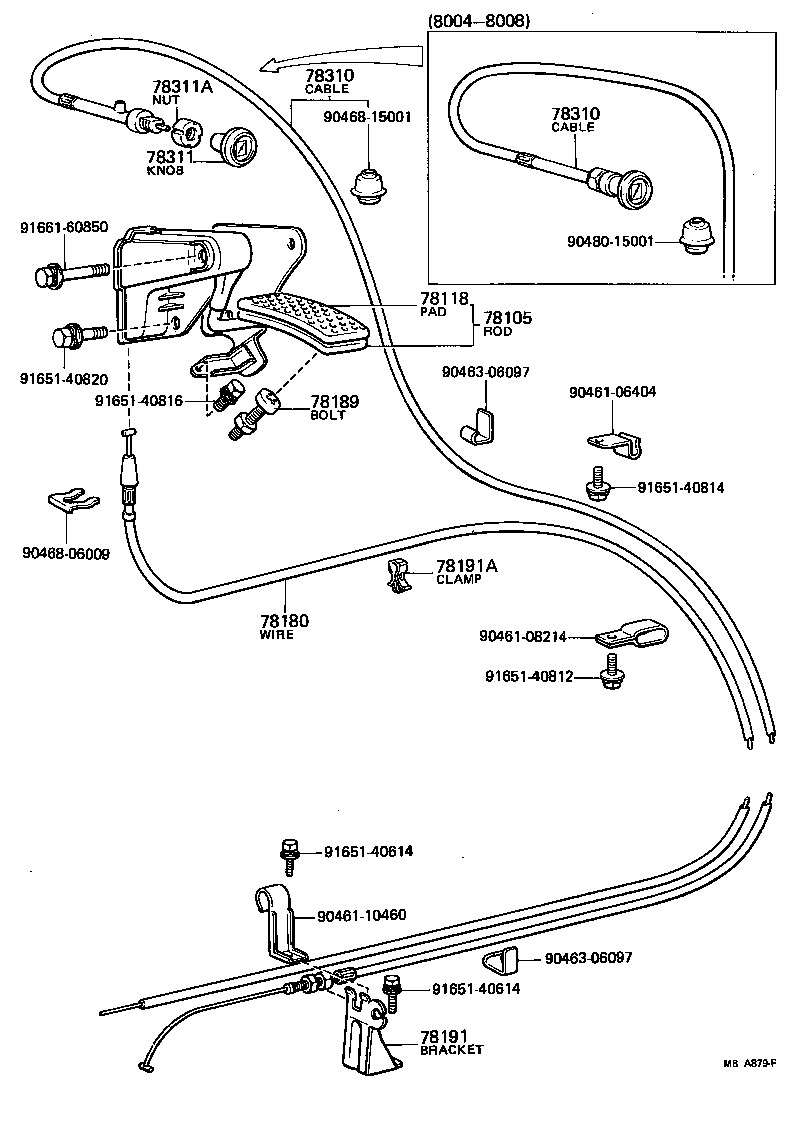

Figure MBA878D MBA878D 1979-10 → 1982-10 Figure MBA879F MBA879F 1979-10 → 1982-10 Figure MBE508F MBE508F 1982-10 → — Figure MBE509D MBE509D 1982-10 → —

Part groups

PNCDescription
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78106 Bracket Sub-assy, Accelerator Pedal Support
78118 Pad, Accelerator Pedal
78180 Wire Assy, Accelerator
78189 Bolt, Accelerator Pedal Stopper
78191 Bracket, Accelerator Wire Support
78191A Clamp (FOR ACCELERATOR WIRE SET)
78191D Clamp, Accelerator Control Cable
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78371 Bracket, Choke Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
