Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 8 illustrations

Illustrations

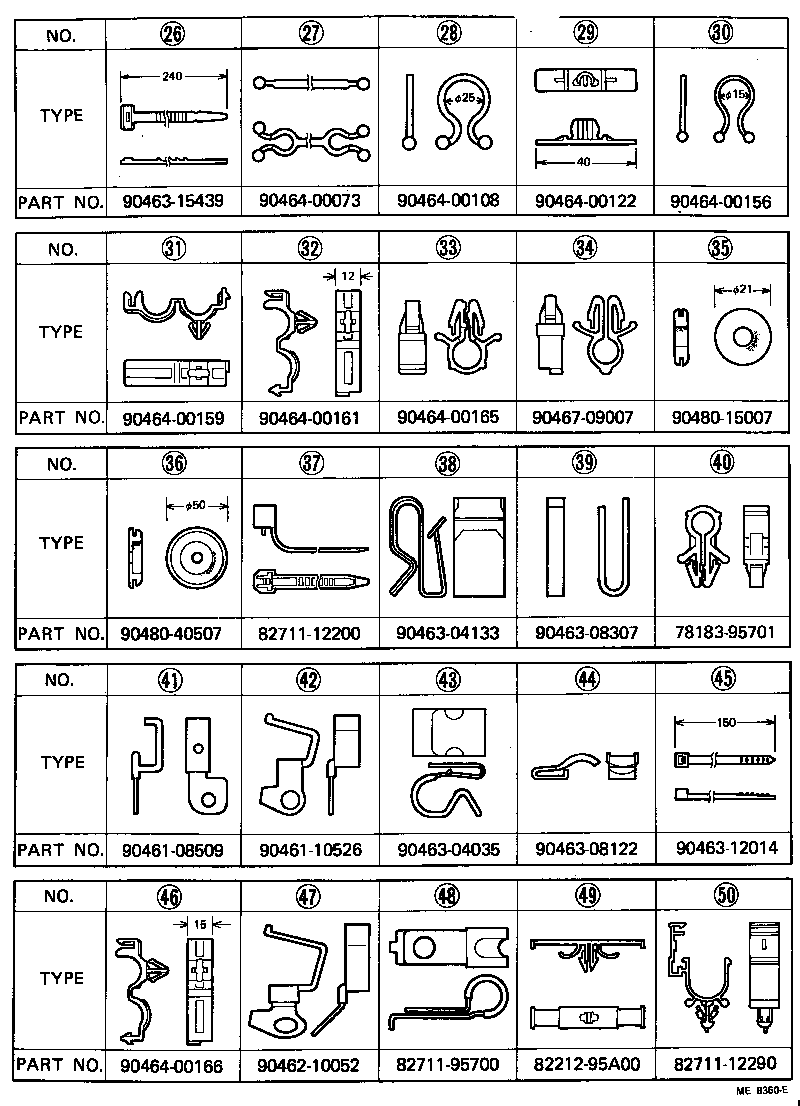

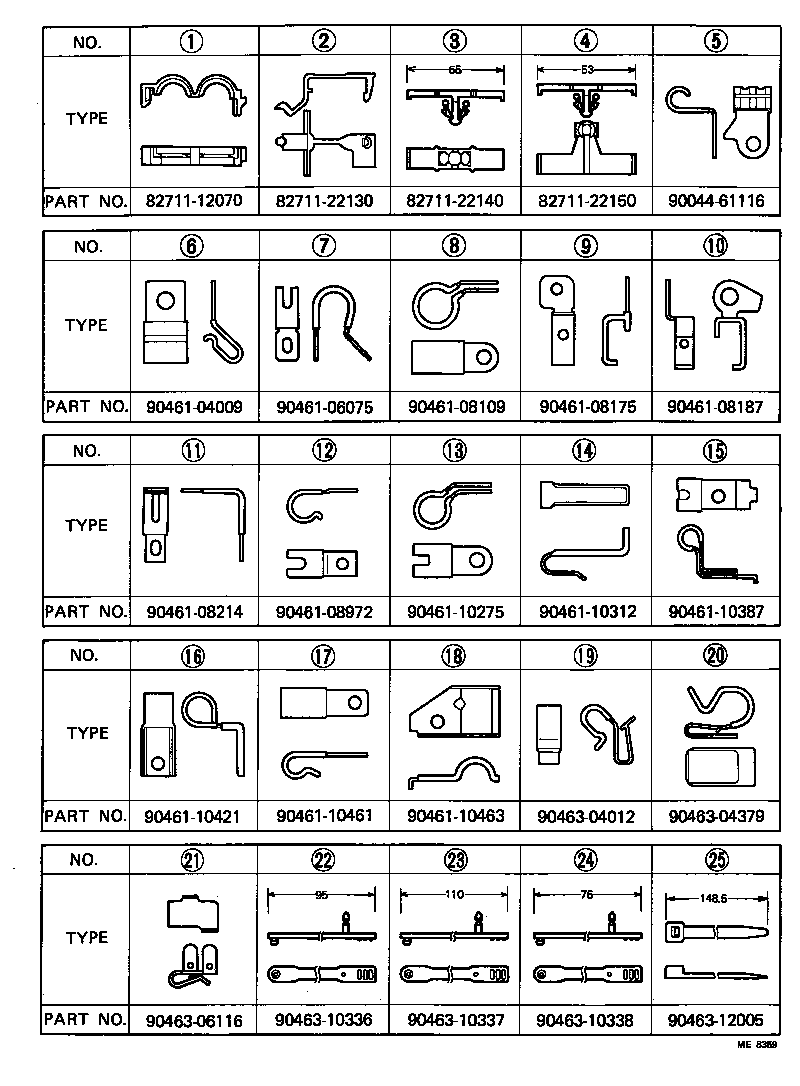

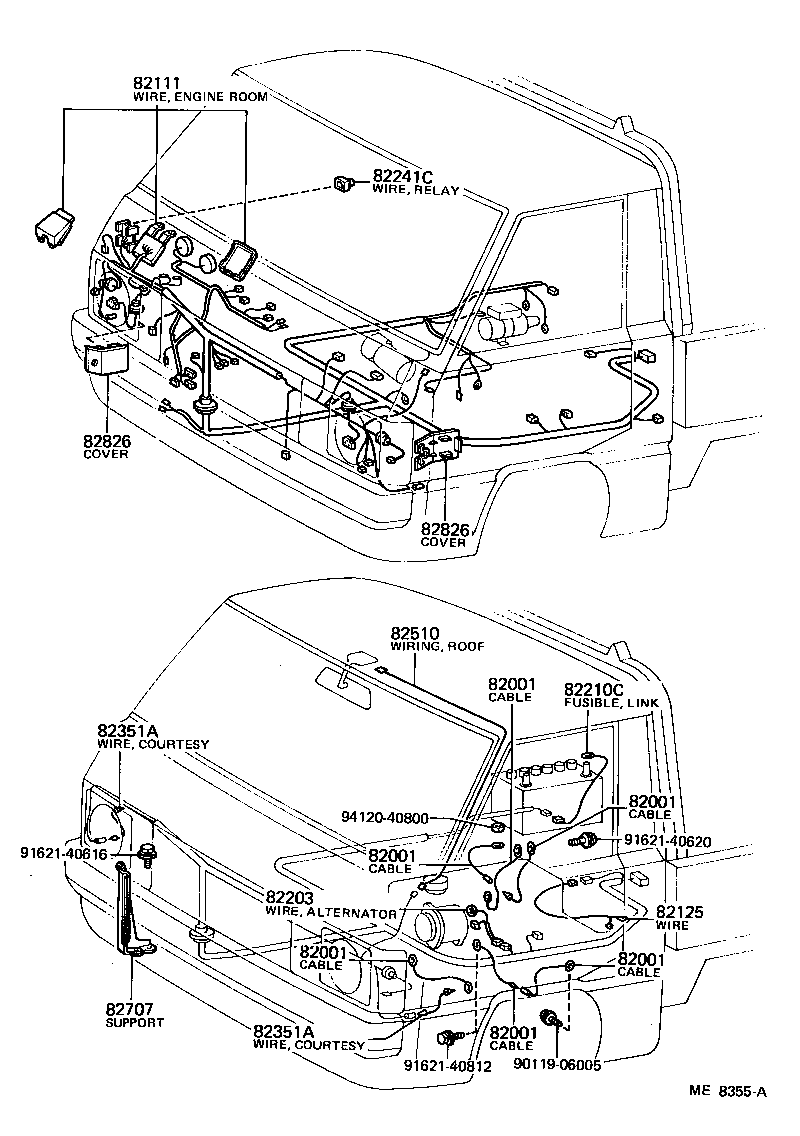

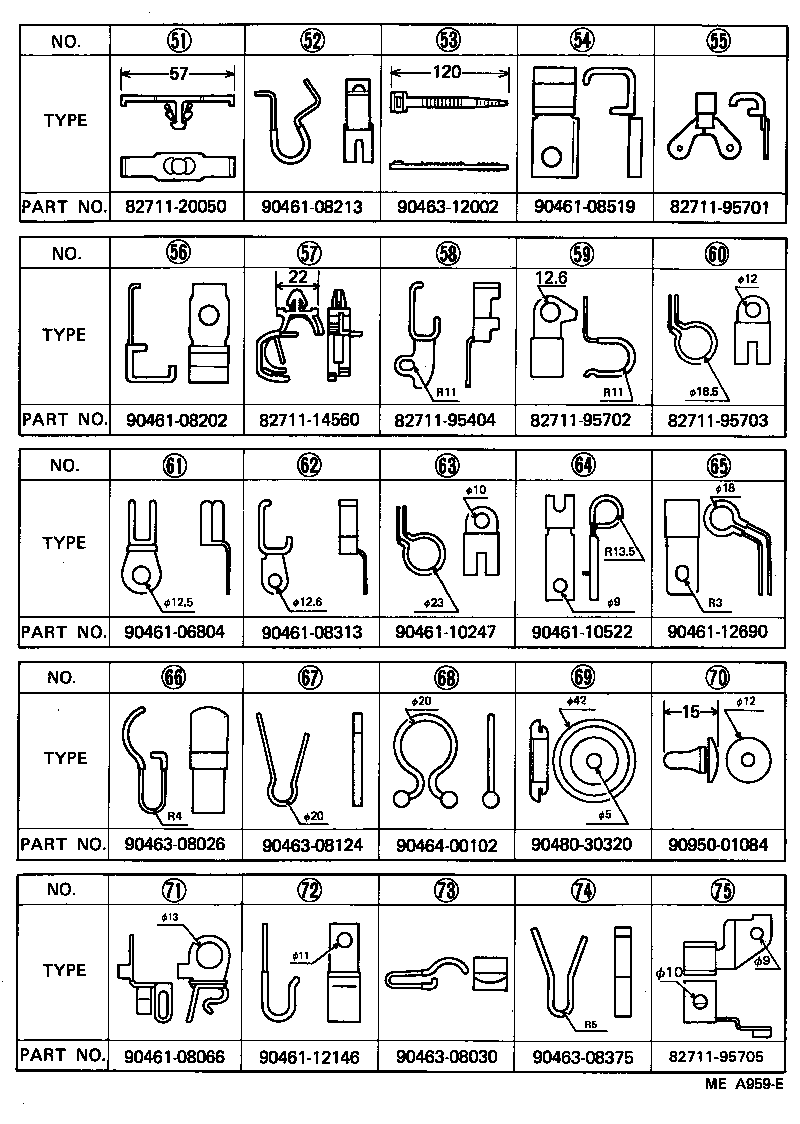

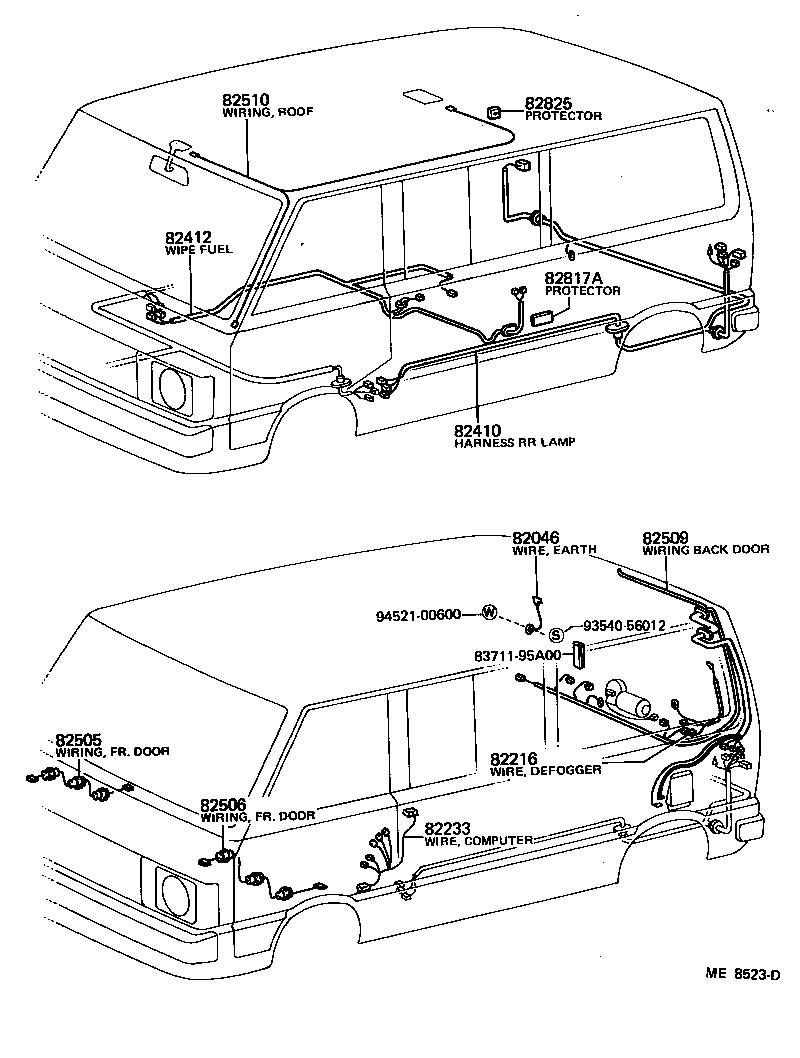

Figure ME8354G ME8354G 1979-10 → — Figure ME8355A ME8355A 1979-10 → 1982-10 Figure ME8523D ME8523D 1979-10 → — Figure ME8358 ME8358 1979-10 → 1982-10 Figure ME8359 ME8359 1979-10 → — Figure ME8360E ME8360E 1979-10 → — Figure MEA959E MEA959E 1979-10 → — Figure MED254B MED254B 1979-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82210D Fusible Link
82216 Wire, Rear Window Defogger
82233 Wire, Computer
82241C Wire, Relay
82284 Wire, Earth
82342 Wire, Clock
82351A Wire, Courtesy Lamp Switch (FOR FRONT OR REAR DOOR)
82374 Wire, Washer
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82671 Block, Junction
82673 Bracket, Junction Block
82707 Support Sub-assy, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82825 Protector, Wiring Harness
82826 Cover, Wiring Harness Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
