Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

11 part groups · 3 illustrations

Illustrations

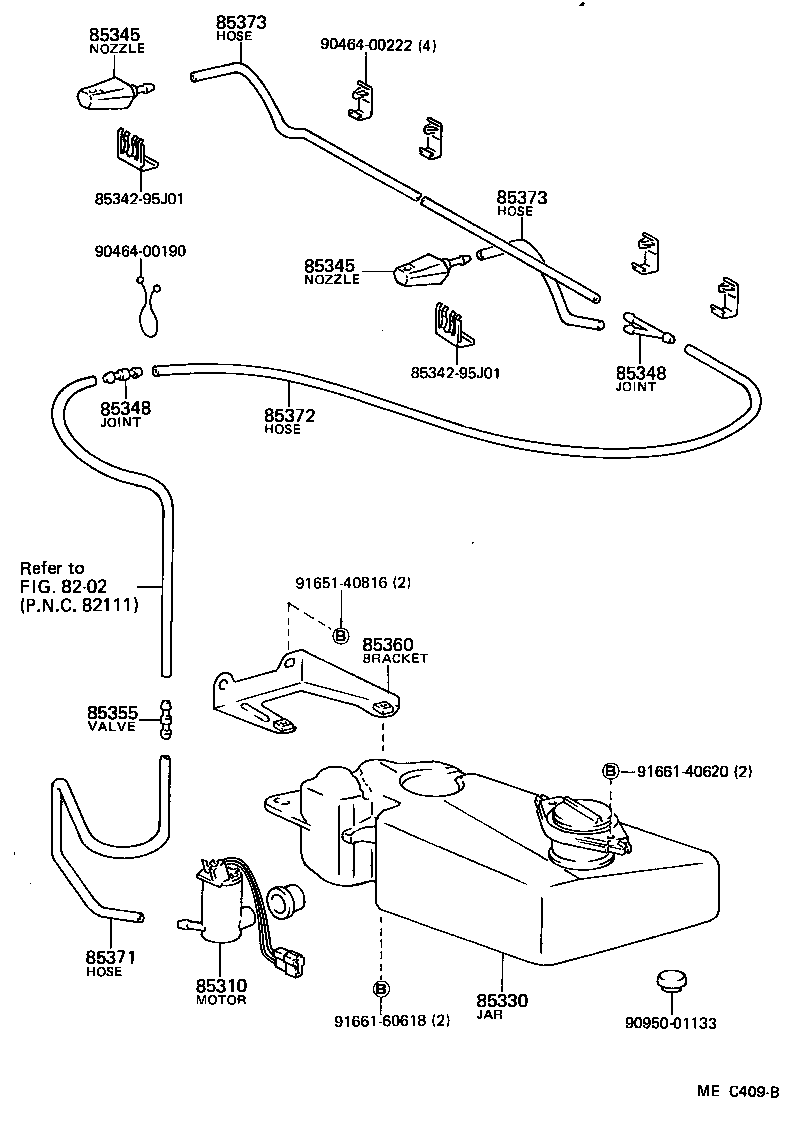

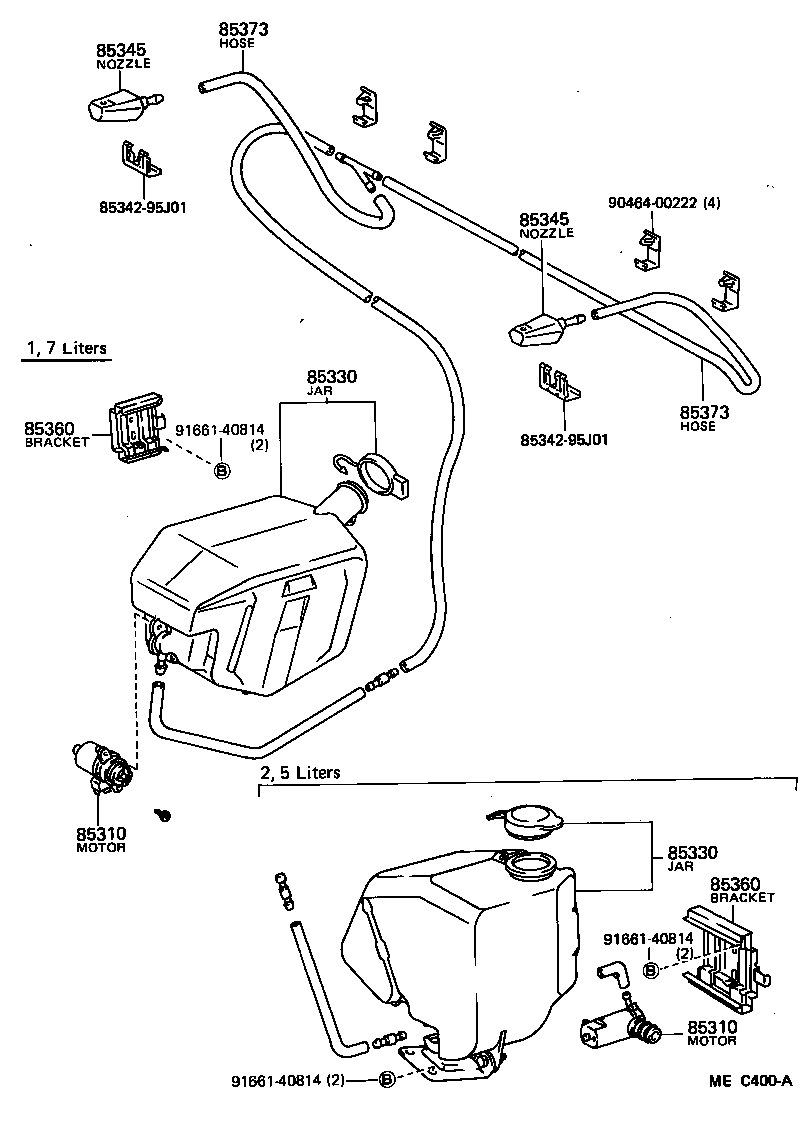

Figure ME8400D ME8400D 1979-10 → 1982-10 Figure MEC409B MEC409B 1982-10 → — Figure MEC400A MEC400A 1982-10 → —

Part groups

PNCDescription
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85360 Bracket Assy, Windshield Washer
85361A Bracket, Windshield Washer, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
