Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

25 part groups · 9 illustrations

Illustrations

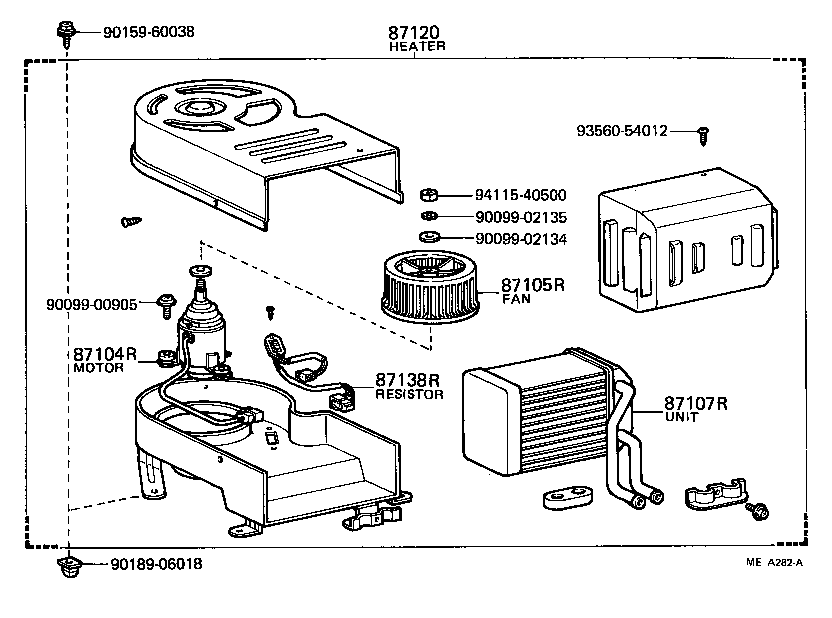

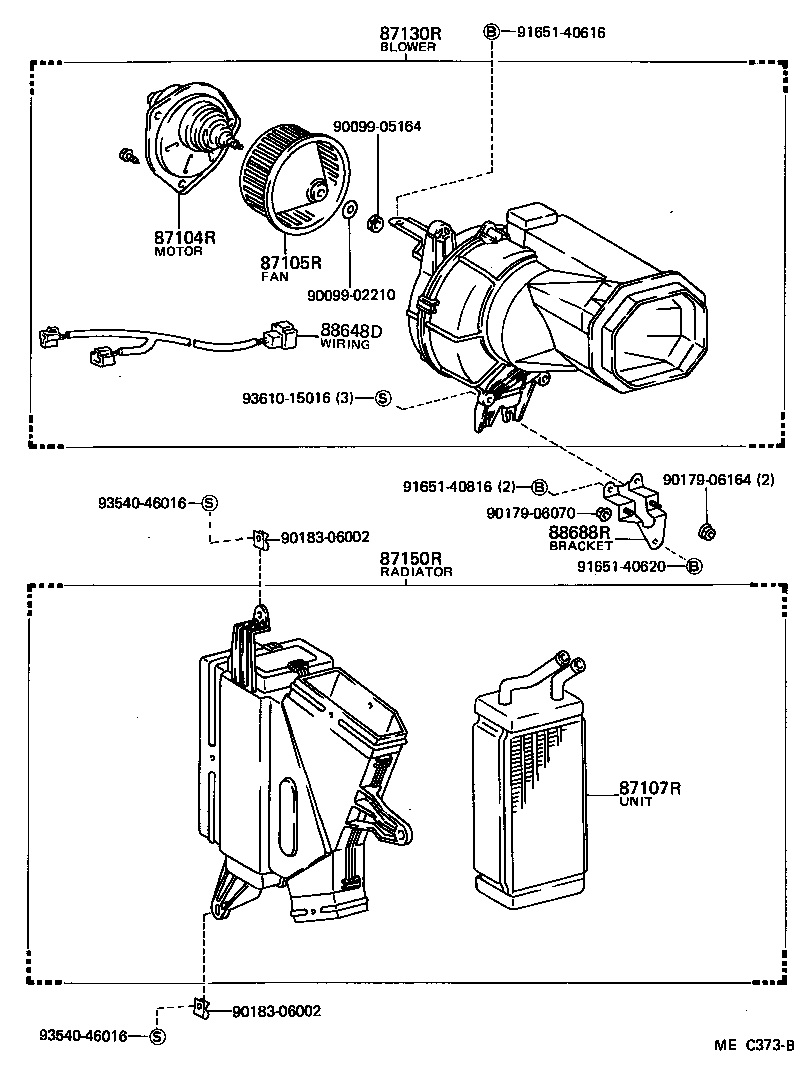

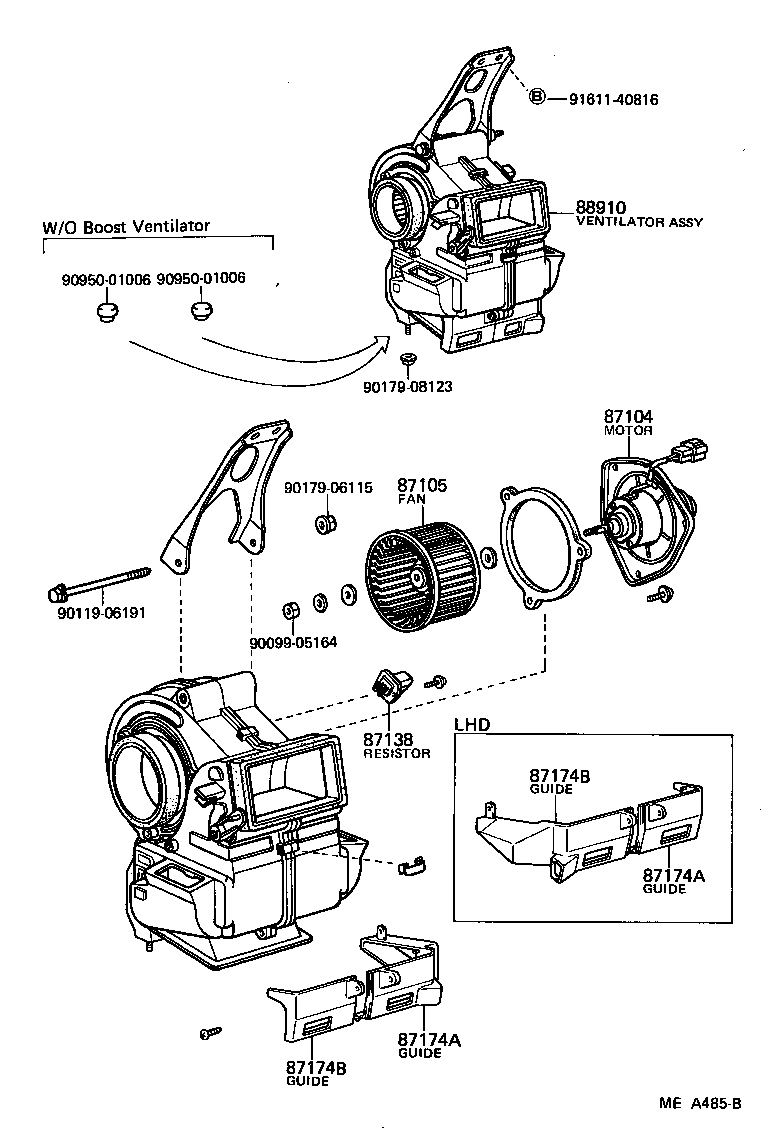

Figure ME8404C ME8404C 1979-10 → 1982-10 Figure ME8404C ME8404C 1982-10 → — Figure MEC401 MEC401 1982-10 → — Figure MEA485B MEA485B 1979-10 → 1982-10 Figure MEA485B MEA485B 1982-10 → — Figure MEC402 MEC402 1982-10 → — Figure MEC403B MEC403B 1982-10 → — Figure MEA282A MEA282A 1981-01 → — Figure MEC373B MEC373B 1983-11 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87115 Cover, Motor
87120 Heater Assy, Rear
87121 Bracket, Heater, Front RH
87130 Blower Assy, Heater, Front
87130R Blower Assy, Rear Heater
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87150R Radiator Assy, Rear Heater
87174A Guide, Air Heater
87174B Guide, Air, NO.2
87188 Packing, Heater Blower Motor
87230A Duct Assy, Heater Air
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
88648D Wiring, Blower Moter
88688R Bracket (FOR REAR HEATER)
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
