Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

14 part groups · 3 illustrations

Illustrations

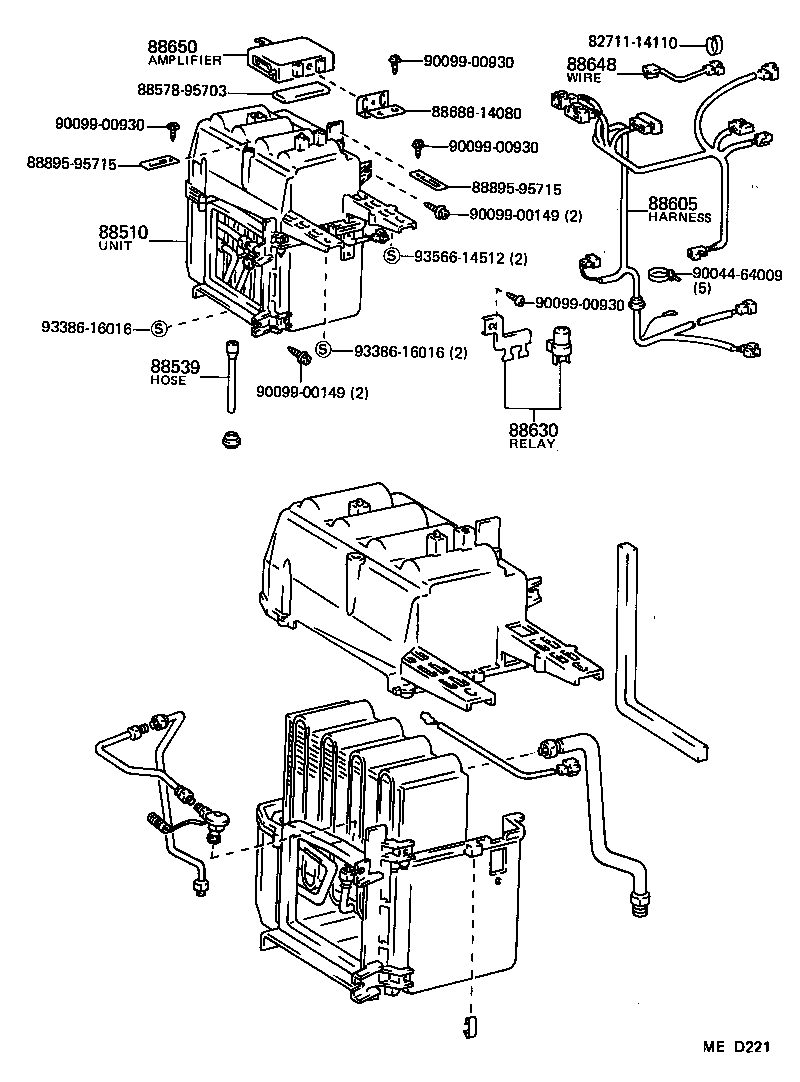

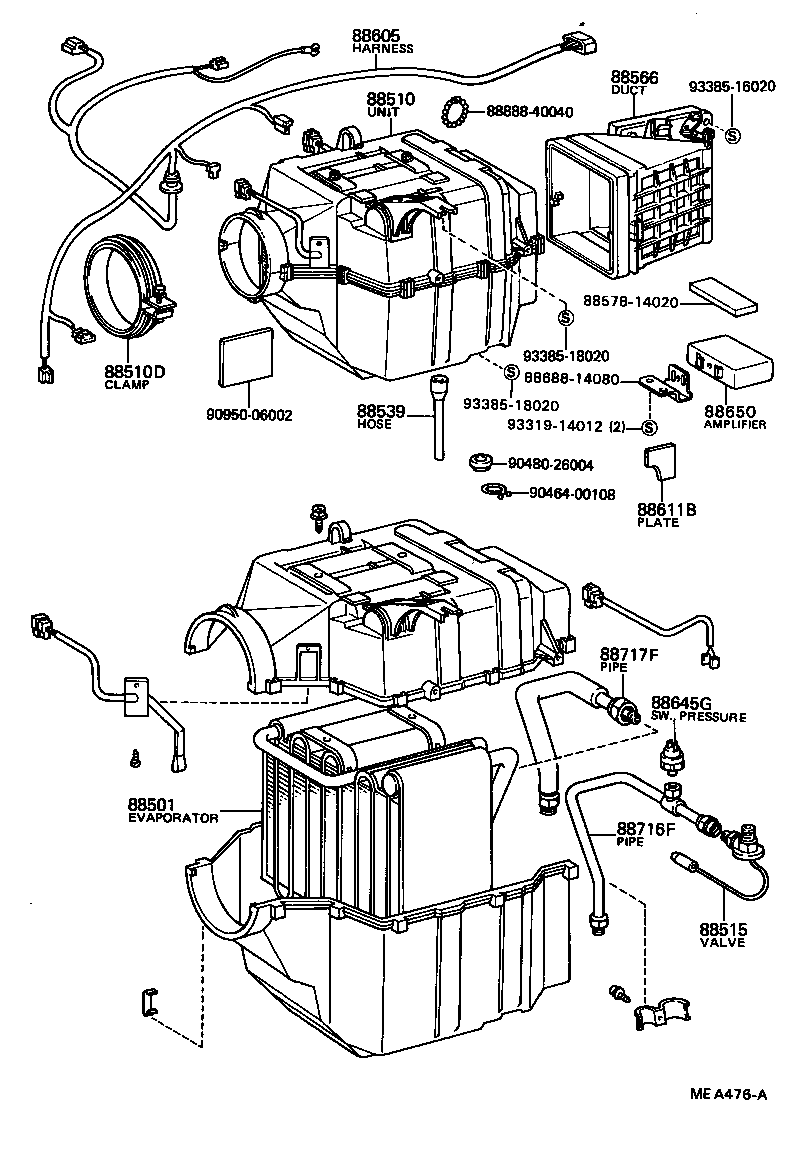

Figure MEA475A MEA475A 1981-01 → 1982-10 Figure MEA476A MEA476A 1981-01 → — Figure MED221 MED221 1982-10 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88510D Clamp, Cooler Unit
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88611B Plate, Cooler Control Switch
88630 Relay Assy, Cooler
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88717F Pipe, Cooler Refrigerant Suction, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
