Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

33 part groups · 4 illustrations

Illustrations

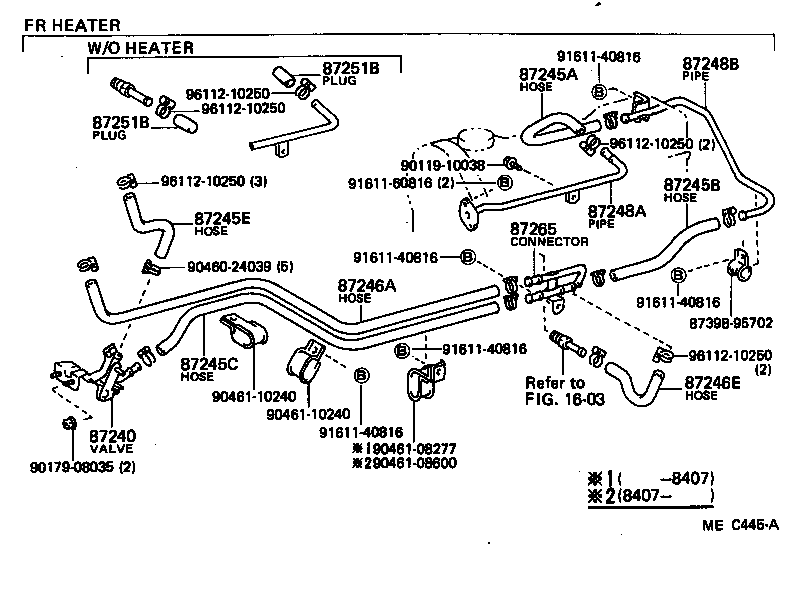

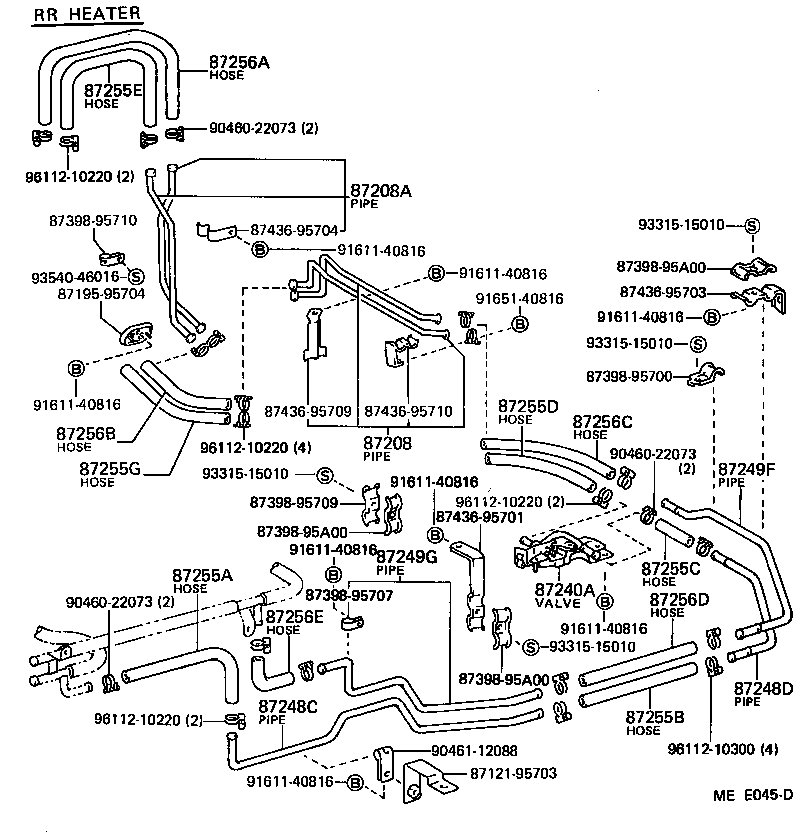

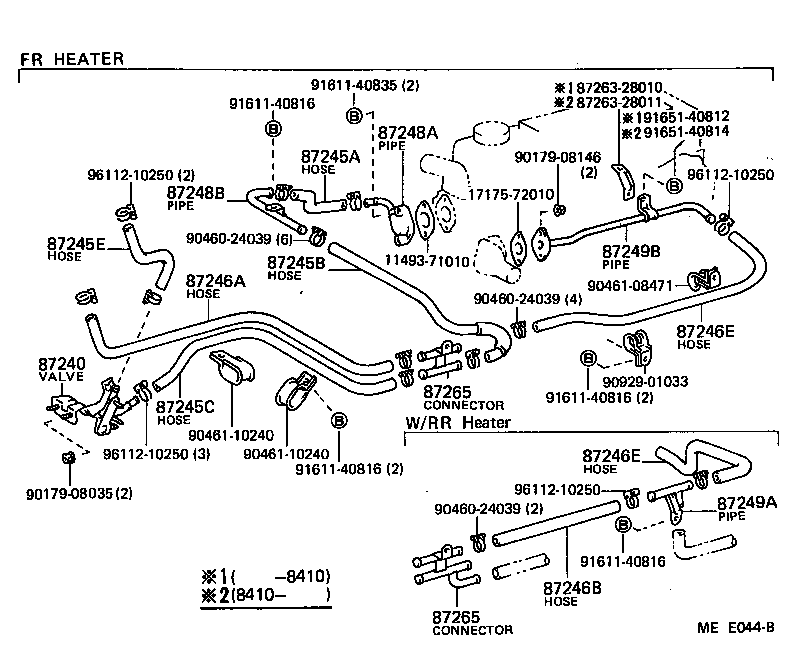

Figure ME8403B ME8403B 1979-10 → — Figure MEC445A MEC445A 1982-10 → — Figure MEE044B MEE044B 1983-11 → — Figure MEE045D MEE045D 1983-11 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255G Hose, Rear Heater Water Inlet, G
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
