Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · Europe

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

23 part groups · 5 illustrations

Illustrations

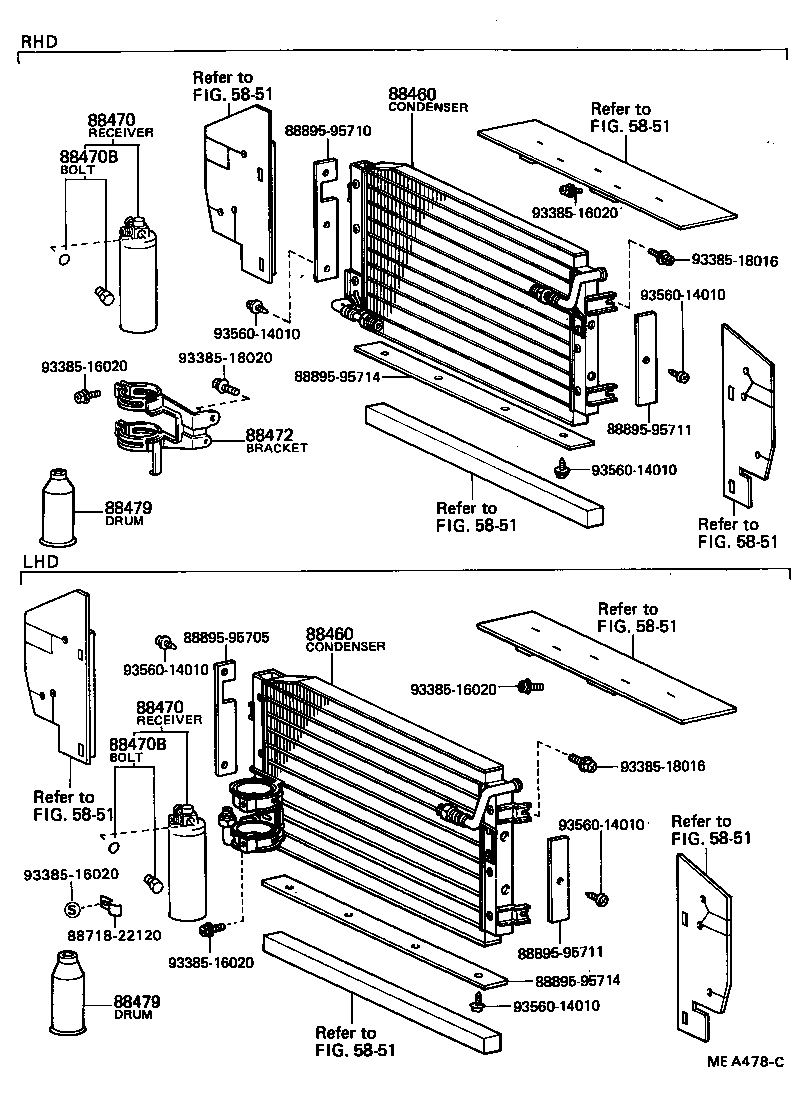

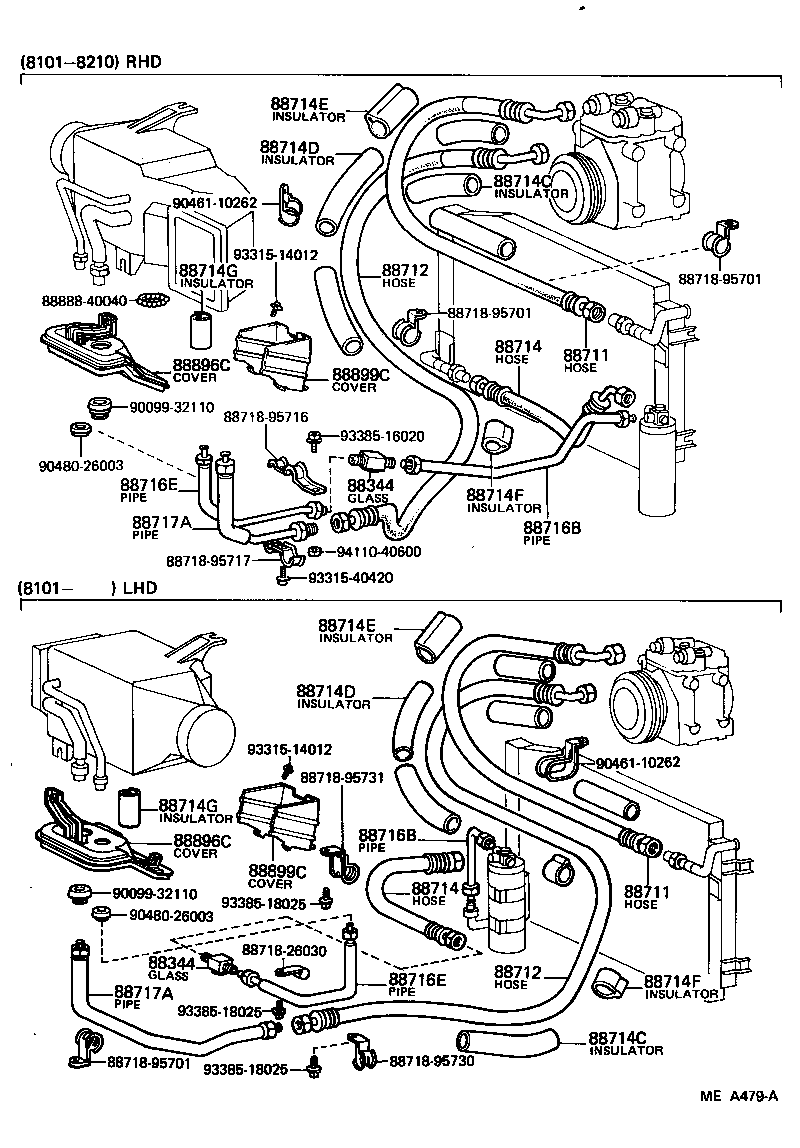

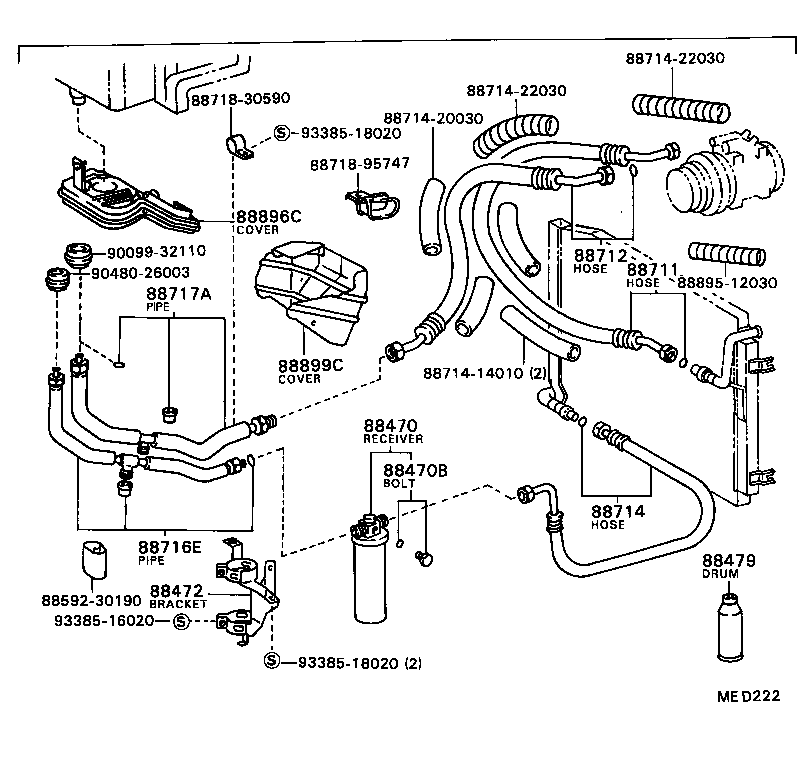

Figure MEA477A MEA477A 1981-01 → — Figure MEA478C MEA478C 1981-01 → — Figure MEA479A MEA479A 1981-01 → 1982-10 Figure MEA479A MEA479A 1982-10 → — Figure MED222 MED222 1982-10 → —

Part groups

PNCDescription
87690C Filter Assy, Gas
88031 Actuator Set, Idle-up
88344 Glass Sub-assy, Sight
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88714D Insulator, Cooler Refrigerant Hose, NO.2
88714E Insulator, Cooler Refrigerant Hose, NO.3
88714F Insulator, Cooler Refrigerant Hose, NO.4
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88896C Cover, Cooler Refrigerant Pipe, NO.1
88899C Cover, Cooler Refrigerant Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
