Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

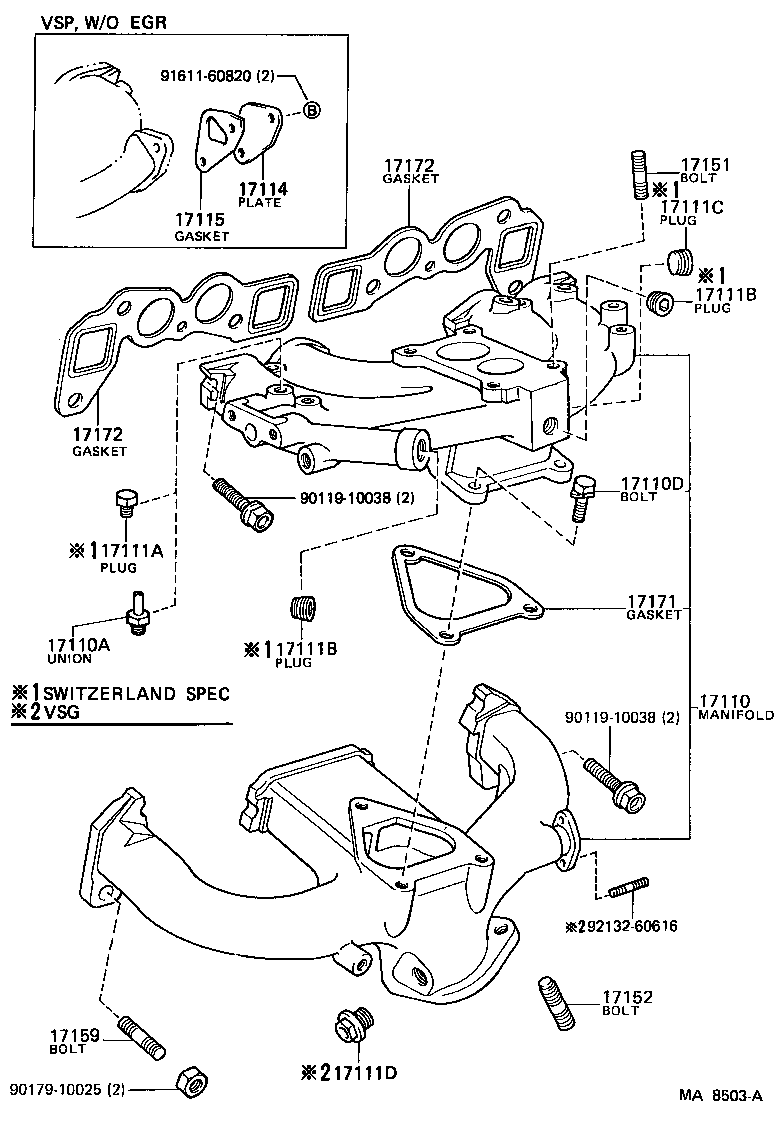

Exploded illustration MA8503A 9161160820 — not listed in this catalogue 17151 — BOLT, STUD(FOR MANIFOLD TO CARBURETOR) (1 parts) 17172 — GASKET, MANIFOLD TO CYLINDER HEAD (1 parts) 17114 — PLATE, INTAKE MANIFOLD HOLE COVER (2 parts) 17111C — PLUG, NO.3 (2 parts) 17115 — GASKET, INTAKE MANIFOLD HOLE COVER (2 parts) 17111B — PLUG, NO.2 (2 parts) 17172 — GASKET, MANIFOLD TO CYLINDER HEAD (1 parts) 17110D — BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD) (1 parts) 9011910038 — not listed in this catalogue 17111A — PLUG, NO.1 (1 parts) 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (1 parts) 17110A — UNION, VACUUM HOSE (1 parts) 17111B — PLUG, NO.2 (2 parts) 17110 — MANIFOLD ASSY (5 parts) 9011910038 — not listed in this catalogue 9213260616 — not listed in this catalogue 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (3 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (3 parts) 17111D — PLUG, NO.4 (2 parts) 9017910025 — not listed in this catalogue
MA8503A · 16 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
17110 — Manifold Assy
17110-13140 note Manifold Assy
1985-10 → 1988-08 ended
5K KM36 5F;5K KM30 +1 —
17110-13150 Manifold Assy
1986-08 → 1988-08 ended
5K KM36 05S —
17110-13150 Manifold Assy
1985-10 → 1986-08 ended
5K KM31,36 05S —
17110-13160 Manifold Assy
1985-10 → 1988-08 ended
5K KM30,36 02S,08S —
17110-13160 note Manifold Assy
1985-10 → 1988-08 ended
5K KM36 4F 05S —
17110A — Union, Vacuum Hose
90404-51010 Union, Vacuum Hose
1985-10 → 1988-08 ended
5K KM3# —
17110D — Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-60822 Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
1985-10 → 1988-08 ended
5K KM3# —
17111A — Plug, NO.1
90345-51025 note Plug, NO.1
1985-10 → 1988-08 ended
5K KM36 5F;5K KM30 +1 —
17111B — Plug, NO.2
90344-52003 note Plug, NO.2
1987-05 → 1988-08 ended
5K KM36 5F;5K KM30 +1 —
90344-52013 note Plug, NO.2
1985-10 → 1987-05 ended
5K KM36 5F;5K KM30 +1 —
17111C — Plug, NO.3
90344-52003 note Plug, NO.3
1987-05 → 1988-08 ended
5K KM36 5F;5K KM30 +1 —
90344-52013 note Plug, NO.3
1985-10 → 1987-05 ended
5K KM36 5F;5K KM30 +1 —
17111D — Plug, NO.4
90341-18063 Plug, NO.4
1986-08 → 1988-08 ended
5K KM36 05S —
90341-18063 Plug, NO.4
1985-10 → 1986-08 ended
5K KM31,36 05S —
17114 — Plate, Intake Manifold Hole Cover
11495-13020 Plate, Intake Manifold Hole Cover
1985-10 → 1988-08 ended
5K KM30,36 02S,08S —
11495-13020 note Plate, Intake Manifold Hole Cover
1985-10 → 1988-08 ended
5K KM36 4F 05S —
17115 — Gasket, Intake Manifold Hole Cover
25627-13020 Gasket, Intake Manifold Hole Cover
1985-10 → 1988-08 ended
5K KM30,36 02S,08S —
25627-13020 note Gasket, Intake Manifold Hole Cover
1985-10 → 1988-08 ended
5K KM36 4F 05S —
17151 — Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
90116-08010 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1985-10 → 1988-08 ended
5K KM3# —
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10056 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1985-10 → 1987-05 ended
5K KM3# —
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1985-10 → 1988-08 ended
1C CM35 —
90116-10087 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1987-05 → 1988-08 ended
5K KM3# —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-10095 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1985-10 → 1988-08 ended
1C CM35 —
92122-41028 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1985-10 → 1988-08 ended
5K KM3# —
92122-60820 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1985-10 → 1988-08 ended
1C CM35 —
17171 — Gasket, Intake TO Exhaust Manifold
17171-13040 Gasket, Intake TO Exhaust Manifold
1985-10 → 1988-08 ended
5K KM3# —
17172 — Gasket, Manifold TO Cylinder Head
17172-13021 Gasket, Manifold TO Cylinder Head
1985-10 → 1988-08 ended
5K KM3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
