Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

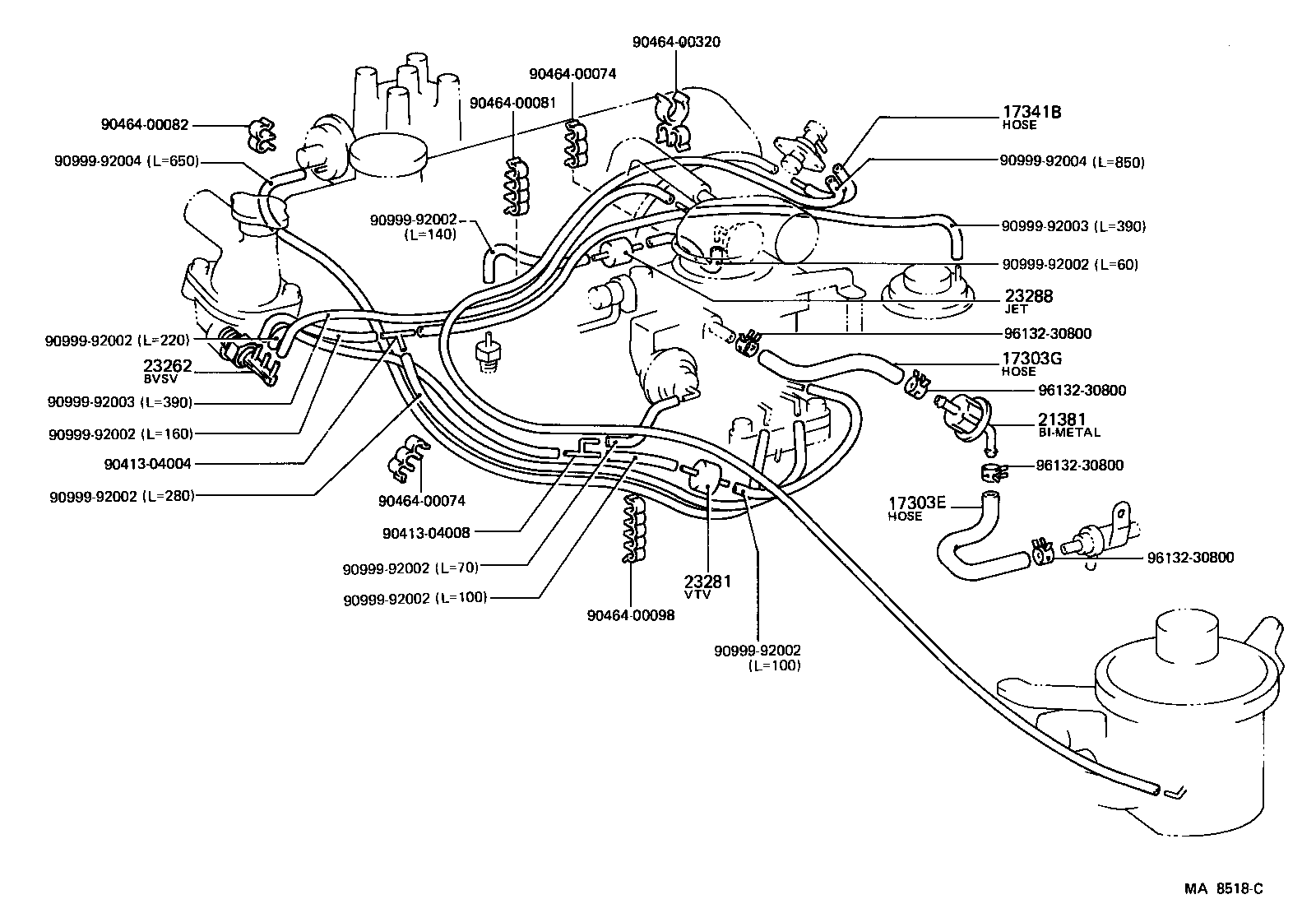

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17303E — Hose, NO.1(FOR AIR PIPE) | ||||
| 23829-13040 |
Hose, NO.1(FOR AIR PIPE)
1985-10 → 1988-08
ended
|
5K KM3# LHD | — | |
| 90445-14069 |
Hose, NO.1(FOR AIR PIPE)
1985-10 → 1988-08
ended
|
5K KM36 RHD | — | |
| 17303G — Hose, NO.3(FOR AIR PIPE) | ||||
| 23826-13030 |
Hose, NO.3(FOR AIR PIPE)
1985-10 → 1988-08
ended
|
5K KM36 RHD | — | |
| 23826-13040 |
Hose, NO.3(FOR AIR PIPE)
1985-10 → 1988-08
ended
|
5K KM3# LHD | — | |
| 17341B — Hose, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-10010 |
Hose, NO.1(FOR AIR INJECTION SYSTEM)
1985-10 → 1988-08
ended
|
5K KM3# | — | |
| 21381 — Bimetal, Thermostatic | ||||
| 21381-13030 |
Bimetal, Thermostatic
1985-10 → 1988-08
ended
|
5K KM3# | — | |
| 23262 — Valve, Bimetal Vacuum Switching, NO.1 | ||||
| 90925-05051 |
Valve, Bimetal Vacuum Switching, NO.1
1985-10 → 1988-08
ended
|
5K KM30,36 02S,08S | — | |
| 90925-05051 note |
Valve, Bimetal Vacuum Switching, NO.1
1985-10 → 1988-08
ended
|
5K KM36 4F 05S | — | |
| 90925-05063 |
Valve, Bimetal Vacuum Switching, NO.1
1985-10 → 1986-08
ended
|
5K KM31,36 05S | — | |
| 90925-05063 |
Valve, Bimetal Vacuum Switching, NO.1
1986-08 → 1988-08
ended
|
5K KM36 05S | — | |
| 23281 — Valve, Vacuum Transmitting, NO.1 | ||||
| 90925-01014 |
Valve, Vacuum Transmitting, NO.1
1985-10 → 1988-08
ended
|
5K KM3# | — | |
| 23288 — Jet, NO.1 | ||||
| 90925-04006 note |
Jet, NO.1
1985-10 → 1988-08
ended
|
5K KM3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
