Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

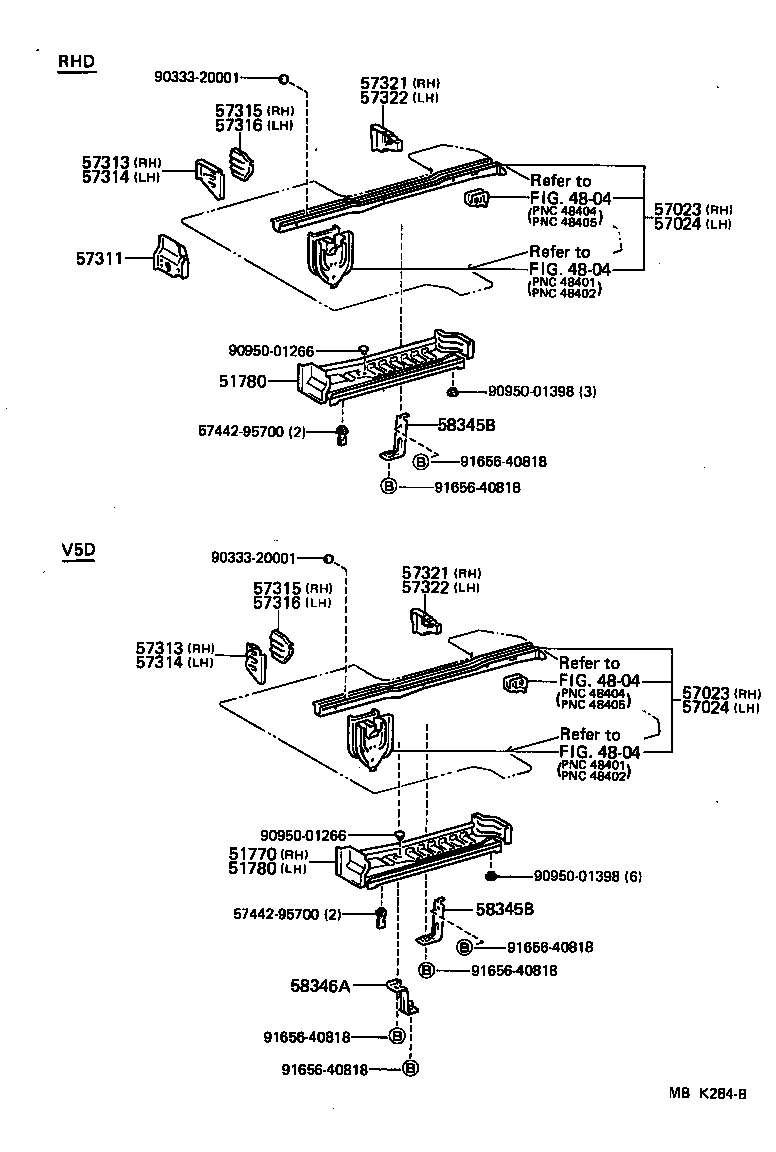

Exploded illustration MBK284B 9033320001 — not listed in this catalogue 57321 — OUTRIGGER, NO.4 RH (2 parts) 57322 — OUTRIGGER, NO.4 LH (2 parts) 57315 — OUTRIGGER, NO.3 RH (2 parts) 57316 — OUTRIGGER, NO.3 LH (2 parts) 57313 — OUTRIGGER, NO.2 RH (2 parts) 57314 — OUTRIGGER, NO.2 LH (2 parts) 4804 — not listed in this catalogue 57023 — MEMBER SUB-ASSY, REAR SIDE, RH (2 parts) 57024 — MEMBER SUB-ASSY, REAR SIDE, LH (2 parts) 57311 — OUTRIGGER, NO.1 RH (1 parts) 4804 — not listed in this catalogue 9095001266 — not listed in this catalogue 51780 — STEP ASSY, FRONT, LH (1 parts) 9095001398 — not listed in this catalogue 58345B — BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 (1 parts) 5744295700 — not listed in this catalogue 9165640818 — not listed in this catalogue 9165640818 — not listed in this catalogue 9033320001 — not listed in this catalogue 57321 — OUTRIGGER, NO.4 RH (2 parts) 57322 — OUTRIGGER, NO.4 LH (2 parts) 57315 — OUTRIGGER, NO.3 RH (2 parts) 57316 — OUTRIGGER, NO.3 LH (2 parts) 57313 — OUTRIGGER, NO.2 RH (2 parts) 57314 — OUTRIGGER, NO.2 LH (2 parts) 4804 — not listed in this catalogue 57023 — MEMBER SUB-ASSY, REAR SIDE, RH (2 parts) 57024 — MEMBER SUB-ASSY, REAR SIDE, LH (2 parts) 4804 — not listed in this catalogue 9095001266 — not listed in this catalogue 51770 — STEP ASSY, FRONT, RH (2 parts) 51780 — STEP ASSY, FRONT, LH (1 parts) 9095001398 — not listed in this catalogue 58345B — BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 (1 parts) 5744295700 — not listed in this catalogue 9165640818 — not listed in this catalogue 9165640818 — not listed in this catalogue 58346A — BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 (5 parts) 9165640818 — not listed in this catalogue 9165640818 — not listed in this catalogue
MBK284B · 23 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
51770 — Step Assy, Front, RH
51730-95701 Step Assy, Front, RH
1985-10 → 1988-08 ended
KM30 DLX —
51730-95703 Step Assy, Front, RH
1985-10 → 1988-08 ended
CM35,KM3# LHD STD —
51780 — Step Assy, Front, LH
51740-95704 Step Assy, Front, LH
1985-10 → 1988-08 ended
KM36 SRF;CM35,KM36 RHD —
57023 — Member Sub-assy, Rear Side, RH
57023-95712 Member Sub-assy, Rear Side, RH
1985-10 → 1988-08 ended
CM35,KM36 —
57023-95900 Member Sub-assy, Rear Side, RH
1985-10 → 1988-08 ended
KM30,31 —
57024 — Member Sub-assy, Rear Side, LH
57023-95901 Member Sub-assy, Rear Side, LH
1985-10 → 1988-08 ended
KM30,31 —
57024-95711 Member Sub-assy, Rear Side, LH
1985-10 → 1988-08 ended
CM35,KM36 —
57311 — Outrigger, NO.1 RH
57311-95710 Outrigger, NO.1 RH
1985-10 → 1988-08 ended
CM35,KM36 RHD —
57313 — Outrigger, NO.2 RH
57315-95707 Outrigger, NO.2 RH
1985-10 → 1988-08 ended
CM35,KM36 RHD —
57315-95708 Outrigger, NO.2 RH
1985-10 → 1988-08 ended
CM35,KM36 LHD —
57314 — Outrigger, NO.2 LH
57316-95706 Outrigger, NO.2 LH
1985-10 → 1988-08 ended
KM36 SRF;CM35,KM36 RHD —
57316-95707 Outrigger, NO.2 LH
1985-10 → 1988-08 ended
CM35,KM36 LHD MRF —
57315 — Outrigger, NO.3 RH
57333-95703 Outrigger, NO.3 RH
1985-10 → 1988-08 ended
CM35,KM36 —
57333-95704 Outrigger, NO.3 RH
1985-10 → 1988-08 ended
KM30,31 —
57316 — Outrigger, NO.3 LH
57334-95703 Outrigger, NO.3 LH
1985-10 → 1988-08 ended
CM35,KM36 —
57334-95704 Outrigger, NO.3 LH
1985-10 → 1988-08 ended
KM30,31 —
57321 — Outrigger, NO.4 RH
57307-95703 Outrigger, NO.4 RH
1985-10 → 1988-08 ended
CM35,KM3# —
57307-95705 note Outrigger, NO.4 RH
1986-08 → 1988-08 ended
CM35,KM36 —
57322 — Outrigger, NO.4 LH
57308-95703 Outrigger, NO.4 LH
1985-10 → 1988-08 ended
CM35,KM3# —
57308-95705 note Outrigger, NO.4 LH
1986-08 → 1988-08 ended
CM35,KM36 —
58345B — Bracket, Rear Floor Heat Insulator, NO.1
58345-95701 Bracket, Rear Floor Heat Insulator, NO.1
1985-10 → 1988-08 ended
KM3# —
58346A — Bracket, Rear Floor Heat Insulator, NO.2
58346-95700 Bracket, Rear Floor Heat Insulator, NO.2
1985-10 → 1988-08 ended
KM3# LHD —
58346-95701 note Bracket, Rear Floor Heat Insulator, NO.2
1986-08 → 1988-08 ended
KM30 DLX —
58346-95701 note Bracket, Rear Floor Heat Insulator, NO.2
1986-08 → 1988-08 ended
KM36 5F —
58346-95702 note Bracket, Rear Floor Heat Insulator, NO.2
1986-08 → 1988-08 ended
KM30 DLX —
58346-95702 note Bracket, Rear Floor Heat Insulator, NO.2
1986-08 → 1988-08 ended
KM36 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
