Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

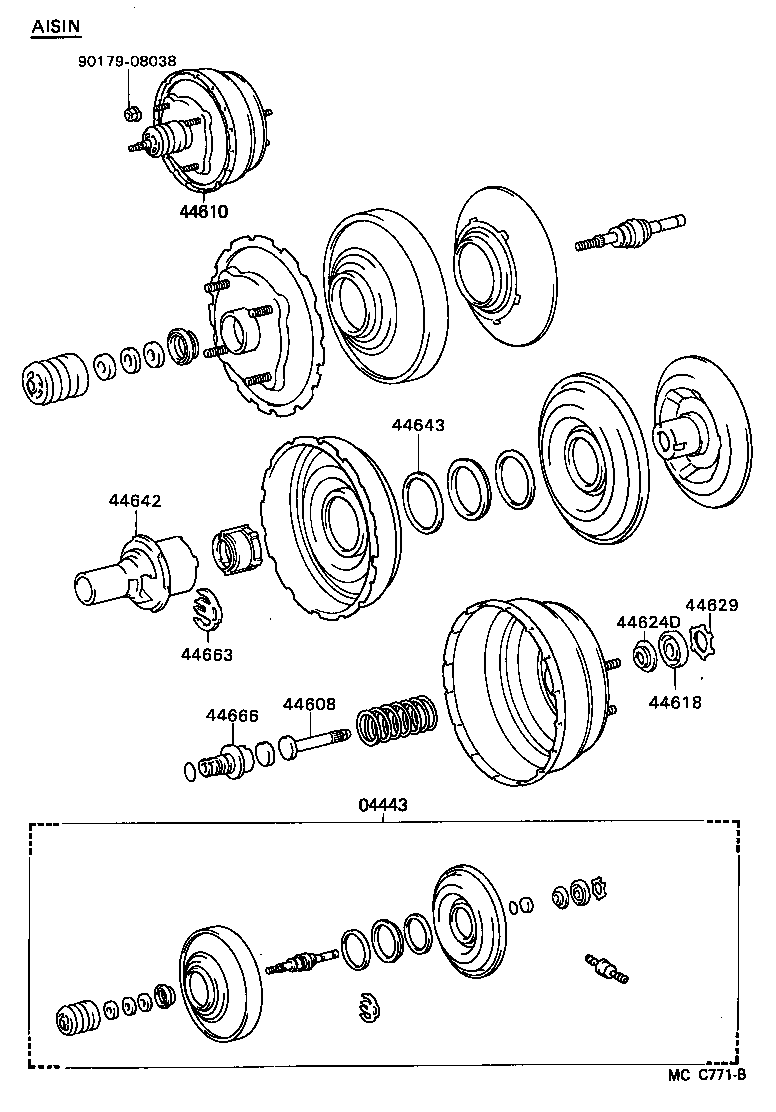

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04443 — Booster Kit, Brake | ||||
| 04443-27200 |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 RHD | — | |
| 04443-27210 |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 RHD | — | |
| 04443-27220 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;KM3# LHD +1 | — | |
| 04443-27230 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 LHD 5F | — | |
| 04443-27260 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;KM36 LHD +1 | — | |
| 04443-27270 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 LHD | — | |
| 04443-27300 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;KM3# LHD +1 | — | |
| 04443-27310 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 LHD 5F | — | |
| 44608 — Push Rod Sub-assy, Booster | ||||
| 44606-12520 |
Push Rod Sub-assy, Booster
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44606-20800 note |
Push Rod Sub-assy, Booster
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608-17090 note |
Push Rod Sub-assy, Booster
1987-09 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608-20810 note |
Push Rod Sub-assy, Booster
1985-10 → 1987-09
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608-32020 note |
Push Rod Sub-assy, Booster
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44610 — Booster Assy, Brake | ||||
| 44610-27240 |
Booster Assy, Brake
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44610-27250 note |
Booster Assy, Brake
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44610-27260 note |
Booster Assy, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44618 — Seal, Booster Body | ||||
| 44621-14030 note |
Seal, Booster Body
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44621-28120 |
Seal, Booster Body
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44624D — Retainer, Booster Seal | ||||
| 44626-60010 note |
Retainer, Booster Seal
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44629 — Ring, Circular Internal | ||||
| 44628-28120 |
Ring, Circular Internal
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44628-60010 note |
Ring, Circular Internal
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44642 — Piston, Brake Booster | ||||
| 44642-12520 |
Piston, Brake Booster
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44642-20800 note |
Piston, Brake Booster
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44643 — Retainer, Diaphragm | ||||
| 44643-20800 note |
Retainer, Diaphragm
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44663 — Key, Valve Stopper | ||||
| 44635-20800 note |
Key, Valve Stopper
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44635-28120 |
Key, Valve Stopper
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44666 — Case, Reaction Disc | ||||
| 44657-27260 note |
Case, Reaction Disc
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
